New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

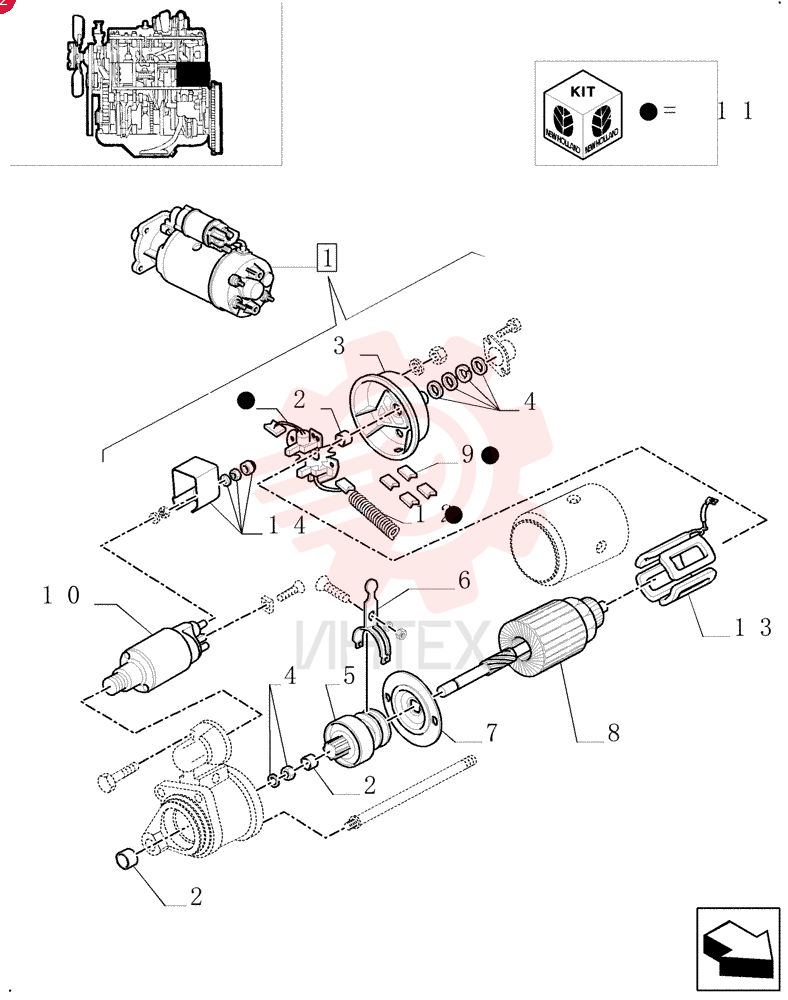

STARTER MOTOR,12V, 3.1kW 82005342 (2)

STARTER MOTOR,12V, 3.1kW 82005342 (2)

STARTER MOTOR,12V, 3.1kW 82005342 (2)

1 82005342

  • 82005342 - STARTER MOTOR
  • 12V
  • 3.1kW

2 82005342R

  • 82005342R - REMAN-STARTER
  • 12V
  • 3.1kW

3 82005342C

  • 82005342C - CORE-STARTER
  • 12V
  • 3.1kW

4 3055738R2

  • 3055738R2 - BUSHING

5 A186239

  • A186239 - COVER

6 86013251

  • 86013251 - COLLAR

7 86013253

  • 86013253 - DRIVING GEAR

8 81866061

  • 81866061 - LEVER

9 81866058

  • 81866058 - PLATE

10 86013252

  • 86013252 - ARMATURE

11 81866054

  • 81866054 - COMMUTATOR BRUSH

12 82009427

  • 82009427 - SOLENOID

13 9966624

  • 9966624 - BRUSH HOLDER

14 81866053

  • 81866053 - SPRING

15 86013257

  • 86013257 - ELECTRICAL WINDING

16 9969381

  • 9969381 - KIT
