New Holland Construction
/

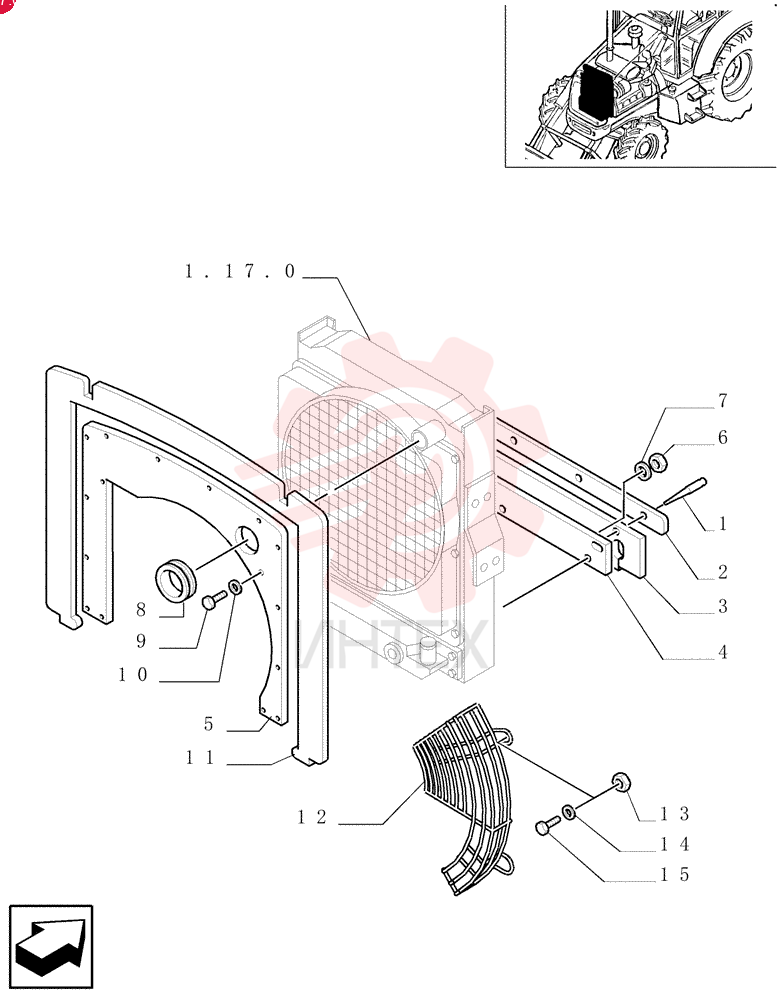

(655E) - TRACTOR LOADER BACKHOE (1/96-)
/
RIVET 13858450

RIVET 13858450

RIVET 13858450

1 13858450

  • 13858450 - RIVET

2 85803472

  • 85803472 - PLATE

3 85803473

  • 85803473 - STRAP

4 85803471

  • 85803471 - BRACKET

5 85803025

  • 85803025 - SUPPORT

6 16100811

  • 16100811 - NUT
  • Hex
  • M8
  • 6.80mm
  • Cl 8
  • ZND

7 11193974

  • 11193974 - BELLEVILLE WASHER
  • M8 Bolt Size x 22mm OD x 1.5mm Thk

8 85803453

  • 85803453 - INSULATOR

9 10902224

  • 10902224 - SCREW
  • Hex
  • M6 x 16mm
  • Cl 8.8
  • Full Thd

10 12647601

  • 12647601 - WASHER
  • 6.15mm ID x 16mm OD x 2mm Thk

11 85803026

  • 85803026 - DEFLECTOR

12 85803820

  • 85803820 - GUARD

13 12574211

  • 12574211 - NUT
  • M6 x 1
  • Cl 8

14 12640604

  • 12640604 - WASHER
  • 6.15mm ID x 25mm OD x 2mm Thk

15 10902424

  • 10902424 - SCREW
  • Hex
  • M6 x 20mm
  • Cl 8.8
  • Full Thd
