(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

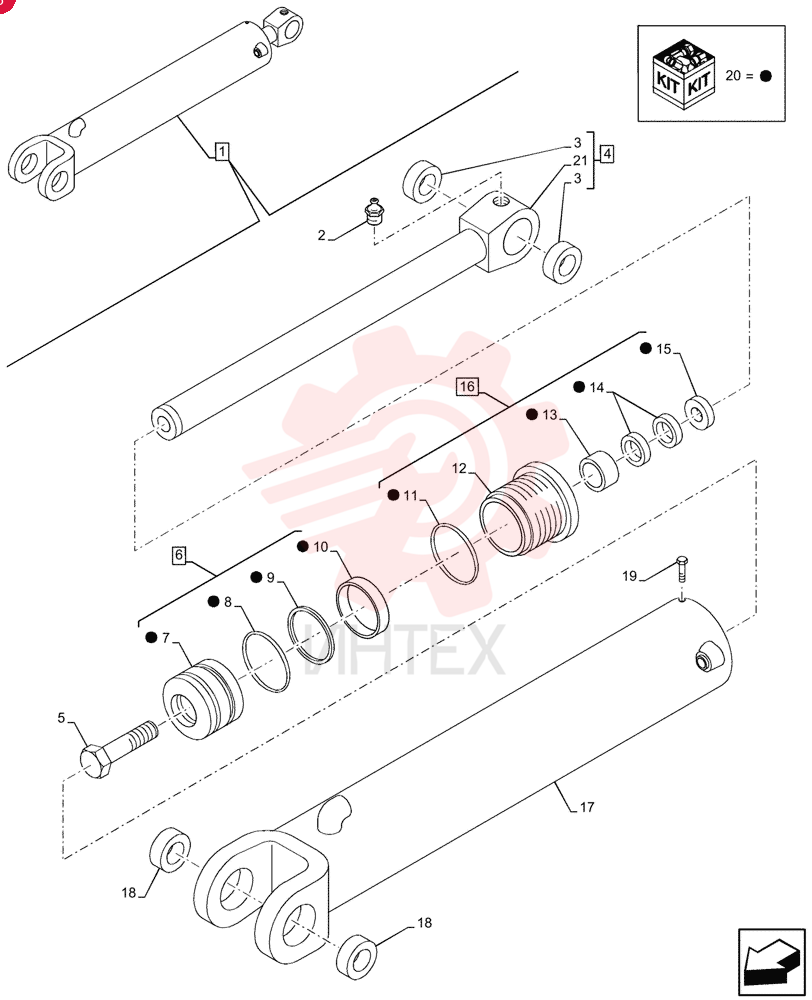

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 120.6mm Bore, 701mm Stroke

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 120.6mm Bore, 701mm Stroke

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 120.6mm Bore, 701mm Stroke

1 47401825

  • 47401825 - HYDRAULIC CYLINDER
  • Double Acting
  • 63.5mm Rod
  • 120.6mm Bore
  • 701mm Stroke

2 219-1

  • 219-1 - LUBE NIPPLE
  • 1/8" - 27 NPTF

3 D149079

  • D149079 - BUSHING
  • 50.19mm ID x 60mm OD x 34mm L

4 87382089

  • 87382089 - ROD
  • 63.5mm OD x 858.2mm L

5 86982444

  • 86982444 - SPECIAL BOLT
  • Hex
  • 12
  • 1 1/2 x 3.50"

6 87382188

  • 87382188 - PISTON

7 87382189

  • 87382189 - PISTON

8 446481A1

  • 446481A1 - SEAL
  • 117.2mm ID x 122.15mm OD x 6.96mm Thk

9 446195A1

  • 446195A1 - SEALING RING
  • Split
  • 114.27mm ID x 120.62mm OD x 19.05mm Thk

10 87403649

  • 87403649 - SEALING RING
  • Square
  • 5.28mm Thk x 107.06mm ID

11 84153643

  • 84153643 - SEAL
  • 112.52mm ID x 119.68mm OD x 4.85mm Thk

12 87382191

  • 87382191 - GLAND

13 G109908

  • G109908 - BUSHING
  • 63.5mm ID x 66.57mm OD x 25.15mm L

14 1542879C1

  • 1542879C1 - SEAL KIT
  • 63.5mm Rod x 88.9mm Bore

15 D95146

  • D95146 - WIPER SEAL
  • 63.4mm ID x 76.22mm OD x 7.92mm Thk

16 84155584

  • 84155584 - GLAND

17 NSS

  • NSS - NOT SOLD SEPARAT

18 123407A1

  • 123407A1 - BUSHING
  • 60.19mm ID x 70mm OD x 28mm L

19 G109395

  • G109395 - SELF-TAP SCREW
  • Hex
  • #8 - 32 x 3/8"

20 84155586

  • 84155586 - SEAL KIT
  • 63.5mm Rod x 120.7mm Bore

21 NSS

  • NSS - NOT SOLD SEPARAT
