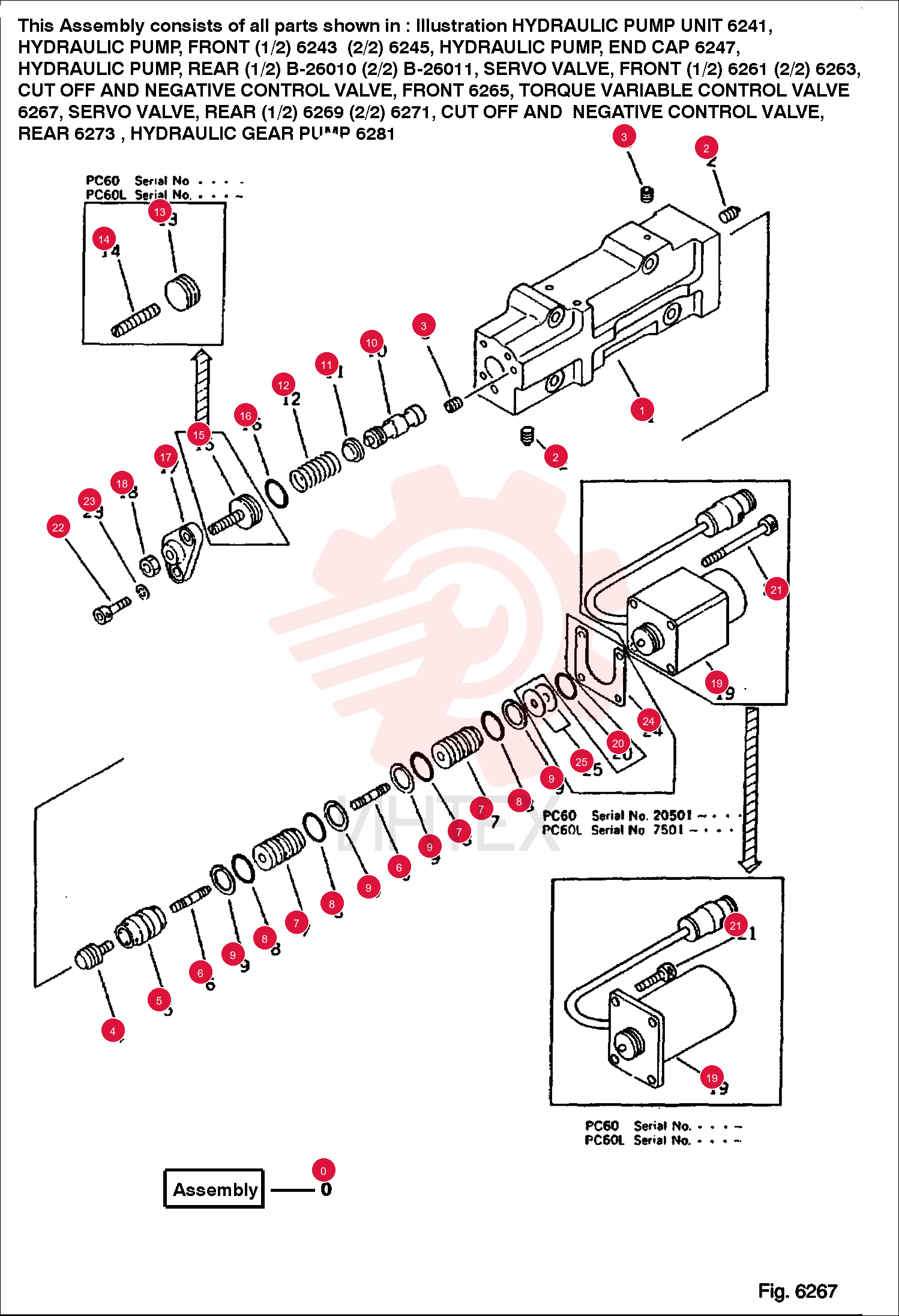

PUMP 6651244 (9)

PUMP 6651244 (9)

PUMP 6651244 (9)

1 6651244

  • 6651244 - PUMP

2 6651245

  • 6651245 - SERVO

3 6640474

  • 6640474 - ASSY
  • VALVE

4 6640466

  • 6640466 - ASSY
  • PUMP

5 6640480

  • 6640480 - ASSY
  • VALVE

6 6642084

  • 6642084 - O-RING KT

7 6637396

  • 6637396 - RING
  • BACK-UP

8 6640486

  • 6640486 - PLUG

9 6637340

  • 6637340 - O-RING

10 6637107

  • 6637107 - NUT

11 6640491

  • 6640491 - SOLENOID

12 6643220

  • 6643220 - SOLE. ASS

13 6637339

  • 6637339 - O-RING

14 6640492

  • 6640492 - BOLT

15 6642946

  • 6642946 - BOLT

16 6640502

  • 6640502 - BOLT

17 6637050

  • 6637050 - BOLT

18 6637133

  • 6637133 - WASHER
