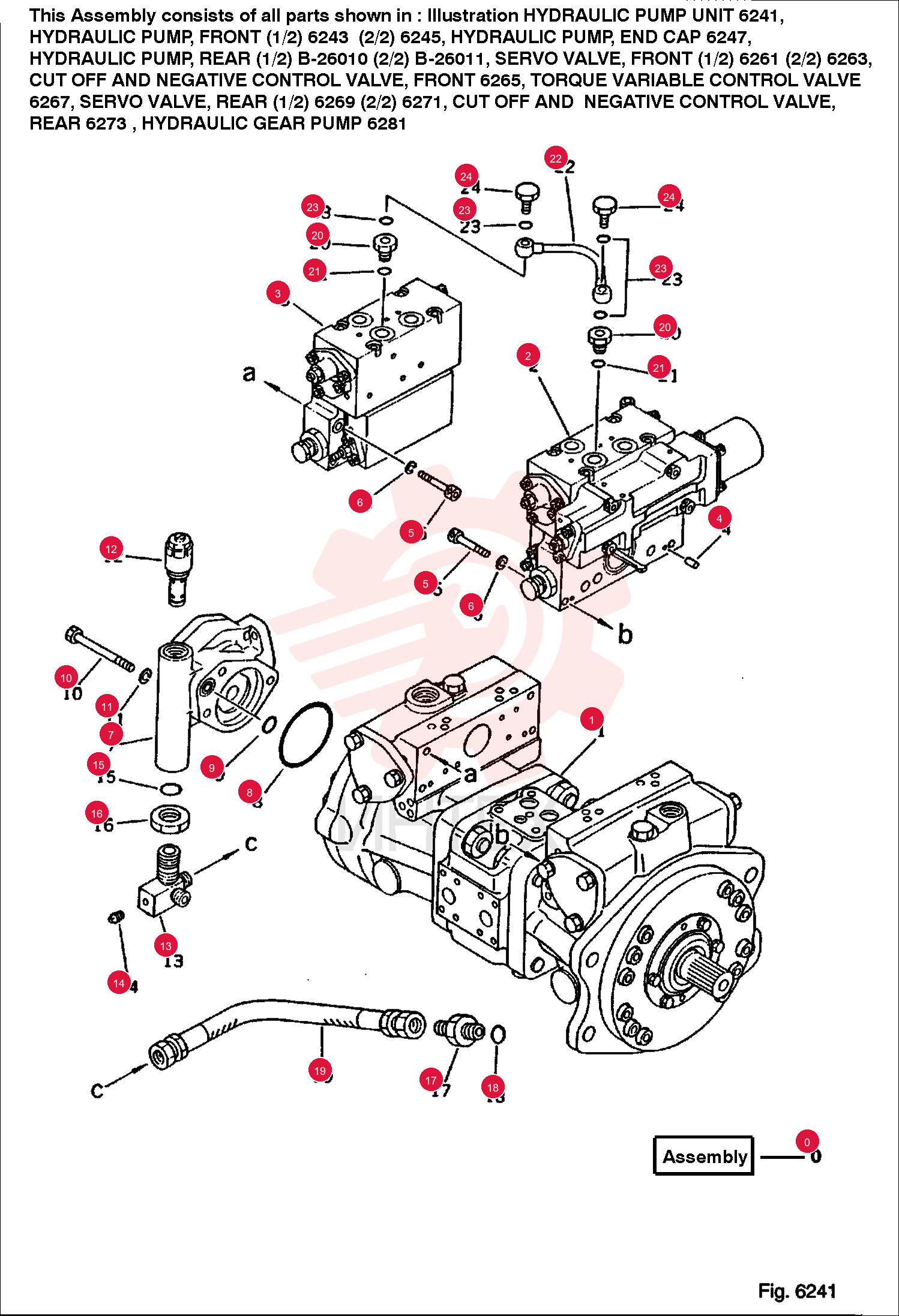

PUMP 6651244 (2)

PUMP 6651244 (2)

PUMP 6651244 (2)

1 6651244

  • 6651244 - PUMP

2 6640466

  • 6640466 - ASSY
  • PUMP

3 6640467

  • 6640467 - ASSY
  • PUMP

4 6651245

  • 6651245 - SERVO

5 6640474

  • 6640474 - ASSY
  • VALVE

6 6640476

  • 6640476 - ASSY
  • VALVE

7 6637174

  • 6637174 - PIN
  • DOWE

8 6640518

  • 6640518 - BOLT

9 6637128

  • 6637128 - WASHER

10 6640294

  • 6640294 - PUMP ASSEMBLY

11 6637347

  • 6637347 - O-RING

12 6637340

  • 6637340 - O-RING

13 6636949

  • 6636949 - BOLT

14 6637129

  • 6637129 - WASHER

15 6640483

  • 6640483 - VALVE ASY

16 6640493

  • 6640493 - ELBOW

17 6637442

  • 6637442 - PLUG

18 6637411

  • 6637411 - O-RING

19 6637593

  • 6637593 - NUT

20 6637580

  • 6637580 - NIPPLE

21 6637410

  • 6637410 - O-RING

22 6637492

  • 6637492 - HOSE

23 6640334

  • 6640334 - PLUG

24 6637409

  • 6637409 - O-RING

25 6637336

  • 6637336 - O-RING

26 6640333

  • 6640333 - BOLT
