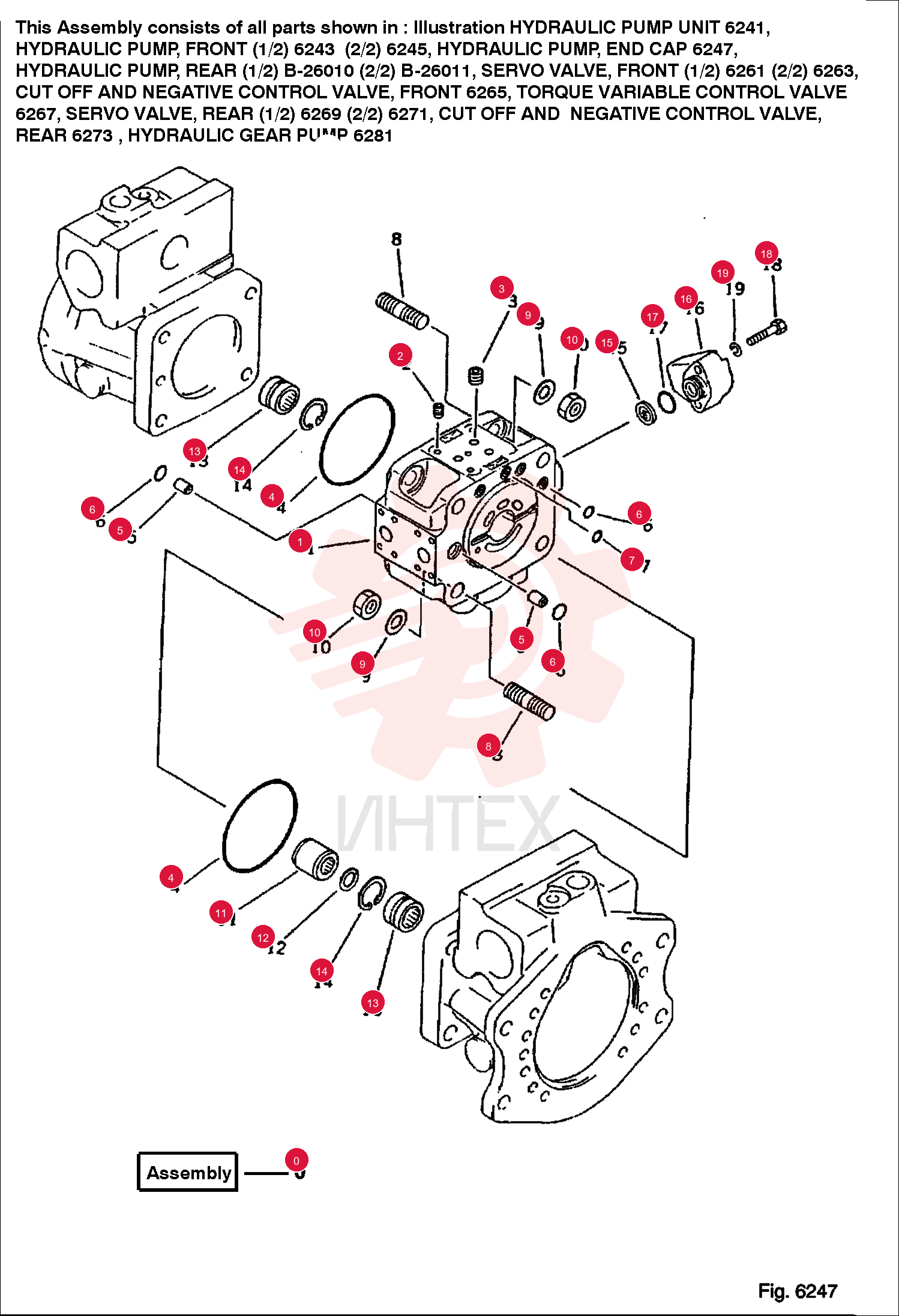

PUMP 6651244 (4)

PUMP 6651244 (4)

PUMP 6651244 (4)

1 6651244

  • 6651244 - PUMP

2 6640466

  • 6640466 - ASSY
  • PUMP

3 6640467

  • 6640467 - ASSY
  • PUMP

4 6646445

  • 6646445 - END CAP

5 6640378

  • 6640378 - PLUG

6 6637348

  • 6637348 - O-RING

7 6637370

  • 6637370 - O-RING

8 6637368

  • 6637368 - O-RING

9 6637159

  • 6637159 - WASHER

10 6646083

  • 6646083 - BEARING

11 6640601

  • 6640601 - FILTER

12 6640482

  • 6640482 - FLANGE

13 6637342

  • 6637342 - O-RING

14 6636945

  • 6636945 - BOLT

15 6637128

  • 6637128 - WASHER
