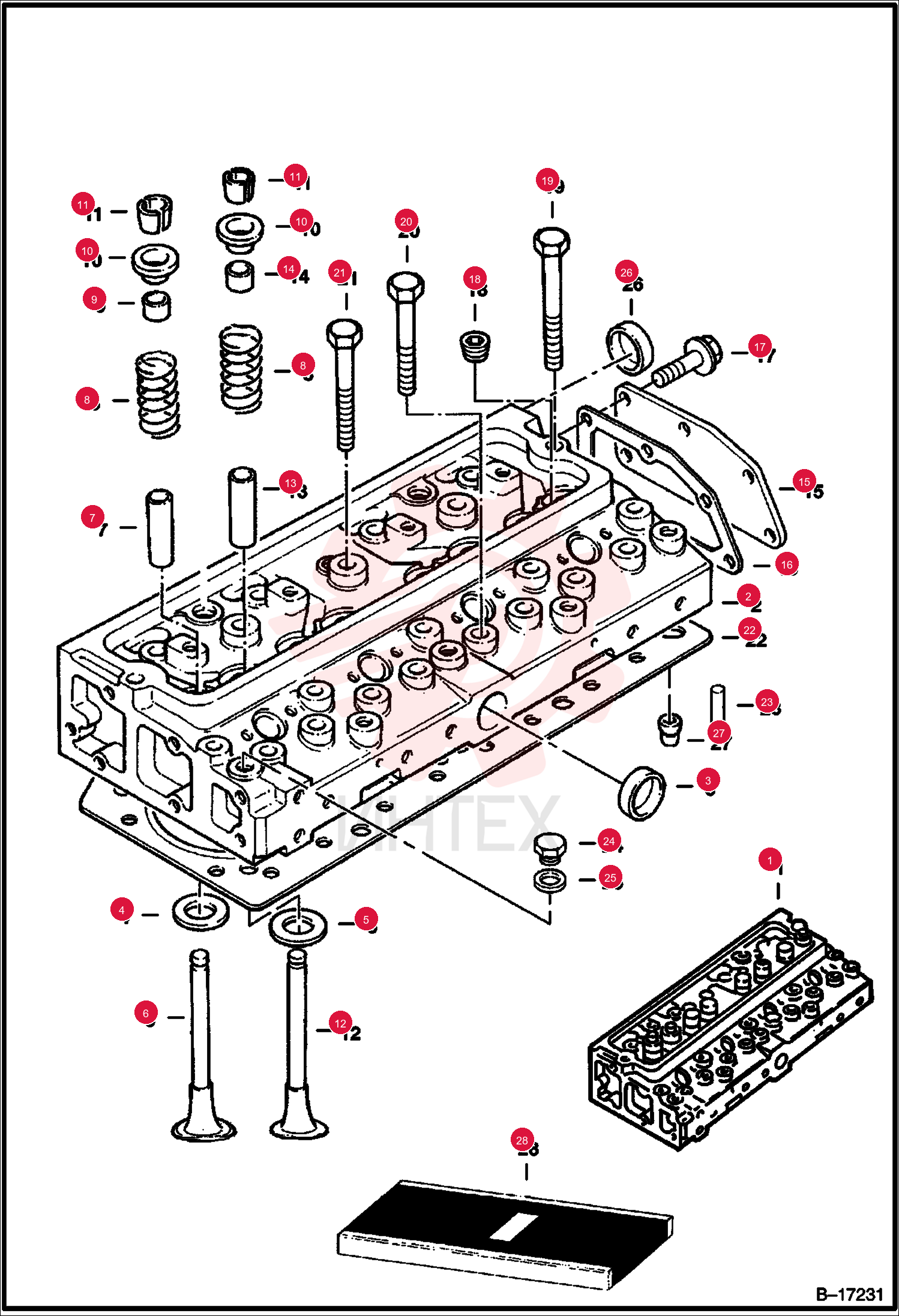

HEAD ASSEMBLY 6672181 (1)

HEAD ASSEMBLY 6672181 (1)

HEAD ASSEMBLY 6672181 (1)

1 6672181

  • 6672181 - HEAD ASSEMBLY
  • Assembly - W/Ref. 2-19

2 3490716

  • 3490716 - PLUG

3 6670888

  • 6670888 - INSERT
  • Inlet Valve Seat

4 6670889

  • 6670889 - INSERT
  • Exhaust

5 6670890

  • 6670890 - VALVE
  • INLET
  • Inlet

6 6670891

  • 6670891 - INLETGUID
  • Valve - Inlet

7 6670892

  • 6670892 - SPRING
  • Inlet
  • Exhaust

8 6670893

  • 6670893 - SEAL
  • Inlet
  • Exhaust

9 6670894

  • 6670894 - CAP
  • Inlet
  • Exhaust

10 6670895

  • 6670895 - COTTER
  • Inlet
  • Exhaust

11 6670896

  • 6670896 - EXHSTVALV
  • Exhaust

12 6670897

  • 6670897 - GUIDE
  • Valve - Exhaust

13 6671645

  • 6671645 - SEAL
  • Inlet
  • Exhaust - Was 6670898

14 6670900

  • 6670900 - COVER

15 6674362

  • 6674362 - JOINT
  • Was 6670899

16 6668487

  • 6668487 - SCREW

17 6514963

  • 6514963 - PLUG

18 6668243

  • 6668243 - SCREW

19 6668244

  • 6668244 - BOLT

20 6668245

  • 6668245 - BOLT

21 6672182

  • 6672182 - HEADGASKT
  • Head - used only when dowel pins are needed

22 6670905

  • 6670905 - HD GASKET
  • Head -used only when dowel pins are not needed

23 6672287

  • 6672287 - PIN
  • DOWEL
  • Dowel

24 3490713

  • 3490713 - PLUG

25 3490223

  • 3490223 - WASHER

26 6668209

  • 6668209 - PLUG

27 6672271

  • 6672271 - PIN
  • DOWEL
  • dowel

28 6672167

  • 6672167 - KIT
  • GASKET
  • upper

29 6672166

  • 6672166 - KIT
  • GASKET
  • lower
