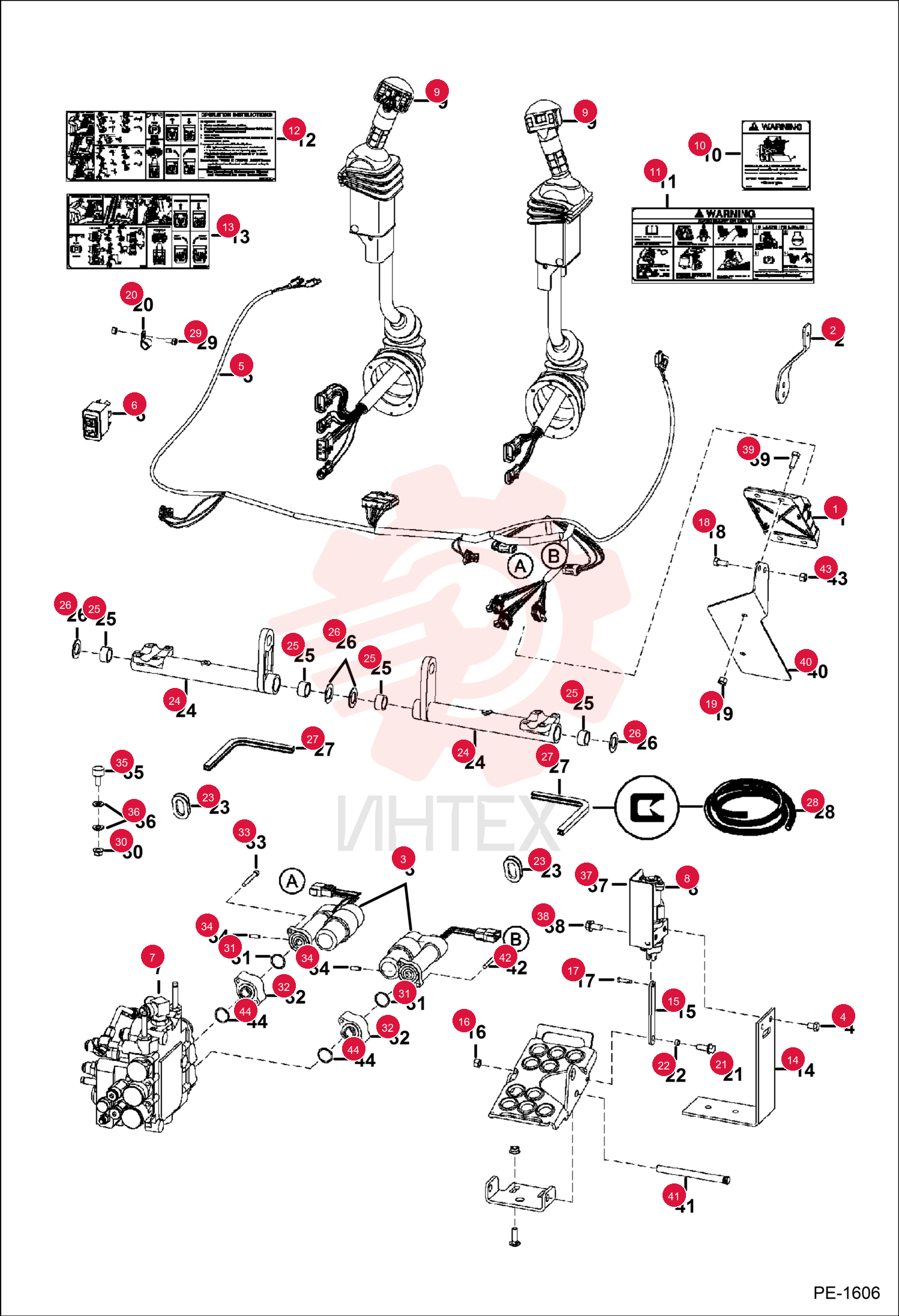

CONTROLLER, ACS 6680410
1 6680410
- 6680410 - CONTROLLER
- ACS
- plastic - W/ 3-connector plug
2 6717393
- 6717393 - LEVER
- throttle
3 7101672
- 7101672 - ACTUATOR
- W/Ref. 31 (58K120 O-ring) - Use W/Ref. 32 (7101705 adapter)
4 17C608
- 17C608 - BOLT
5 6733292
- 6733292 - HARNESS
- ACS
- Was 6726925
6 6676537
- 6676537 - SWITCH
7 6684912
- 6684912 - SENSOR
- FOOT RH
- - Was 6676493
8 6676029
- 6676029 - SOLENOID
- LOCK SPOOL
9 6684911
- 6684911 - SENSOR
- FOOT LH
- - Was 6676492
10 6676029
- 6676029 - SOLENOID
- LOCK SPOOL
11 6684915
- 6684915 - LEVER
- ACS RH
- - tilt - RH - Was 6676333
12 6684916
- 6684916 - LEVER
- ACS LH
- - lift - LH - Was 6676497
13 6718706
- 6718706 - DECAL
- WARNING
- raising cab
14 6728539
- 6728539 - DECAL
- WARNING
15 6727926
- 6727926 - DECAL
- OPERATION
- hand & foot controls
16 6727926
- 6727926 - DECAL
- OPERATION
- hand & foot controls - Was 6727941
17 7126869
- 7126869 - BRACKET
- Was 6726573
18 6726681
- 6726681 - LINK
- AFC POD
19 95D5
- 95D5 - NUT
20 6727496
- 6727496 - PIN
21 17C612
- 17C612 - SCREW HEX CAP
22 95D6
- 95D6 - NUT HEXAGON
23 6809777
- 6809777 - BRACKET ASC/AHC
- ACS/AHC
24 35C514
- 35C514 - SCREW FLGD HEX CAP
25 6729467
- 6729467 - SPACER
- COLLAR
26 6714726
- 6714726 - PLUG
27 6624289
- 6624289 - STRAP
- TIE
28 6571991
- 6571991 - GUIDE
- spring
29 6572026
- 6572026 - SPRING
- compression
30 17C612
- 17C612 - SCREW HEX CAP
31 43C408
- 43C408 - BOLT
32 59D6
- 59D6 - NUT LOCK HEX PT
33 58K120
- 58K120 - O-RING
- Use W/Ref. 3 (NLA/ 6678775 actuator & 7101672 actuator)
34 6686220
- 6686220 - O-RING
- Use W/Ref. 3 (NLA/ 7103129 actuator)
35 6725128
- 6725128 - ADAPTER
- actuator - W/ O-ring groove - Use W/Ref. 3 (NLA/ 6678775 actuator)
36 7101705
- 7101705 - ADAPTER
- ACTUATOR
- W/O O-ring groove - Use W/Ref. 3 (NLA/ 7103129 actuator & 7101672 actuator)
37 69G436
- 69G436 - BOLT
38 7108236
- 7108236 - PIN
- Was 6718506
39 6673789
- 6673789 - BEARING
- ROLLER
40 27E6
- 27E6 - WASHER HARDEN PLAIN
41 6680478
- 6680478 - SHIELD
- RH - Was 6727231
42 6680479
- 6680479 - SHIELD
- LH - Was 6727284
43 43C408
- 43C408 - BOLT
44 17C616
- 17C616 - BOLT 5
45 6727580
- 6727580 - MOUNT
- CONTROLLER
- controller
46 6564657
- 6564657 - PIN
47 29G416
- 29G416 - BOLT
48 61D6
- 61D6 - NUT HEX FINISHED GR5
49 58K127
- 58K127 - O-RING
- 10
