Bobcat
/
963
/

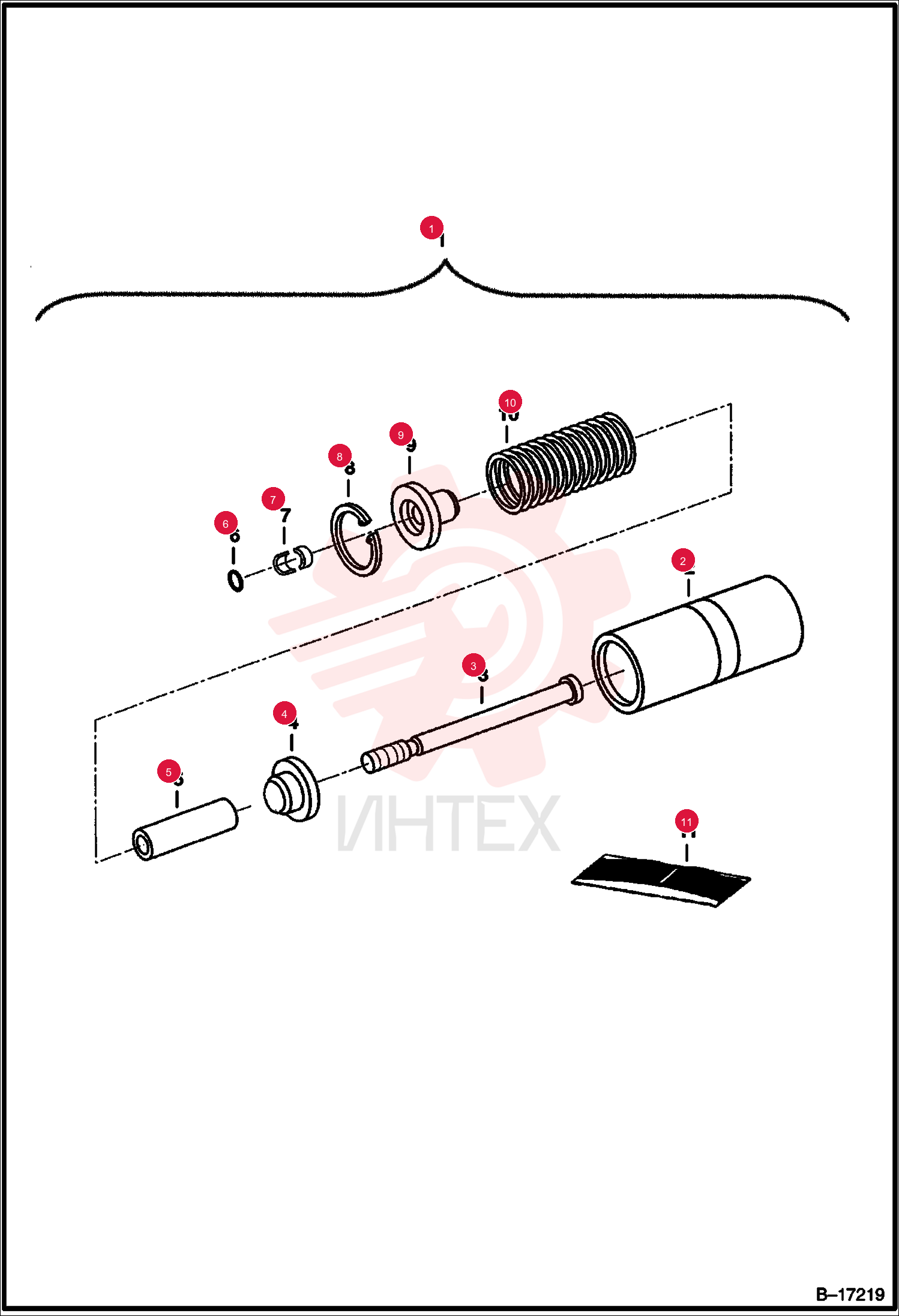

PISTON 6674922 (1)

PISTON 6674922 (1)

PISTON 6674922 (1)

1 6674922

  • 6674922 - PISTON
  • control - Was 6671792

2 6688031

  • 6688031 - ROD
  • Was 6671791

3 6687926

  • 6687926 - COLLAR
  • Was 6674213

4 6674923

  • 6674923 - SPACER
  • 55.1 mm - Was 6671794

5 6674924

  • 6674924 - SPACER
  • 55.0 mm - Was 6671795

6 6674925

  • 6674925 - SPACER
  • 55.2 mm - Was 6671796

7 6671805

  • 6671805 - O-RING

8 6688025

  • 6688025 - RING
  • 6.85 mm - Was 6671799

9 6688026

  • 6688026 - RING
  • 6.90 mm - Was 6671800

10 6688027

  • 6688027 - RING
  • 6.95 mm - Was 6671801

11 6688028

  • 6688028 - RING
  • 7.00 mm - Was 6671802

12 6671803

  • 6671803 - RING 7.05
  • 7.05 mm

13 6688030

  • 6688030 - RING
  • 7.10 mm - Was 6671804

14 6688002

  • 6688002 - RING
  • Was 6671798

15 6674215

  • 6674215 - COLLAR

16 6674214

  • 6674214 - SPRING

17 6672016

  • 6672016 - SEAL KIT
  • Ref. 28
