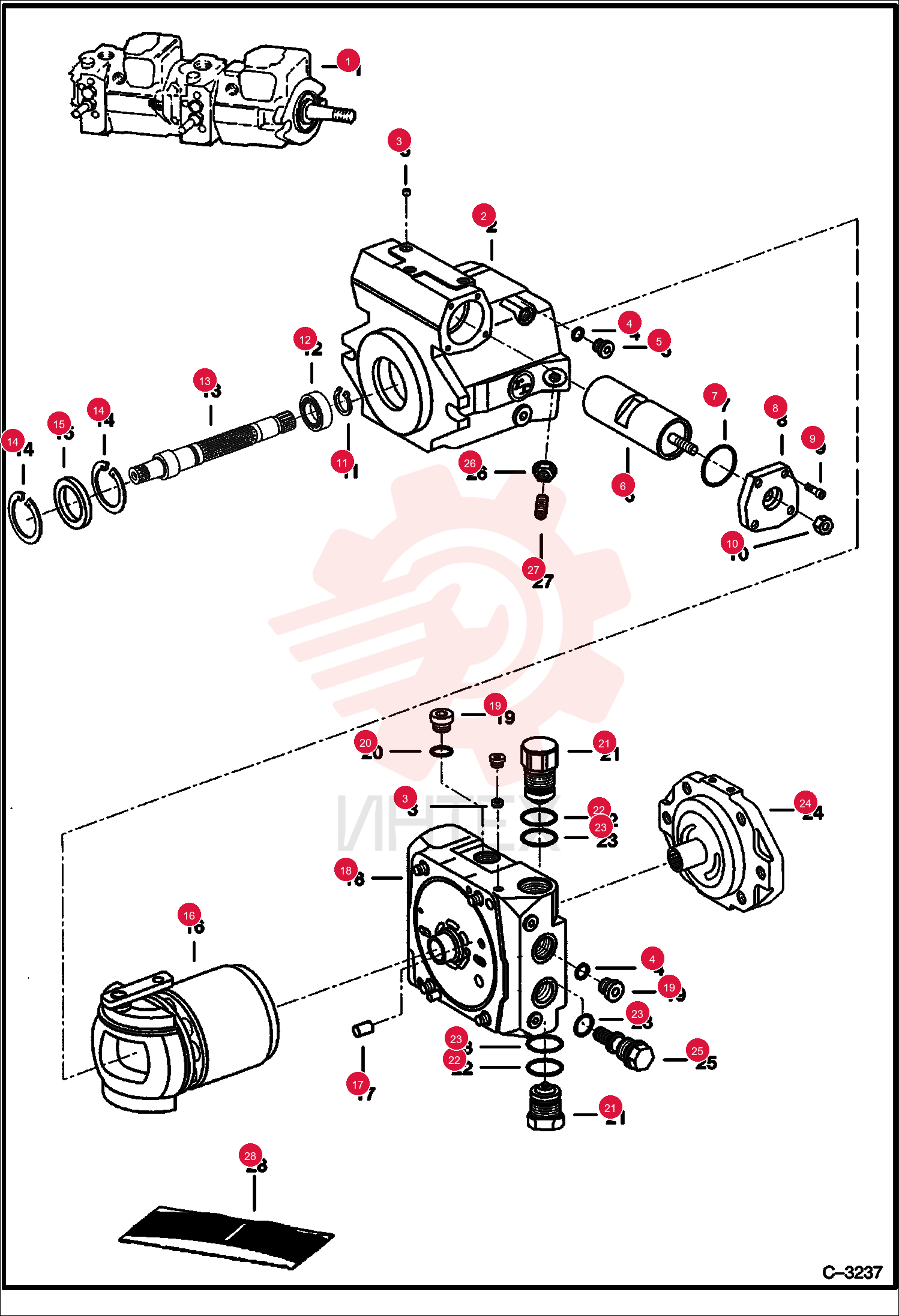

PUMP, HYD TANDEM 6674238 (1)
1 6674238
- 6674238 - PUMP
- HYD TANDEM
- assembly
2 6671781
- 6671781 - HOUSING
3 6967419
- 6967419 - ORIFICE
- Was 6671745
4 6671749
- 6671749 - O-RING
5 6671743
- 6671743 - O-RING
6 6671760
- 6671760 - COVER
- piston
7 6682968
- 6682968 - SCREW
- Was 6671761
8 6674907
- 6674907 - NUT
- Was 6671755
9 6671780
- 6671780 - SNAP RING
10 6688018
- 6688018 - BEARING
- Was 6671779
11 6671778
- 6671778 - SHAFT
12 6671741
- 6671741 - SNAP RING
13 6671742
- 6671742 - SEAL
- SHAFT
- shaft
14 6688010
- 6688010 - PIN
- Was 6671750
15 6666364
- 6666364 - PLUG
16 6671758
- 6671758 - O-RING
17 6698052
- 6698052 - VALVE
- pressure relief - preset to 320 bar delta - Was 6682914
18 6671752
- 6671752 - O-RING
19 6671753
- 6671753 - O-RING
20 6671824
- 6671824 - CHRG PUMP
- - Was 6671740
21 6671754
- 6671754 - KIT VALVE
22 6671746
- 6671746 - NUT
- LOCK
23 6671744
- 6671744 - SCREW
- ECC
24 6672016
- 6672016 - SEAL KIT
- - W/Ref. 4
- 7
- 15
- 20
- 22 & 23 on this page - Ref. 5
- 7
- 8 & 10 on HOUSING ASSY page - Ref. 6 on PISTON ASSY page - Ref. 6
- 9 & 11 on CHARGE PUMP (Pulley End) page - Ref. 4
- 10
- 13 & 14 on PORT BLOCK page
