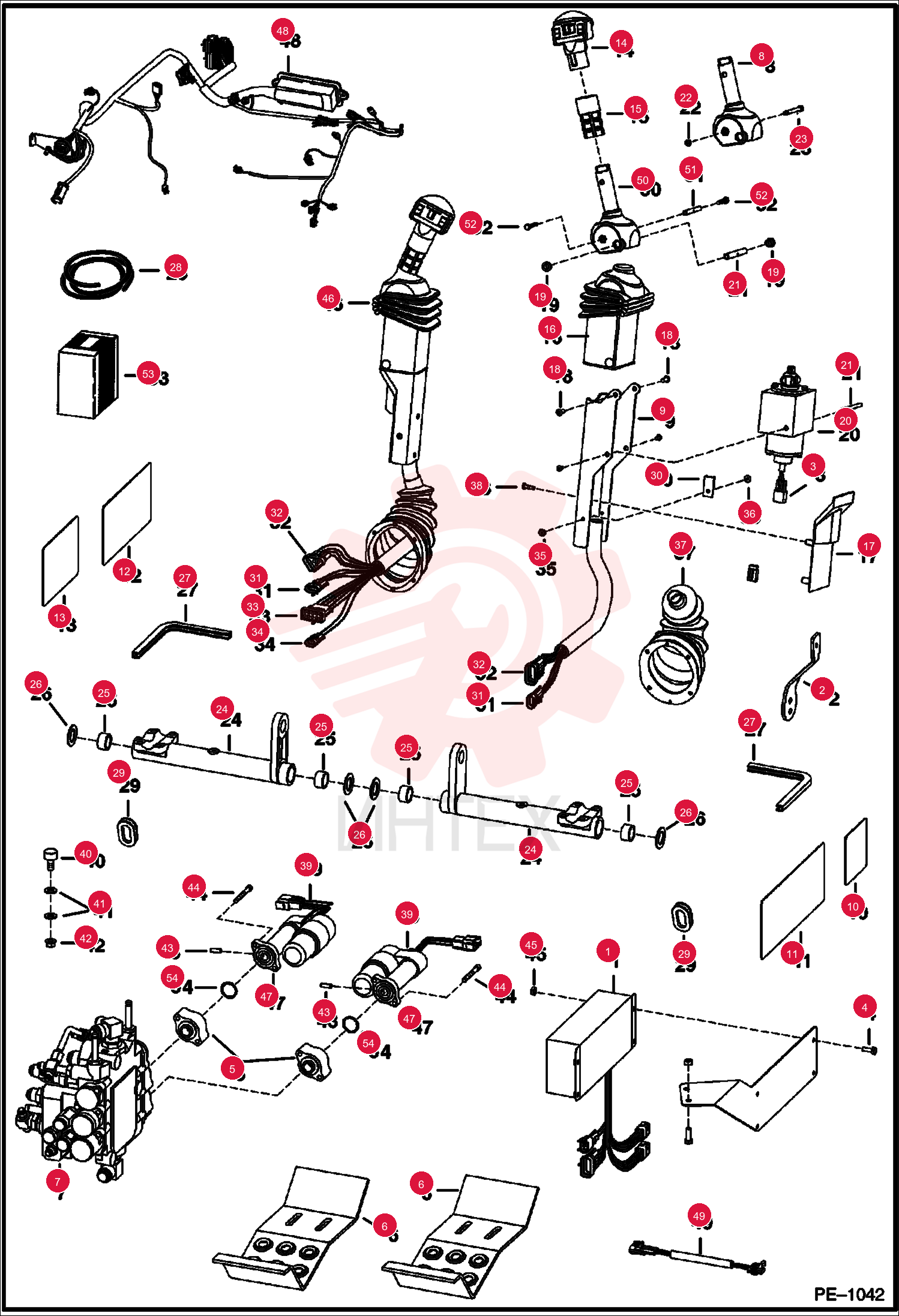

CONTROLLER, AHC METAL 6674804
1 6674804
- 6674804 - CONTROLLER
- AHC METAL
- metal
2 6717393
- 6717393 - LEVER
- throttle
3 6670707
- 6670707 - CONNECTOR
- 3-way
4 6670710
- 6670710 - PLUG
- 3-way
5 17C412
- 17C412 - BOLT 5
6 6725128
- 6725128 - ADAPTER
- actuator - W/ O-ring groove - Use W/Ref. 39 (NLA/ 6678775 actuator) - Was 6718801
7 7101705
- 7101705 - ADAPTER
- ACTUATOR
- W/O O-ring groove - Use W/Ref. 39 (NLA/ 7103129 actuator & 7104842 actuator)
8 6712365
- 6712365 - STEP
9 6597775
- 6597775 - LEVER
- RH tilt - S shaped
10 6597776
- 6597776 - LEVER
- LH lift - S shaped
11 6718706
- 6718706 - DECAL
- WARNING
- raising cab
12 6728539
- 6728539 - DECAL
- WARNING
- Was 6718699
13 6718702
- 6718702 - DECAL
- operation
14 6718704
- 6718704 - DECAL
- opeation
15 6670715
- 6670715 - SOCKET
16 6641176
- 6641176 - SEAL
17 6640690
- 6640690 - PIN
18 6670715
- 6670715 - SOCKET
19 6641176
- 6641176 - SEAL
20 6680447
- 6680447 - DECAL
- Was 6677370
21 6640690
- 6640690 - PIN
22 6680471
- 6680471 - BOOT
- Was 6713898
23 6715957
- 6715957 - COVER
24 25GT410
- 25GT410 - SCREW
25 6702990
- 6702990 - BUSHING
26 6713043
- 6713043 - SPACER
27 12D10
- 12D10 - NUT
- Use W/Ref. 23
28 6716826
- 6716826 - BOLT
- Use W/Ref. 8
29 6716977
- 6716977 - BELLCRANK
30 6673710
- 6673710 - BEARING
- NEEDLE
- needle
31 6716916
- 6716916 - WASHER
- plastic
32 6654139
- 6654139 - MOULDING BULK/FT
- sold per foot
33 6714726
- 6714726 - PLUG
34 6665000
- 6665000 - BRACKET MOUNTING
35 6640699
- 6640699 - CONNECTOR METRI PACK
36 6640700
- 6640700 - LOCK METRI PACK
37 6640692
- 6640692 - CONNECTOR
- 10-pin
38 6640694
- 6640694 - LOCK
- Use W/ 10-pin connector
39 6667144
- 6667144 - CONNECTOR
- 5-pin
40 6667145
- 6667145 - LOCK
- Use W/ 5-pin connector
41 6641179
- 6641179 - CONNECTOR METRI PACK
- 2-pin
42 6641180
- 6641180 - LOCK METRI PACK
- Use W/ 2-pin connector
43 6665322
- 6665322 - RIVET PLASTIC FEMALE
- female
44 6665321
- 6665321 - RIVET PLASTIC MALE
- male
45 6532127
- 6532127 - BOOT AND PLATE ASSY
46 6669224
- 6669224 - TAP SCREW
47 7104842
- 7104842 - ACTUATOR
- W/Ref. 54 (58K120 O-ring) - Use W/Ref. 5 (7101705 adapter)
48 6673789
- 6673789 - BEARING
- ROLLER
49 25E17
- 25E17 - WASHER FLAT PLAIN
50 98D6
- 98D6 - NUT
51 7108236
- 7108236 - PIN
- Was 6718506
52 69G436
- 69G436 - BOLT
53 61D4
- 61D4 - NUT 5
54 6725193
- 6725193 - HARN/963 AHC
- AHC
55 6717569
- 6717569 - DIODE
- 6 amp
56 6728742
- 6728742 - HARN.JUMPER
- jumper - enhance boom lift
57 6729594
- 6729594 - HANDLE
- RH
58 6729595
- 6729595 - HANDLE
- LH
59 6680469
- 6680469 - SPACER
- 2.285" - Use W/Ref. 50 - Was 6729600
60 6727065
- 6727065 - SCREW
- button head - 24UNC
61 6809777
- 6809777 - BRACKET ASC/AHC
- AHC - Was 6807058
62 58K120
- 58K120 - O-RING
- Use W/Ref. 39 (NLA/ 6678775 actuator & 7104842 actuator)
63 6686220
- 6686220 - O-RING
- Use W/Ref. 39 (NLA/ 7103129 actuator)
