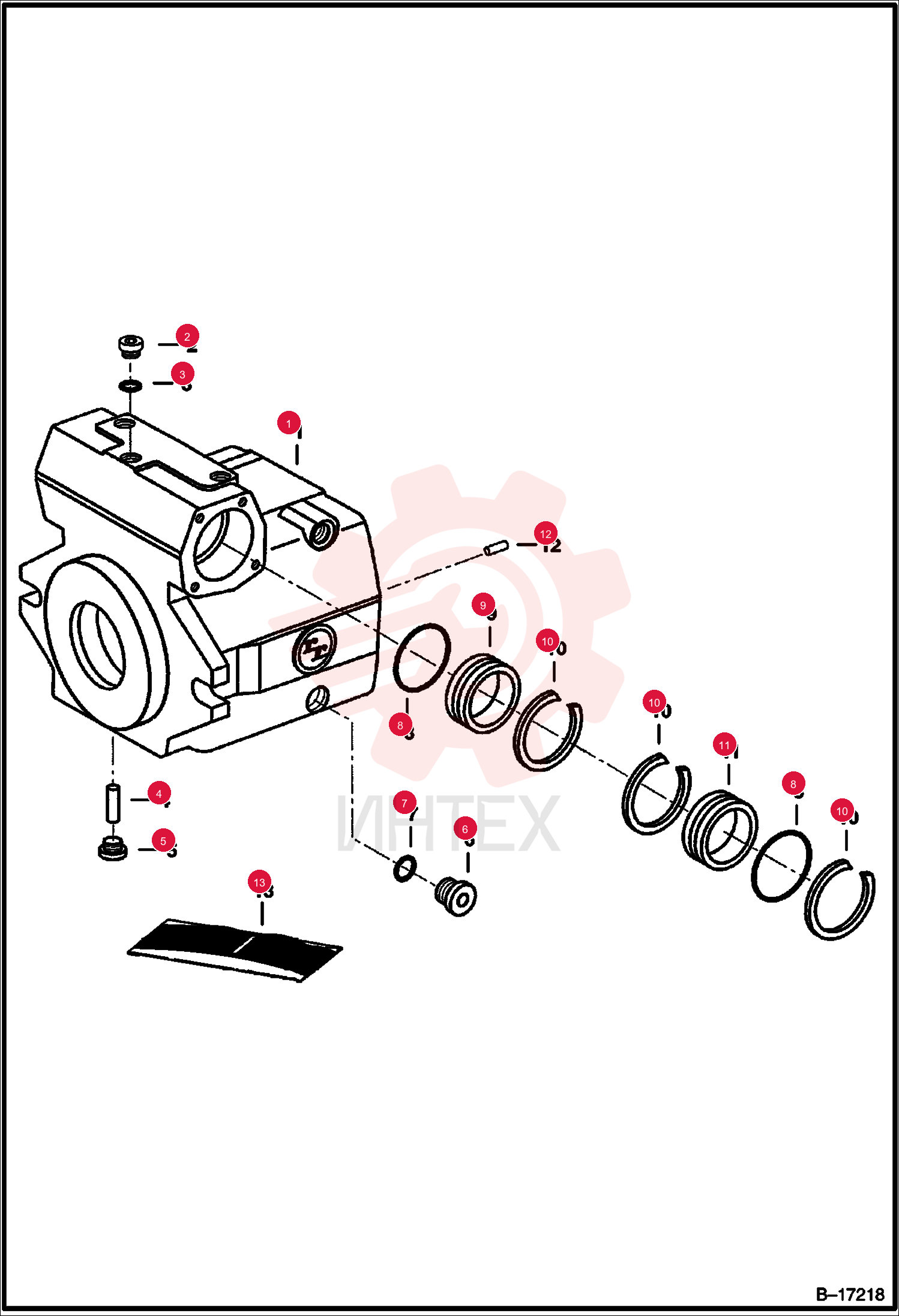

HOUSING 6671781 (2)

HOUSING 6671781 (2)

HOUSING 6671781 (2)

1 6671781

  • 6671781 - HOUSING
  • - Ref. 2 & W/Ref. 2-12 on this page

2 6671783

  • 6671783 - PLUG

3 6671784

  • 6671784 - O-RING
  • W/Ref. 2

4 6967414

  • 6967414 - PIN
  • Was 6671789

5 6682878

  • 6682878 - PLUG
  • Was 6671790

6 6671748

  • 6671748 - PLUG

7 6671787

  • 6671787 - O-RING
  • W/Ref. 6

8 6671743

  • 6671743 - O-RING

9 6671785

  • 6671785 - BUSHING

10 6671786

  • 6671786 - V RING

11 6671788

  • 6671788 - BUSHING

12 6671782

  • 6671782 - PIN
  • ROLL

13 6672016

  • 6672016 - SEAL KIT
  • Ref. 28
