Bobcat
/
963
/

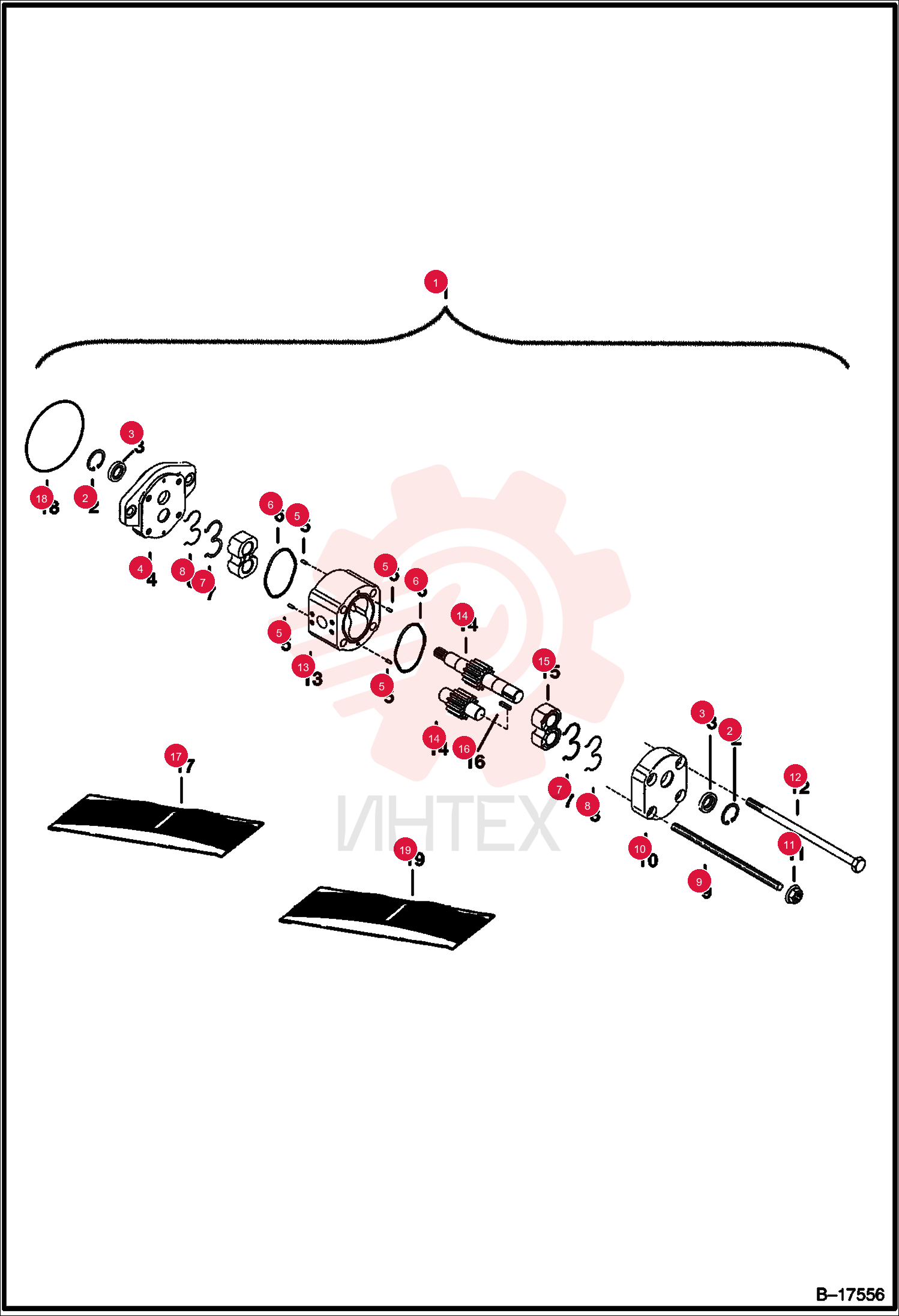

PUMP, GEAR 6668882

PUMP, GEAR 6668882

PUMP, GEAR 6668882

1 6668882

  • 6668882 - PUMP
  • GEAR
  • Ref. 2 - 16

2 6672156

  • 6672156 - RING
  • SNAP

3 6672157

  • 6672157 - SEAL

4 6662929

  • 6662929 - PIN
  • DOWEL

5 6672159

  • 6672159 - O-RING

6 6672160

  • 6672160 - SEAL

7 6672161

  • 6672161 - O-RING
  • backup

8 6675381

  • 6675381 - NUT
  • Was 6672164

9 6674258

  • 6674258 - KEY

10 6692643

  • 6692643 - SEAL KIT
  • W/Ref. 2
  • 3
  • 6
  • 7 & 8 - Was 6672153

11 6671821

  • 6671821 - O-RING

12 6676484

  • 6676484 - KIT
  • NLA - W/Ref. 2-5 - Was 6676484
