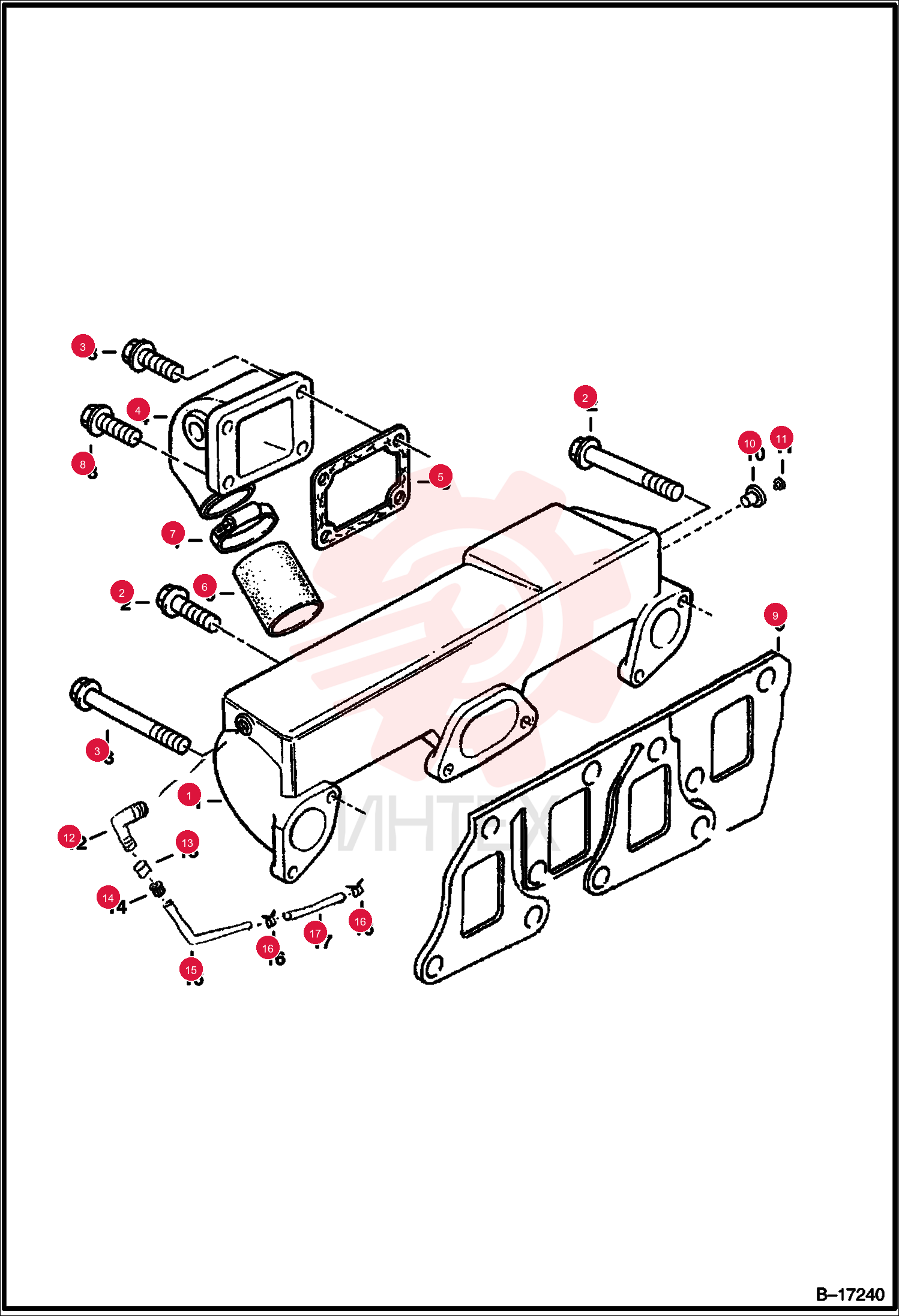

SCREW 6672786 (1)

SCREW 6672786 (1)

SCREW 6672786 (1)

1 6672786

  • 6672786 - SCREW
  • Was 6670963

2 6670943

  • 6670943 - SCREW

3 6672787

  • 6672787 - ELBOW
  • Was 6671010

4 6671011

  • 6671011 - GASKET

5 6671012

  • 6671012 - HOSE

6 6668597

  • 6668597 - CLAMP
  • Was 6643341

7 6668278

  • 6668278 - SCREW

8 6670967

  • 6670967 - GASKET
  • - combined intake/exhaust gasket

9 6515707

  • 6515707 - ADAPTOR

10 40K2

  • 40K2 - PLUG HEX
  • pipe

11 6668292

  • 6668292 - CONNECTOR

12 57F2

  • 57F2 - SLEEVE

13 58F2

  • 58F2 - NUT

14 6670922

  • 6670922 - PIPE
  • AIR FLOW

15 6668296

  • 6668296 - CLAMP

16 6672290

  • 6672290 - HOSE
