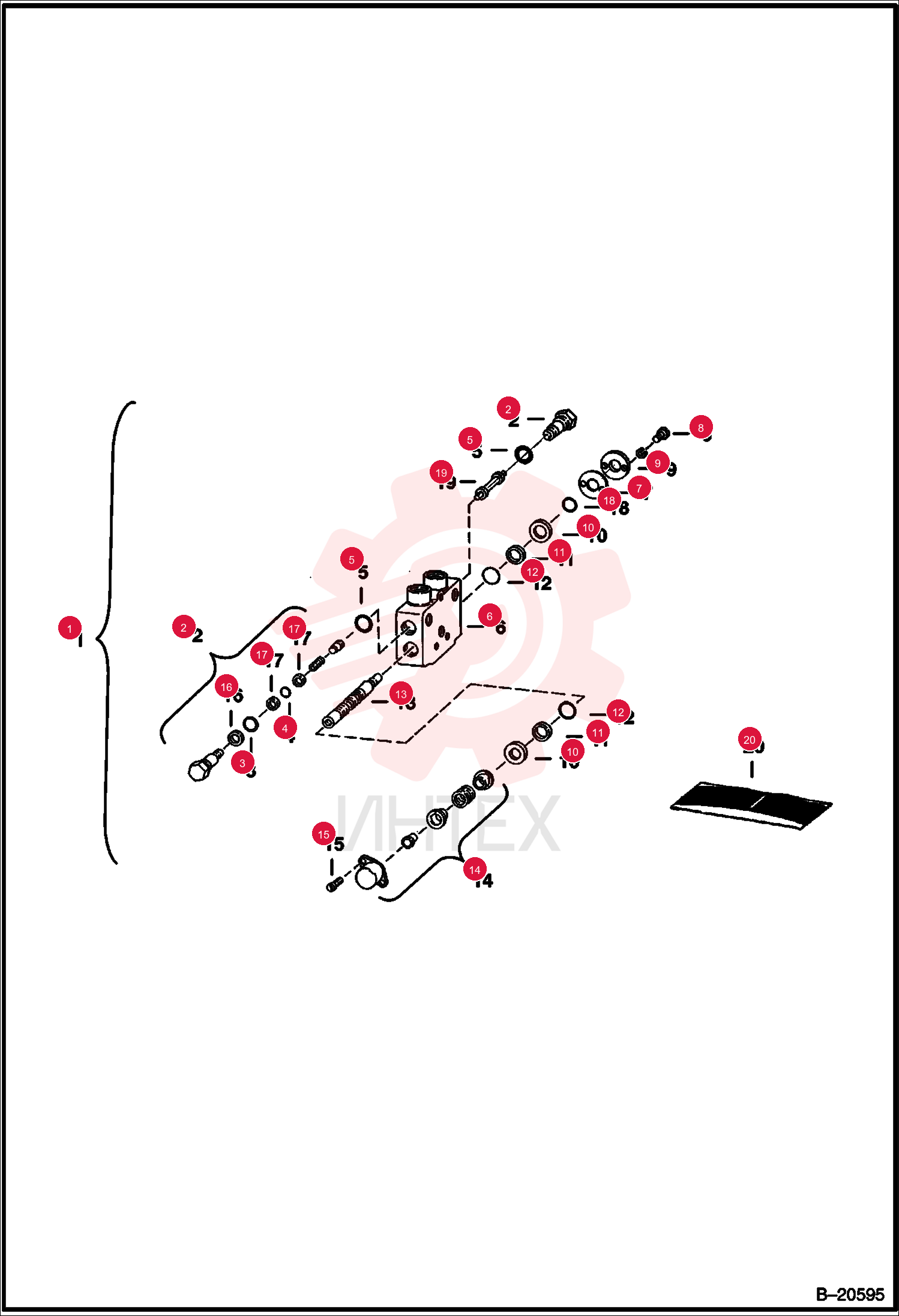

VALVE, SECTION 6647682 (2)

VALVE, SECTION 6647682 (2)

VALVE, SECTION 6647682 (2)

1 6647682

  • 6647682 - VALVE
  • SECTION
  • Ref. 2-19

2 6647697

  • 6647697 - LOCKOUT V
  • lock out

3 6647688

  • 6647688 - PLATE

4 6647689

  • 6647689 - SCREW

5 6519941

  • 6519941 - PLATE
  • RETAINER

6 6647690

  • 6647690 - RETAINER

7 6647691

  • 6647691 - BONNET

8 6647692

  • 6647692 - SCREW

9 6647695

  • 6647695 - SEAL
  • WIPER

10 6647698

  • 6647698 - PISTON
  • unlocking

11 6647694

  • 6647694 - SEAL KIT
  • Ref. 11 & 12

12 6647693

  • 6647693 - SEAL KIT
  • Ref. 3-5
  • 16 & 17
