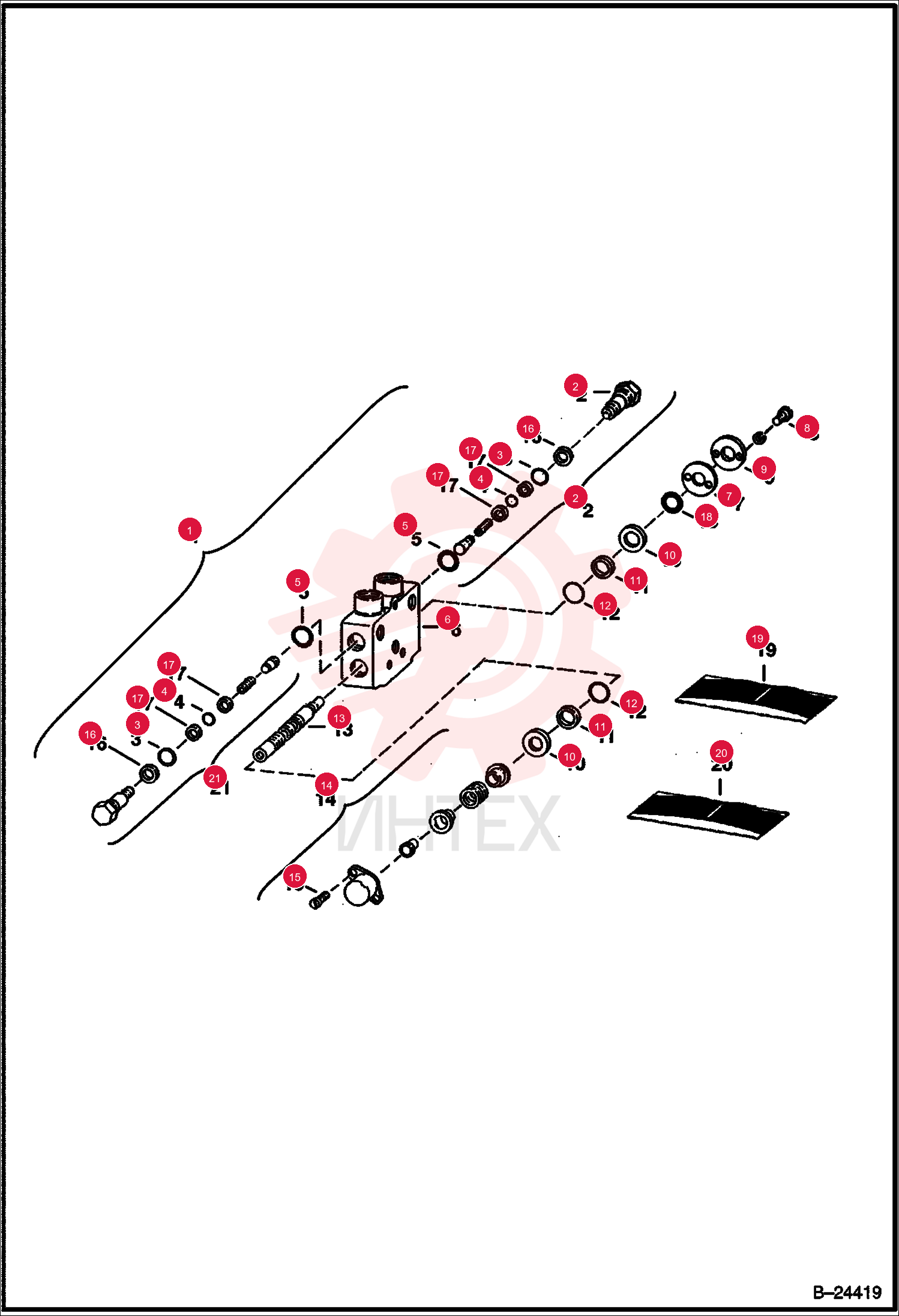

VALVE, SECTION 6647676 (1)

VALVE, SECTION 6647676 (1)

VALVE, SECTION 6647676 (1)

1 6647676

  • 6647676 - VALVE
  • SECTION
  • W/Ref. 2-18

2 6647700

  • 6647700 - VALVE
  • RELIEF
  • Assy. - W/Ref. 2-5
  • 16 & 17

3 6647688

  • 6647688 - PLATE

4 6647689

  • 6647689 - SCREW

5 6519941

  • 6519941 - PLATE
  • RETAINER

6 6647690

  • 6647690 - RETAINER

7 6647691

  • 6647691 - BONNET
  • Assembly - W/Ref. 15

8 6647692

  • 6647692 - SCREW

9 6647695

  • 6647695 - SEAL
  • WIPER

10 6647693

  • 6647693 - SEAL KIT
  • W/Ref. 3-5
  • 16 & 17

11 6647694

  • 6647694 - SEAL KIT
  • W/Ref. 11 & 12

12 6647696

  • 6647696 - VALVE
  • RELIEF
  • Relief & Anti-Cav. - W/Ref. 3
  • 4
  • 16 & 17
