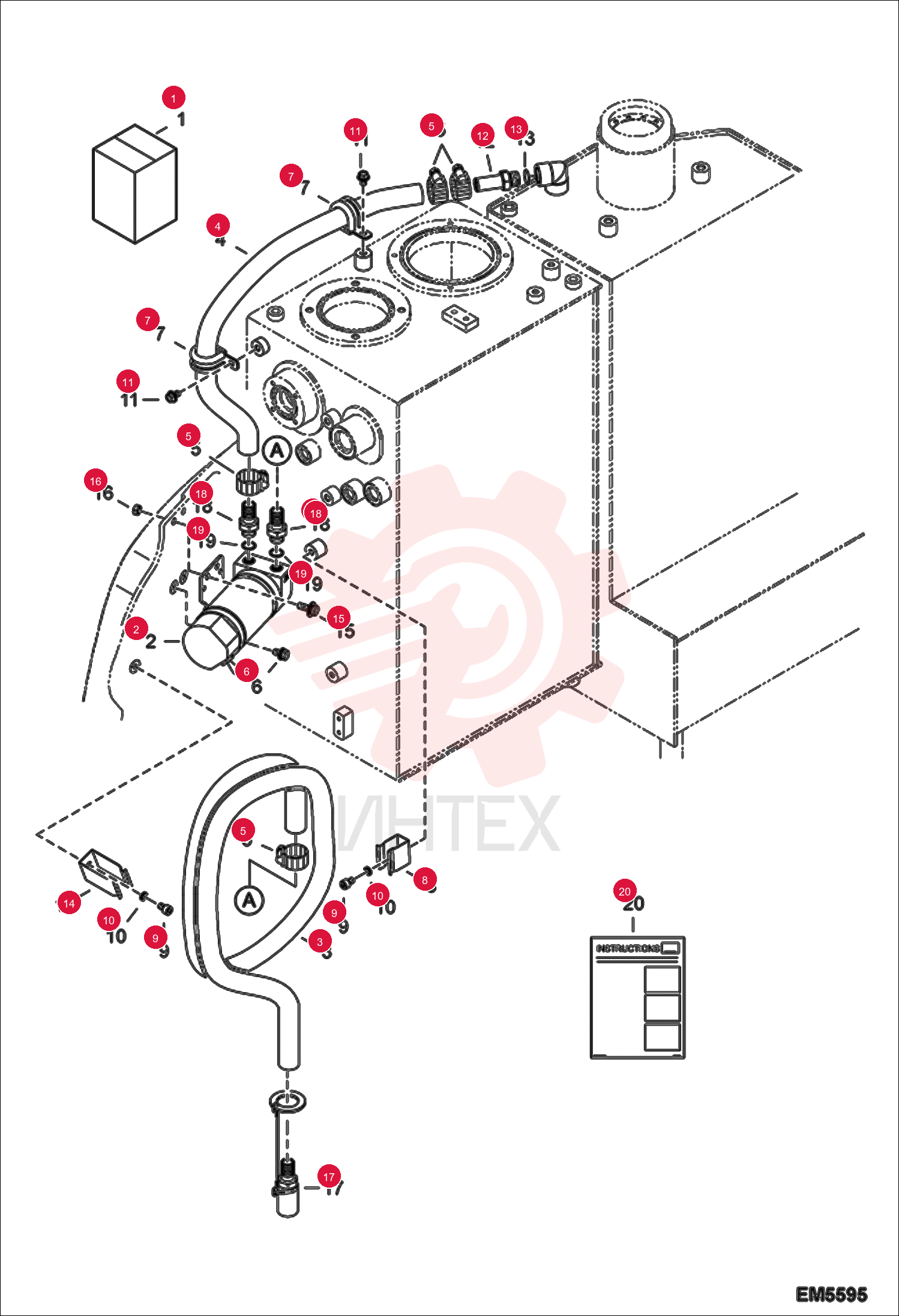

KIT, PUMP TRANSFER 7178233

KIT, PUMP TRANSFER 7178233

KIT, PUMP TRANSFER 7178233

1 7178233

  • 7178233 - KIT
  • PUMP TRANSFER
  • W/Ref. 2-29

2 7006285

  • 7006285 - PUMP FUEL FILLER
  • W/Ref. 18-19

3 7008266

  • 7008266 - HOSE
  • FUEL

4 7006761

  • 7006761 - HOSE FUEL

5 7008303

  • 7008303 - CLAMP
  • HOSE

6 7005135

  • 7005135 - BOLT

7 7003897

  • 7003897 - CLIP

8 7006766

  • 7006766 - CLAMP
  • Was 7006747

9 7007732

  • 7007732 - BOLT SOCKET

10 7007842

  • 7007842 - WASHER SPRING

11 7005629

  • 7005629 - BOLT

12 7004748

  • 7004748 - ADAPTER

13 7284557

  • 7284557 - O-RING
  • Was 7007911

14 7006766

  • 7006766 - CLAMP

15 7005137

  • 7005137 - BOLT M8X1.25X25

16 7007796

  • 7007796 - NUT

17 7008276

  • 7008276 - VALVE
  • CHECK

18 7004763

  • 7004763 - ADAPTER

19 7007971

  • 7007971 - SEAL RING

20 6987456

  • 6987456 - INSTRUCTIONS
