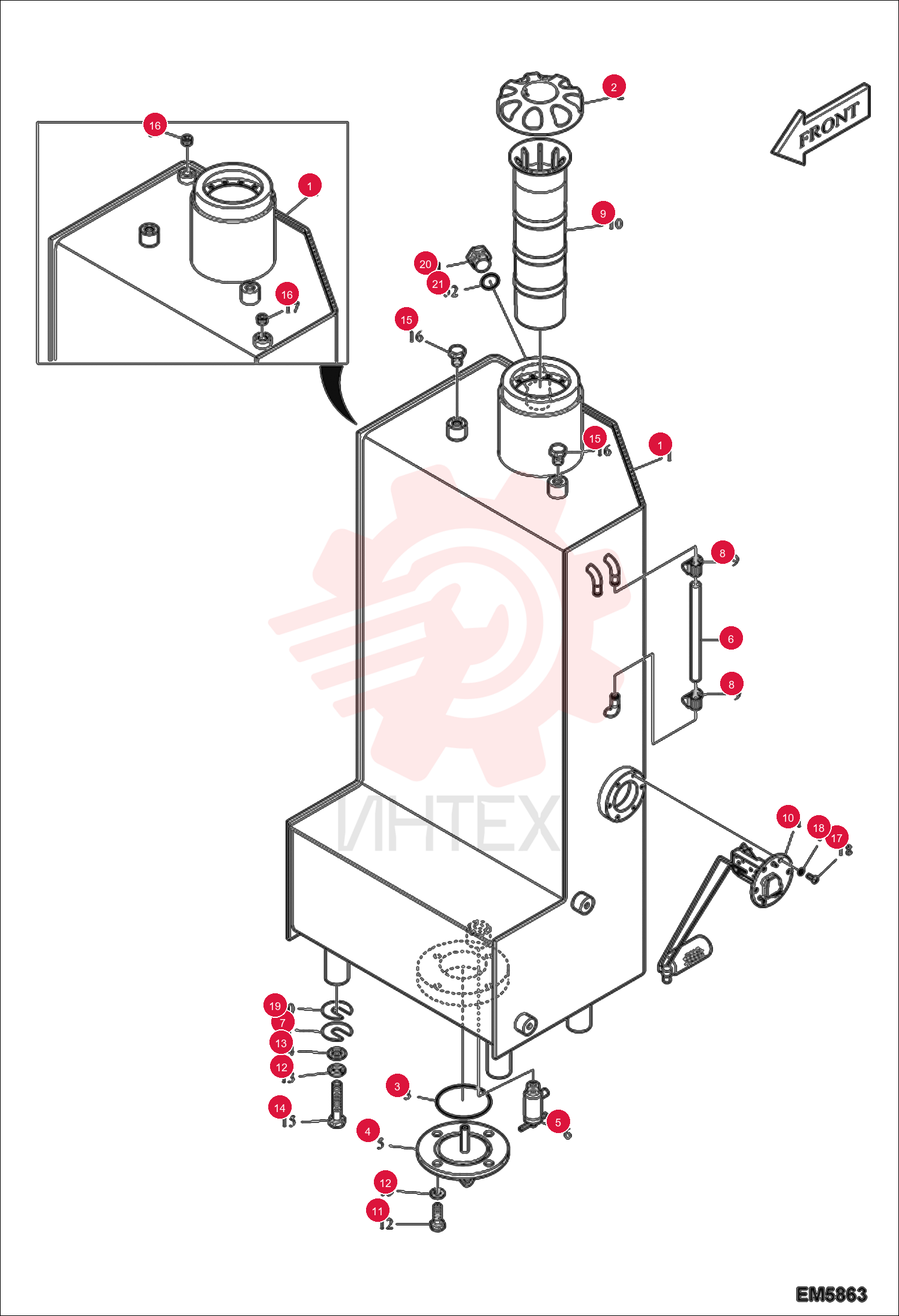

TANK, FUEL 7023686

TANK, FUEL 7023686

TANK, FUEL 7023686

1 7023686

  • 7023686 - TANK
  • FUEL
  • Was 7012241

2 7028866

  • 7028866 - CAP
  • DIESEL
  • Was 7005641

3 7004635

  • 7004635 - O-RING

4 7006525

  • 7006525 - COVER

5 7004801

  • 7004801 - FITTING COCK

6 7006236

  • 7006236 - HOSE FUEL LEVEL

7 7003859

  • 7003859 - SHIM

8 7007973

  • 7007973 - CLAMP

9 7004995

  • 7004995 - FILTER FUEL STRAINER

10 7021837

  • 7021837 - SENSOR
  • FUEL
  • Was 7005814

11 7007627

  • 7007627 - BOLT M10X1.5X22

12 7007835

  • 7007835 - WASHER SPRING

13 7007818

  • 7007818 - WASHER PLAIN M10

14 7024013

  • 7024013 - BOLT
  • Was 7007632

15 7007635

  • 7007635 - BOLT M12X1.75X16

16 7004673

  • 7004673 - PLUG
  • for tank #7006184 only

17 7007780

  • 7007780 - BOLT M5X0.8X12

18 7007827

  • 7007827 - WASHER SPRING

19 7006522

  • 7006522 - SHIM

20 7004736

  • 7004736 - PLUG

21 7284557

  • 7284557 - O-RING
  • Was 7007911
