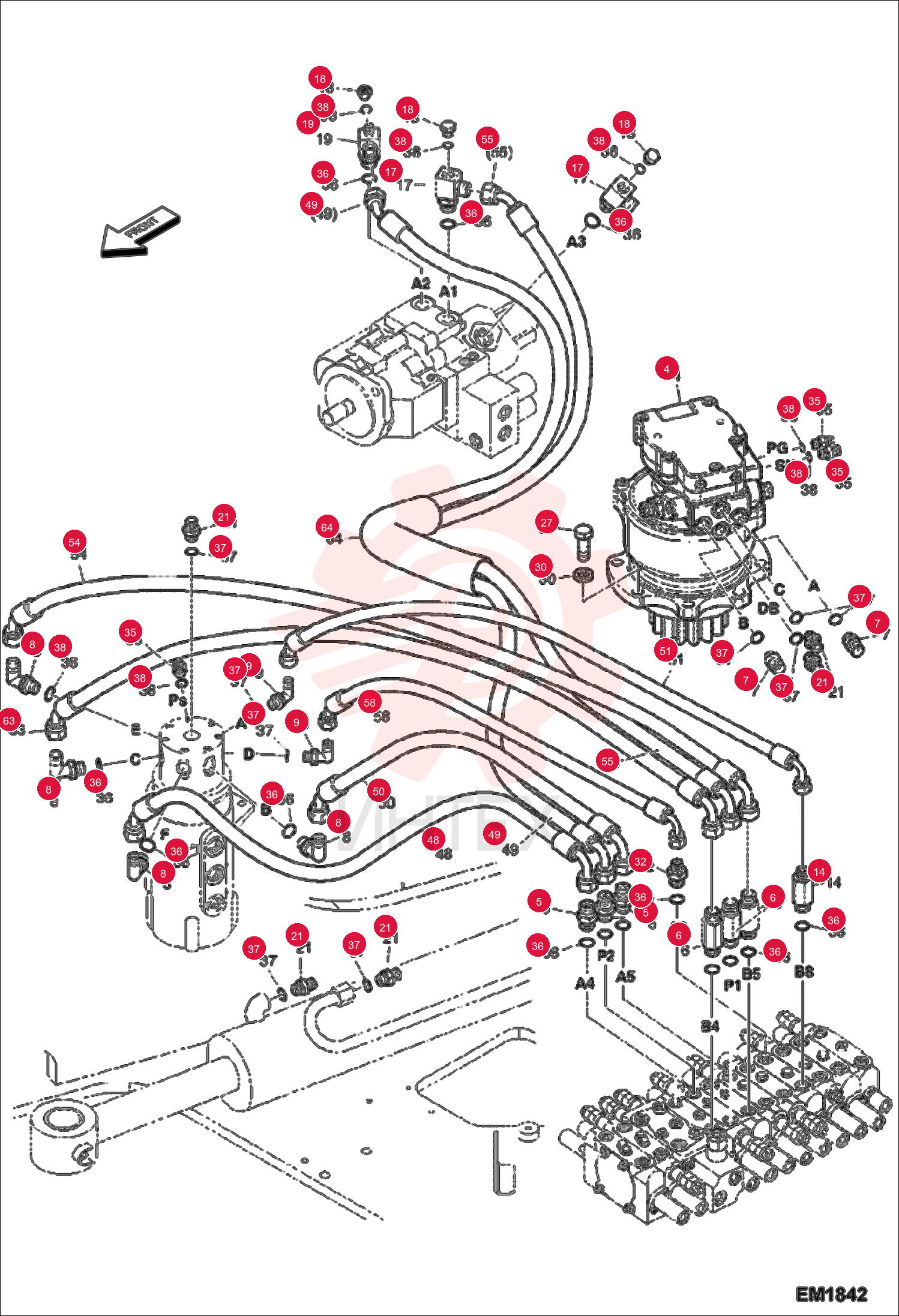

MOTOR SLEW 7019194 (1)

MOTOR SLEW 7019194 (1)

MOTOR SLEW 7019194 (1)

1 7019194

  • 7019194 - MOTOR SLEW
  • Was 7006713

2 7019194

  • 7019194 - MOTOR SLEW

3 7004699

  • 7004699 - ADAPTER

4 7004703

  • 7004703 - ADAPTER

5 7004680

  • 7004680 - ADAPTER

6 7004710

  • 7004710 - ELBOW

7 7004716

  • 7004716 - ELBOW

8 7004701

  • 7004701 - ADAPTER

9 7005564

  • 7005564 - TEE

10 7004732

  • 7004732 - PLUG

11 7006763

  • 7006763 - TEE

12 7004700

  • 7004700 - ADAPTER

13 7007774

  • 7007774 - BOLT

14 7030045

  • 7030045 - WASHER
  • SPRING

15 7004685

  • 7004685 - ADAPTER

16 7004683

  • 7004683 - ADAPTER

17 7284557

  • 7284557 - O-RING
  • Was 7007911

18 7284551

  • 7284551 - O-RING
  • Was 7007909

19 7283267

  • 7283267 - O-RING
  • Was 7007906

20 7005220

  • 7005220 - HOSE

21 7005234

  • 7005234 - HOSE

22 7022864

  • 7022864 - HOSE HYDRAULIC ASSY

23 7005232

  • 7005232 - HOSE

24 7005208

  • 7005208 - HOSE

25 7005223

  • 7005223 - HOSE

26 7005233

  • 7005233 - HOSE

27 7022865

  • 7022865 - HOSE HYDRAULIC ASSY

28 7005207

  • 7005207 - HOSE

29 7005224

  • 7005224 - HOSE

30 7006572

  • 7006572 - GUARD PROTECTOR
