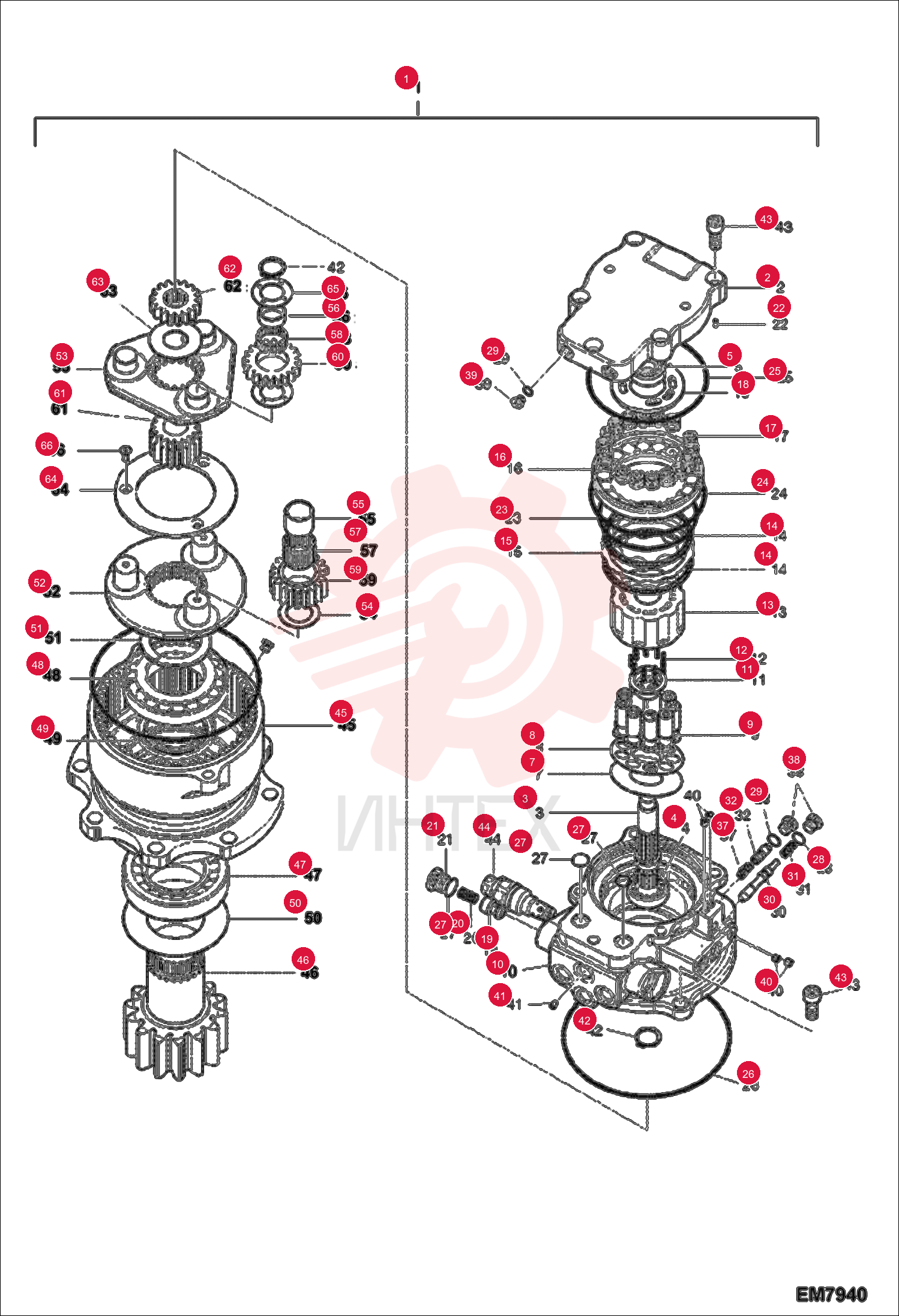

MOTOR SLEW 7019194 (2)

MOTOR SLEW 7019194 (2)

MOTOR SLEW 7019194 (2)

1 7019194

  • 7019194 - MOTOR SLEW
  • W/Ref. 2-66

2 7007222

  • 7007222 - HOUSING VALVE

3 7007223

  • 7007223 - SHAFT DRIVE

4 7007234

  • 7007234 - BEARING ROLLER

5 7003701

  • 7003701 - BEARING BALL

6 7007237

  • 7007237 - PLATE SHOE

7 7007238

  • 7007238 - PLATE RETAINER

8 7007236

  • 7007236 - PISTON ASSEMBLY

9 7007221

  • 7007221 - HOUSING

10 7007239

  • 7007239 - BUSHING SPHERICAL

11 7007201

  • 7007201 - SPRING CYLINDER

12 7007214

  • 7007214 - BLOCK CYLINDER

13 7007215

  • 7007215 - PLATE FRICTION

14 7007216

  • 7007216 - PLATE SEPARATION

15 7007224

  • 7007224 - PISTON BRAKE

16 7007225

  • 7007225 - SPRING BRAKE

17 7007217

  • 7007217 - PLATE VALVE

18 7007218

  • 7007218 - ROLLER PLUNGER

19 7007219

  • 7007219 - SPRING CHECK

20 7007199

  • 7007199 - PLUG

21 7007858

  • 7007858 - PIN SPRING

22 7004655

  • 7004655 - O-RING

23 7004656

  • 7004656 - O-RING

24 7004657

  • 7004657 - O-RING

25 7004661

  • 7004661 - O-RING

26 7007910

  • 7007910 - O-RING

27 7283267

  • 7283267 - O-RING
  • Was 7007906

28 7007903

  • 7007903 - O-RING

29 7007226

  • 7007226 - SPOOL

30 7007229

  • 7007229 - SPRING

31 7007596

  • 7007596 - DIAPHRAGM PLUNGER ASSY

32 7007240

  • 7007240 - SPRING

33 7004727

  • 7004727 - PLUG

34 7004729

  • 7004729 - PLUG RO

35 7285285

  • 7285285 - PLUG
  • Was 7004672

36 7007200

  • 7007200 - ORIFICE

37 7007873

  • 7007873 - RING SNAP

38 7007760

  • 7007760 - BOLT SOCKET

39 7007450

  • 7007450 - VALVE RELIEF

40 7019195

  • 7019195 - HOUSING GEAR

41 7007228

  • 7007228 - SHAFT D PINION

42 7007451

  • 7007451 - BEARING TAPER ROLLER

43 7007452

  • 7007452 - BEARING TAPER ROLLER

44 7007231

  • 7007231 - SEAL OIL

45 7007202

  • 7007202 - COVER BEARING

46 7007203

  • 7007203 - COLLAR HALF

47 7007205

  • 7007205 - CARRIER NO.2

48 7007220

  • 7007220 - WASHER NO.3 THRUST

49 7007207

  • 7007207 - RING NO.2 INNER

50 7007206

  • 7007206 - RING NO.1 INNER

51 7007232

  • 7007232 - BEARING NEEDLE

52 7007233

  • 7007233 - BEARING NEEDLE

53 7007209

  • 7007209 - GEAR NO.2 PLANET

54 7007208

  • 7007208 - GEAR NO.1 PLANET

55 7007211

  • 7007211 - GEAR NO.2 SUN

56 7007210

  • 7007210 - GEAR NO.1 SUN

57 7007212

  • 7007212 - WASHER NO.1 THRUST

58 7007213

  • 7007213 - PLATE THRUST

59 7007325

  • 7007325 - WASHER THRUST

60 7007326

  • 7007326 - BOLT
