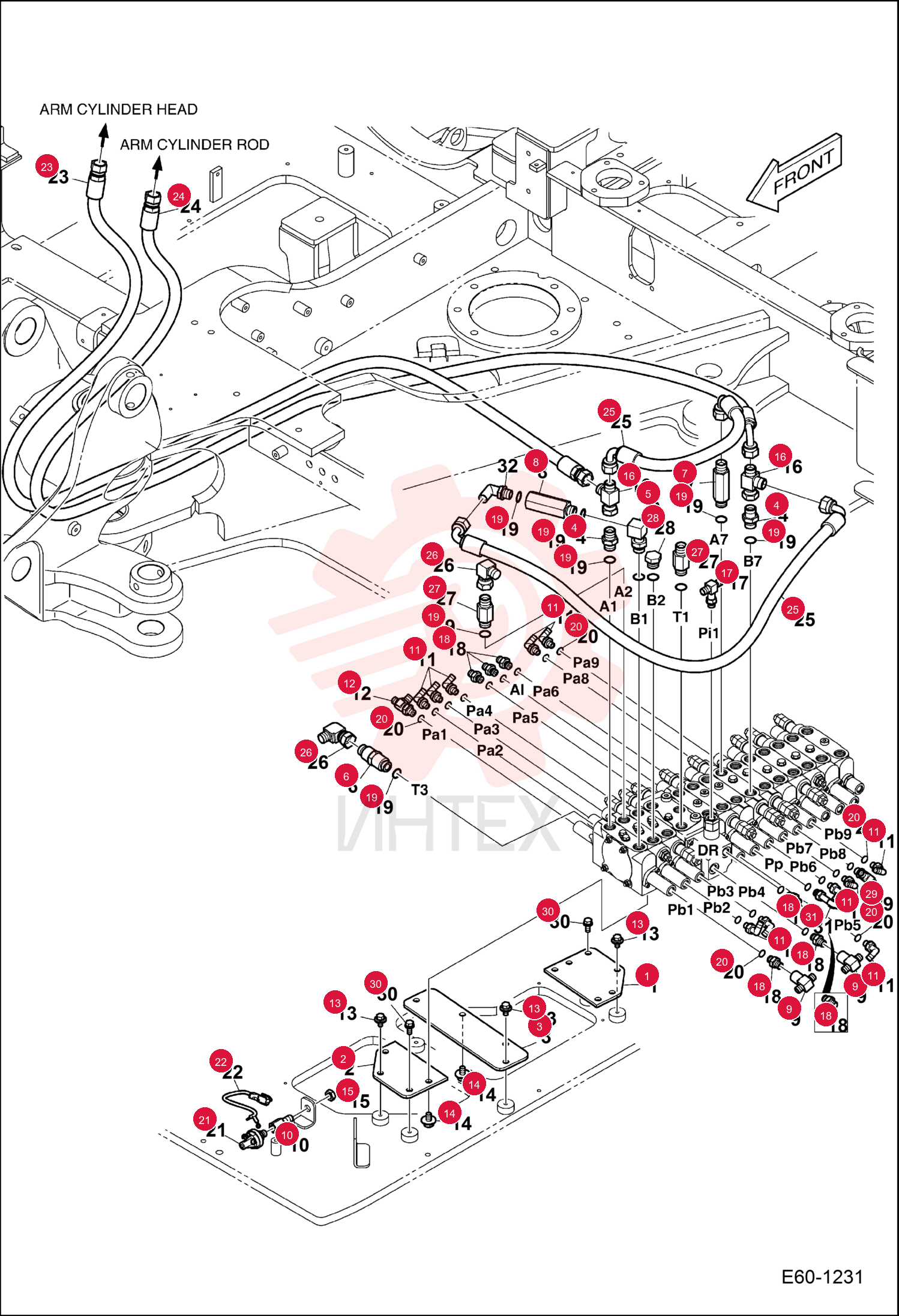

PLATE 7024708

PLATE 7024708

PLATE 7024708

1 7024708

  • 7024708 - PLATE

2 7024709

  • 7024709 - PLATE

3 7024710

  • 7024710 - PLATE

4 7004699

  • 7004699 - ADAPTER

5 7004753

  • 7004753 - ELBOW

6 7005541

  • 7005541 - ADAPTER

7 7005548

  • 7005548 - ADAPTER

8 7015589

  • 7015589 - VALVE
  • CHECK

9 7004768

  • 7004768 - TEE

10 7006550

  • 7006550 - REDUCER

11 7004713

  • 7004713 - ELBOW

12 7004738

  • 7004738 - TEE

13 7005129

  • 7005129 - BOLT SET

14 7005119

  • 7005119 - BOLT SET

15 7003878

  • 7003878 - NUT

16 7003961

  • 7003961 - TEE UNION

17 7005562

  • 7005562 - TEE

18 7004683

  • 7004683 - ADAPTER

19 7004683

  • 7004683 - ADAPTER

20 7284557

  • 7284557 - O-RING
  • Was 7007911

21 7283267

  • 7283267 - O-RING
  • Was 7007906

22 7006223

  • 7006223 - SWITCH PRESSURE

23 7005012

  • 7005012 - HARNESS JOINT

24 7019180

  • 7019180 - HOSE HYDRAULIC ASSY

25 7019180

  • 7019180 - HOSE HYDRAULIC ASSY

26 7019181

  • 7019181 - HOSE HYDRAULIC ASSY

27 7012236

  • 7012236 - HOSE

28 7003958

  • 7003958 - ELBOW

29 7005545

  • 7005545 - ADAPTER

30 7004736

  • 7004736 - PLUG

31 7024723

  • 7024723 - FITTING
  • TEE

32 7024711

  • 7024711 - BOLT

33 7022863

  • 7022863 - ELBOW
