Bobcat
/
E60
/

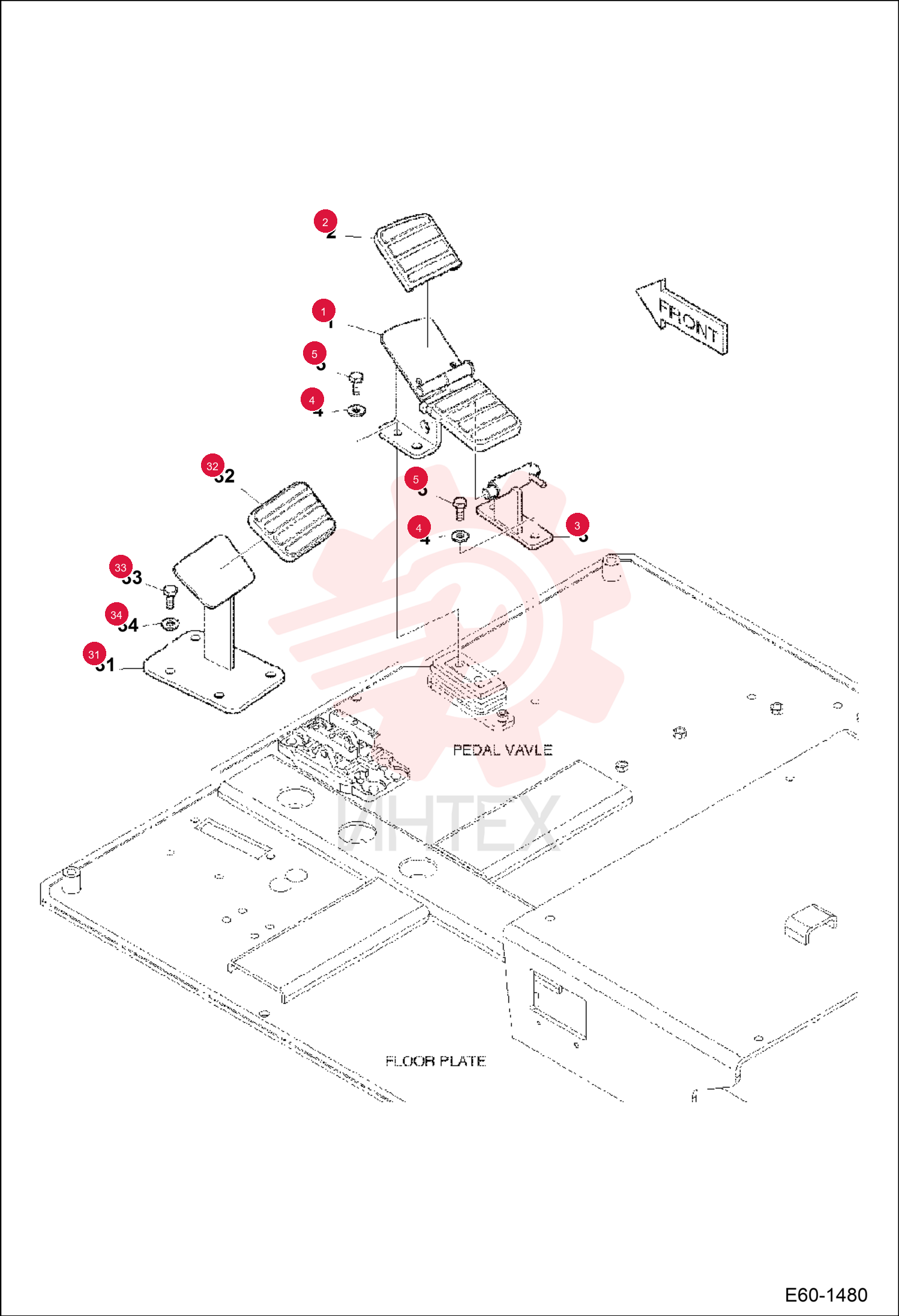

PEDAL ASSEMBLY 7023687

PEDAL ASSEMBLY 7023687

PEDAL ASSEMBLY 7023687

1 7023687

  • 7023687 - PEDAL ASSEMBLY
  • Was 7006706

2 7023689

  • 7023689 - PEDAL ASSEMBLY

3 7006232

  • 7006232 - LATCH

4 7004515

  • 7004515 - WASHER

5 7004546

  • 7004546 - BOLT

6 7006442

  • 7006442 - BRACKET

7 7005644

  • 7005644 - PAD RUBBER PEDAL

8 7004546

  • 7004546 - BOLT

9 7004515

  • 7004515 - WASHER
