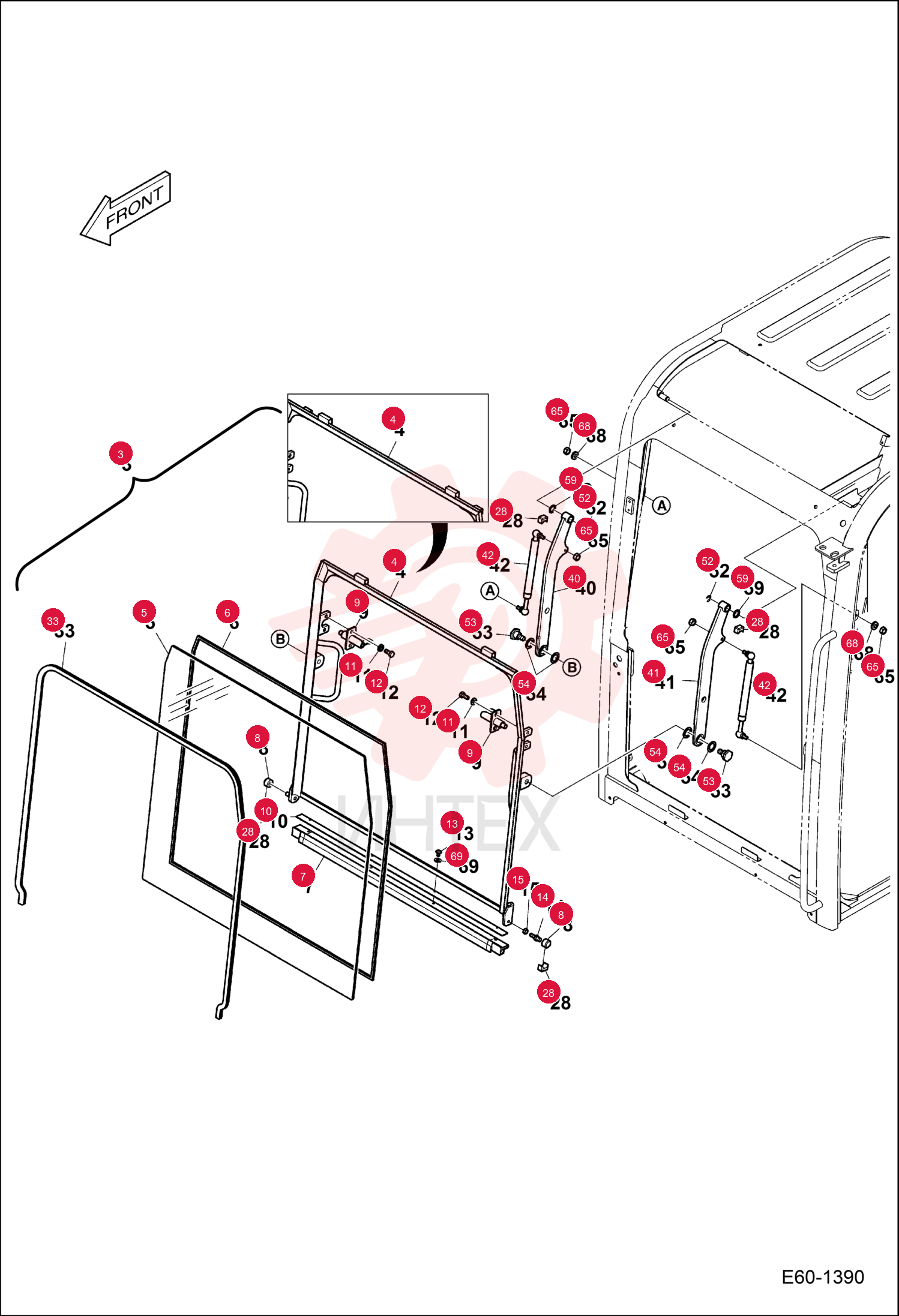

WINDOW, CAB SLIDING 7028994

WINDOW, CAB SLIDING 7028994

WINDOW, CAB SLIDING 7028994

1 7028994

  • 7028994 - WINDOW
  • CAB SLIDING
  • Ref. 4-15 - Was 7276880

2 7006077

  • 7006077 - GLASS
  • DOOR

3 7006078

  • 7006078 - DAMPER

4 7006079

  • 7006079 - EDGE
  • RUBBER

5 7004932

  • 7004932 - ROLLER

6 7020875

  • 7020875 - LATCH SLIDE DOOR

7 7005768

  • 7005768 - PLATE TRIM
  • Was 7005767

8 7004515

  • 7004515 - WASHER

9 7004546

  • 7004546 - BOLT

10 7007779

  • 7007779 - SCREW M5X0.8X10

11 7004548

  • 7004548 - BOLT

12 7006081

  • 7006081 - PIN

13 7004562

  • 7004562 - NUT

14 7003929

  • 7003929 - STOP
  • RUBBER

15 7006185

  • 7006185 - SEAL
  • EXTRUSION

16 7006189

  • 7006189 - BAR SLIDE DOOR RH
  • RH

17 7006190

  • 7006190 - BAR SLIDE DOOR LH
  • LH

18 7005144

  • 7005144 - CYLINDER
  • GAS

19 7007889

  • 7007889 - RING
  • SNAP

20 7006195

  • 7006195 - PIN

21 7005659

  • 7005659 - SHIM

22 7004487

  • 7004487 - SHIM

23 7004562

  • 7004562 - NUT

24 7004515

  • 7004515 - WASHER

25 7276763

  • 7276763 - WASHER
