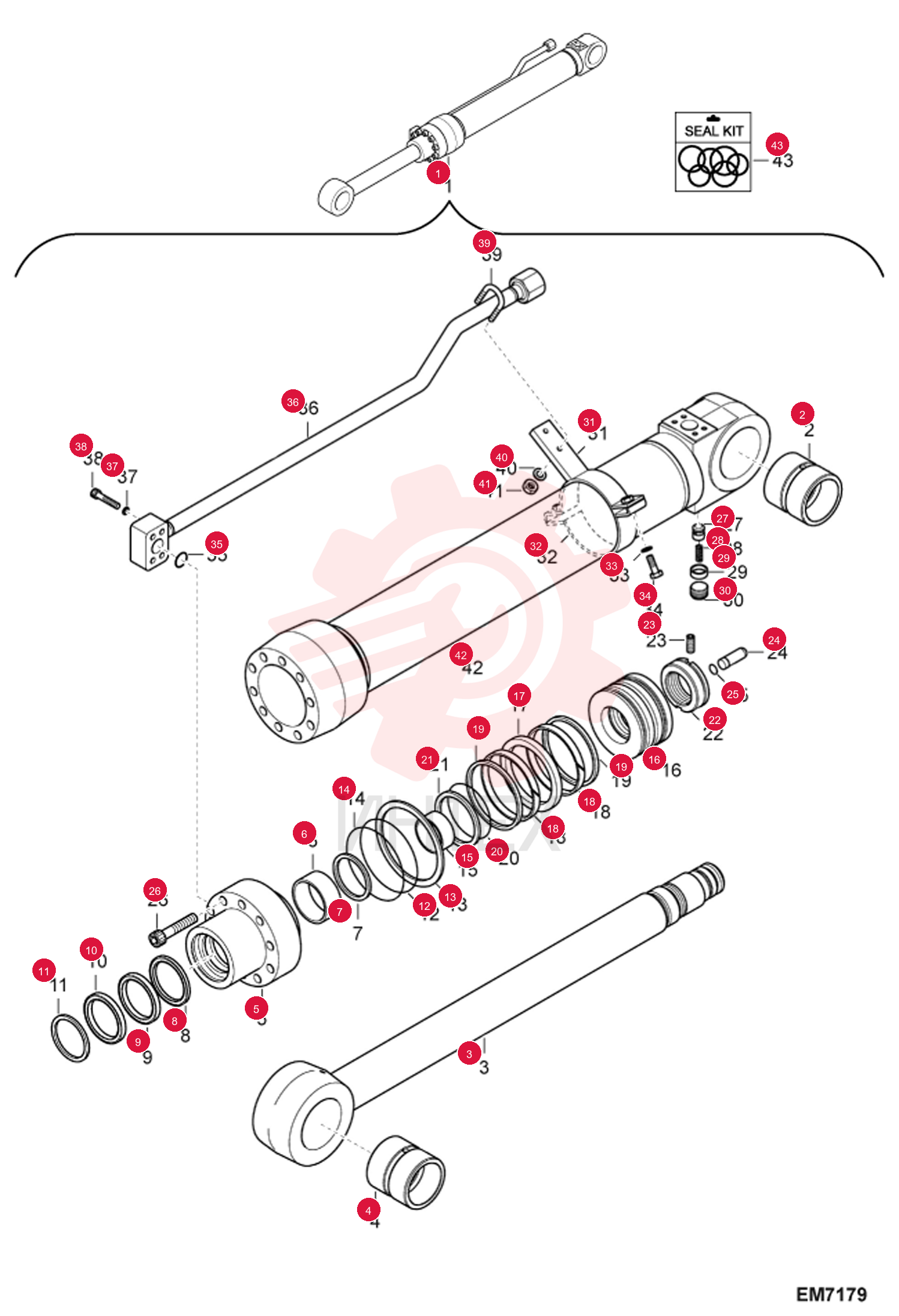

CYLINDER ARM 7012247 (3)
1 7012247
- 7012247 - CYLINDER ARM
- W/Ref. 2-42
2 7006005
- 7006005 - BUSHING
3 7007530
- 7007530 - ROD ASSEMBLY
4 7006005
- 7006005 - BUSHING
5 7007509
- 7007509 - COVER ROD
6 7003709
- 7003709 - BUSHING DD
7 7003722
- 7003722 - RING RETAINING
8 7003788
- 7003788 - SEAL BUFFER
9 7003758
- 7003758 - SEAL
10 7003791
- 7003791 - WIPER DUST
11 7003862
- 7003862 - RING RETAINING
12 7007944
- 7007944 - O-RING
13 7003766
- 7003766 - RING BACK-UP
14 7007945
- 7007945 - O-RING
15 7006835
- 7006835 - RING CUSHION
16 7006847
- 7006847 - PISTON
17 7003947
- 7003947 - SEAL SLIPPER
18 7007507
- 7007507 - RING WEAR
19 7007502
- 7007502 - RING DUST
20 7003755
- 7003755 - O-RING
21 7006829
- 7006829 - RING BACK-UP
22 7006830
- 7006830 - NUT PISTON
23 7007792
- 7007792 - SCREW SET
24 7003836
- 7003836 - DIAPHRAGM PLUNGER CUSHION
25 7003728
- 7003728 - RING STOP
26 7007772
- 7007772 - BOLT HEX SOCKET
27 7003826
- 7003826 - VALVE CHECK
28 7003742
- 7003742 - SPRING
29 7003824
- 7003824 - PLATE THRUST
30 7004674
- 7004674 - PLUG PT3/8
31 7007532
- 7007532 - TUBELINE BAND ASSY
32 7007508
- 7007508 - BAND TUBELINE
33 7007830
- 7007830 - WASHER SPRING
34 7007669
- 7007669 - BOLT
- Was 7014864
35 7007913
- 7007913 - O-RING
- Was 7007912
36 7007531
- 7007531 - TUBELINE ASSY-R
37 7007829
- 7007829 - WASHER
38 7007740
- 7007740 - BOLT SOCKET M8X45
39 7007505
- 7007505 - U-BOLT
40 7007829
- 7007829 - WASHER
41 7007769
- 7007769 - BOLT SOCKET
42 7007529
- 7007529 - TUBELINE ASSY
43 7007412
- 7007412 - KIT
- SEAL
- Ref. 8-10
- 12-14 & 17-21
