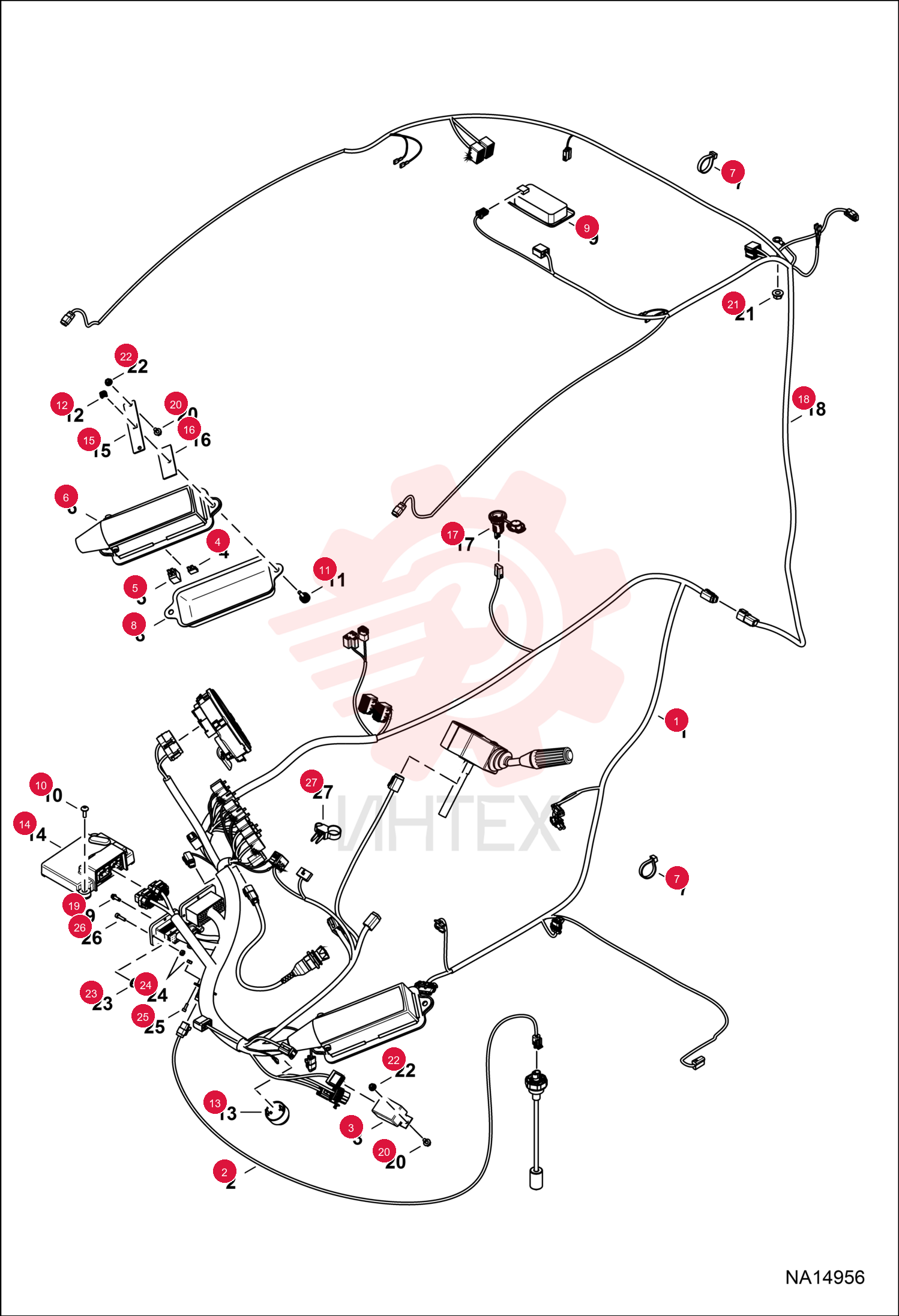

HARNESS CAB 7335642

HARNESS CAB 7335642

HARNESS CAB 7335642

1 7335642

  • 7335642 - HARNESS CAB

2 7271390

  • 7271390 - HARNESS

3 7172923

  • 7172923 - FLASHER UNIT

4 6654804

  • 6654804 - FUSE
  • 7.5 AMP

5 6654805

  • 6654805 - FUSE 10A

6 6654806

  • 6654806 - FUSE
  • 15A

7 6625575

  • 6625575 - FUSE
  • 20A

8 6702444

  • 6702444 - FUSE 25A 5

9 6679820

  • 6679820 - SWITCH
  • RELAY MAGNETIC

10 7155390

  • 7155390 - HOUSING
  • FUSE RELAY

11 6624289

  • 6624289 - STRAP
  • TIE

12 6716621

  • 6716621 - COVER
  • FUSE

13 7183631

  • 7183631 - BULB 12V

14 7146786

  • 7146786 - LIGHT DOME

15 7147106

  • 7147106 - SCREW HEX

16 7147128

  • 7147128 - LOCK PIN

17 7147206

  • 7147206 - NUT SQUARE

18 7169110

  • 7169110 - ALARM
  • BUZZER

19 7169178

  • 7169178 - CONTROLLER

20 7181350

  • 7181350 - PLATE

21 7188784

  • 7188784 - PLATE DASHBOARD

22 7303811

  • 7303811 - SOCKET POWER

23 7326339

  • 7326339 - HARNESS UPPER CAB

24 26GM5016

  • 26GM5016 - SCREW

25 29CM612

  • 29CM612 - BOLT
  • FLANGED

26 43DM10

  • 43DM10 - NUT FLANGED HEX

27 43DM6

  • 43DM6 - NUT FLANGED HEX

28 43DM8

  • 43DM8 - NUT FLANGED HEX

29 53DM4

  • 53DM4 - NUT

30 6GM412

  • 6GM412 - BOLT

31 6GM416

  • 6GM416 - SCREW

32 6678668

  • 6678668 - STRAP
