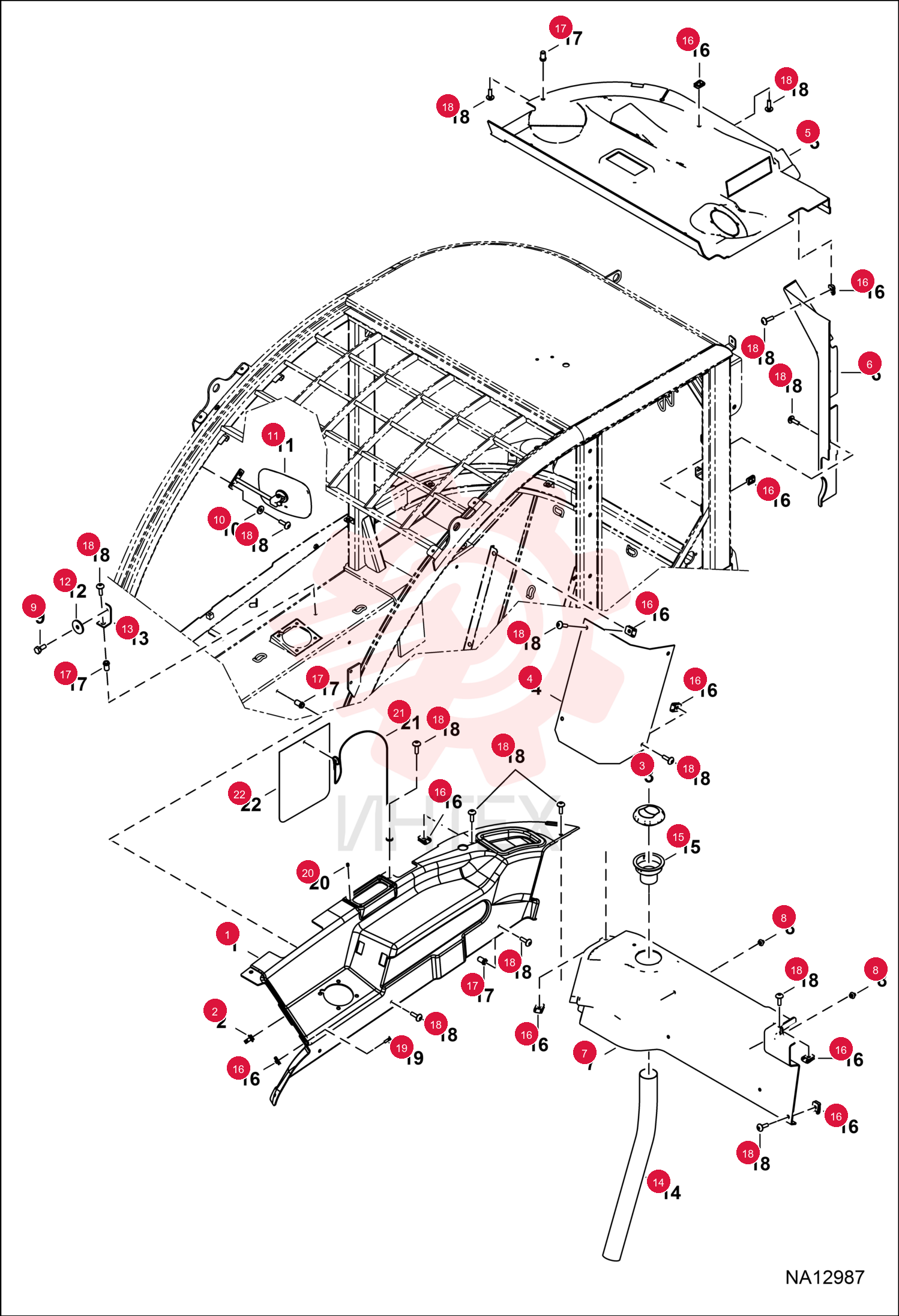

COVER RIGHT DASHBOARD 7294894

COVER RIGHT DASHBOARD 7294894

COVER RIGHT DASHBOARD 7294894

1 7294894

  • 7294894 - COVER RIGHT DASHBOARD

2 7147126

  • 7147126 - NUT LOCK

3 7146840

  • 7146840 - LOUVER HEATER

4 7146875

  • 7146875 - PLATE DASHBOARD

5 7146941

  • 7146941 - HEADLINER

6 7146942

  • 7146942 - COVER REAR

7 7146943

  • 7146943 - COVER REAR

8 7147125

  • 7147125 - NUT

9 4CM630

  • 4CM630 - BOLT

10 17EM60

  • 17EM60 - WASHER

11 7146957

  • 7146957 - MIRROR

12 7147214

  • 7147214 - WASHER SHIM

13 7147196

  • 7147196 - BRACKET DASHBOARD

14 7147208

  • 7147208 - PIPE AIR

15 7147135

  • 7147135 - SUPPORT LOUVER

16 7147099

  • 7147099 - CLIP NUT

17 7147103

  • 7147103 - INSERT THREADED

18 7147106

  • 7147106 - SCREW HEX

19 7186189

  • 7186189 - SCREW PAN

20 7186186

  • 7186186 - INSERT

21 7196224

  • 7196224 - CABLE
