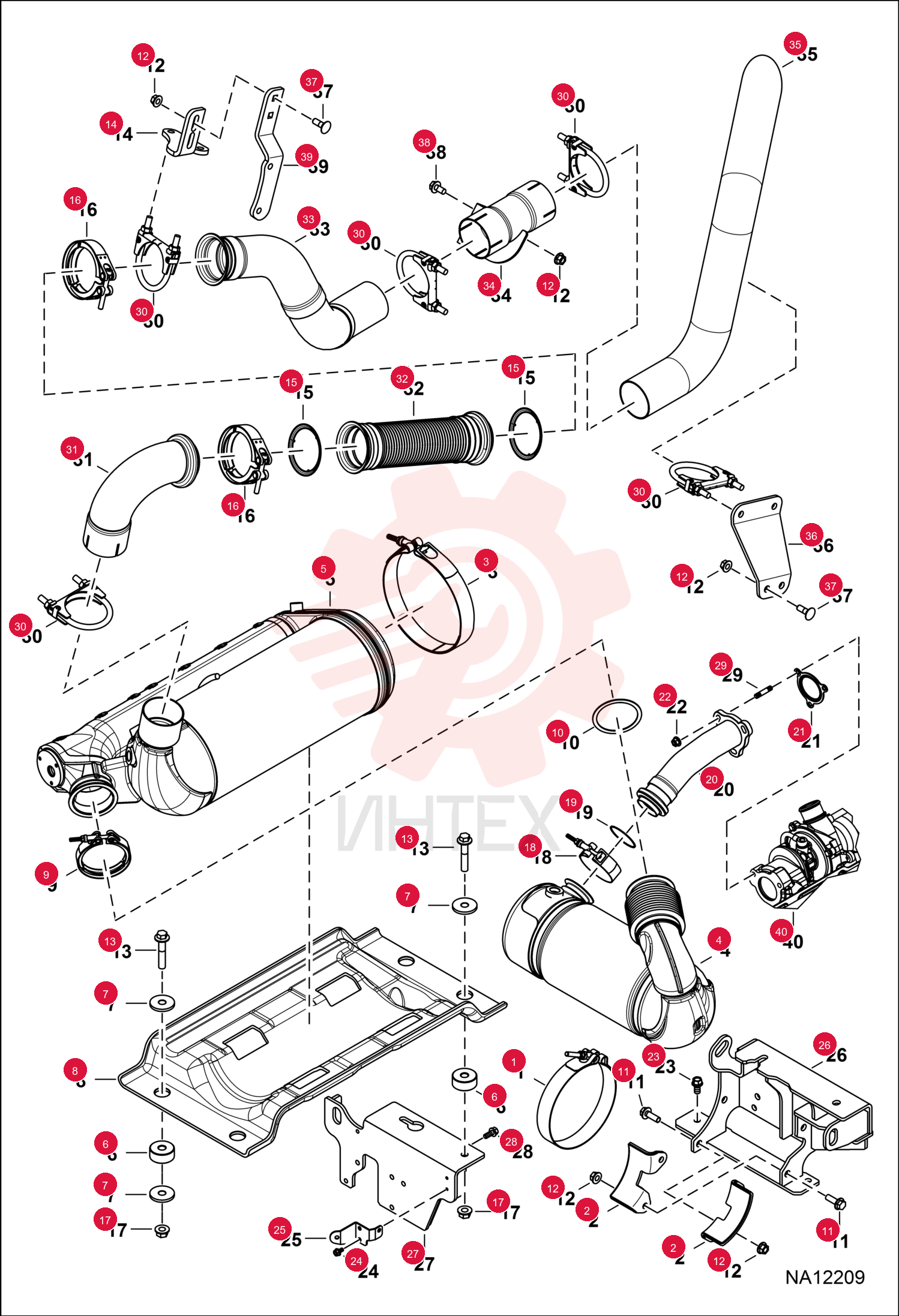

CLAMP PIPE 7301024

CLAMP PIPE 7301024

CLAMP PIPE 7301024

1 7301024

  • 7301024 - CLAMP PIPE

2 7229439

  • 7229439 - MOUNT
  • CLAMP

3 7300207

  • 7300207 - CLAMP SCR

4 7274088

  • 7274088 - DOC (DIESEL OXIDATION CATALYST)

5 7318171

  • 7318171 - ENGINE DOC DO 100HP

6 7274090

  • 7274090 - SCR ENGINE

7 7273457

  • 7273457 - SPACER

8 7274495

  • 7274495 - WASHER

9 7251485

  • 7251485 - MOUNT

10 7251486

  • 7251486 - CLAMP

11 7251487

  • 7251487 - GASKET

12 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP

13 43DM10

  • 43DM10 - NUT FLANGED HEX

14 30CM1265

  • 30CM1265 - SCREW

15 7307979

  • 7307979 - PLATE

16 7217471

  • 7217471 - GASKET EXHAUST

17 7265568

  • 7265568 - COUPLING ELEMENT

18 43DM12

  • 43DM12 - NUT HEX FLNG 10.0

19 7030341

  • 7030341 - GASKET TURBOCHARGER

20 7030370

  • 7030370 - NUT

21 7030281

  • 7030281 - BOLT

22 7030274

  • 7030274 - BOLT

23 7256707

  • 7256707 - BRACKET
  • HARNESS

24 7298816

  • 7298816 - BRACKET

25 7298817

  • 7298817 - BRACKET

26 7030272

  • 7030272 - BOLT

27 7256728

  • 7256728 - STUD

28 7277763

  • 7277763 - CLAMP

29 7282623

  • 7282623 - TUBE EXHAUST

30 7310970

  • 7310970 - EXHAUST FLEX

31 7282757

  • 7282757 - TUBE EXHAUST

32 7286147

  • 7286147 - EXHAUST
  • TUBE

33 7296049

  • 7296049 - EXHAUST
  • TUBE

34 7307761

  • 7307761 - SUPPORT EXHAUST

35 33CM1030

  • 33CM1030 - BOLT

36 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

37 7307741

  • 7307741 - PLATE
