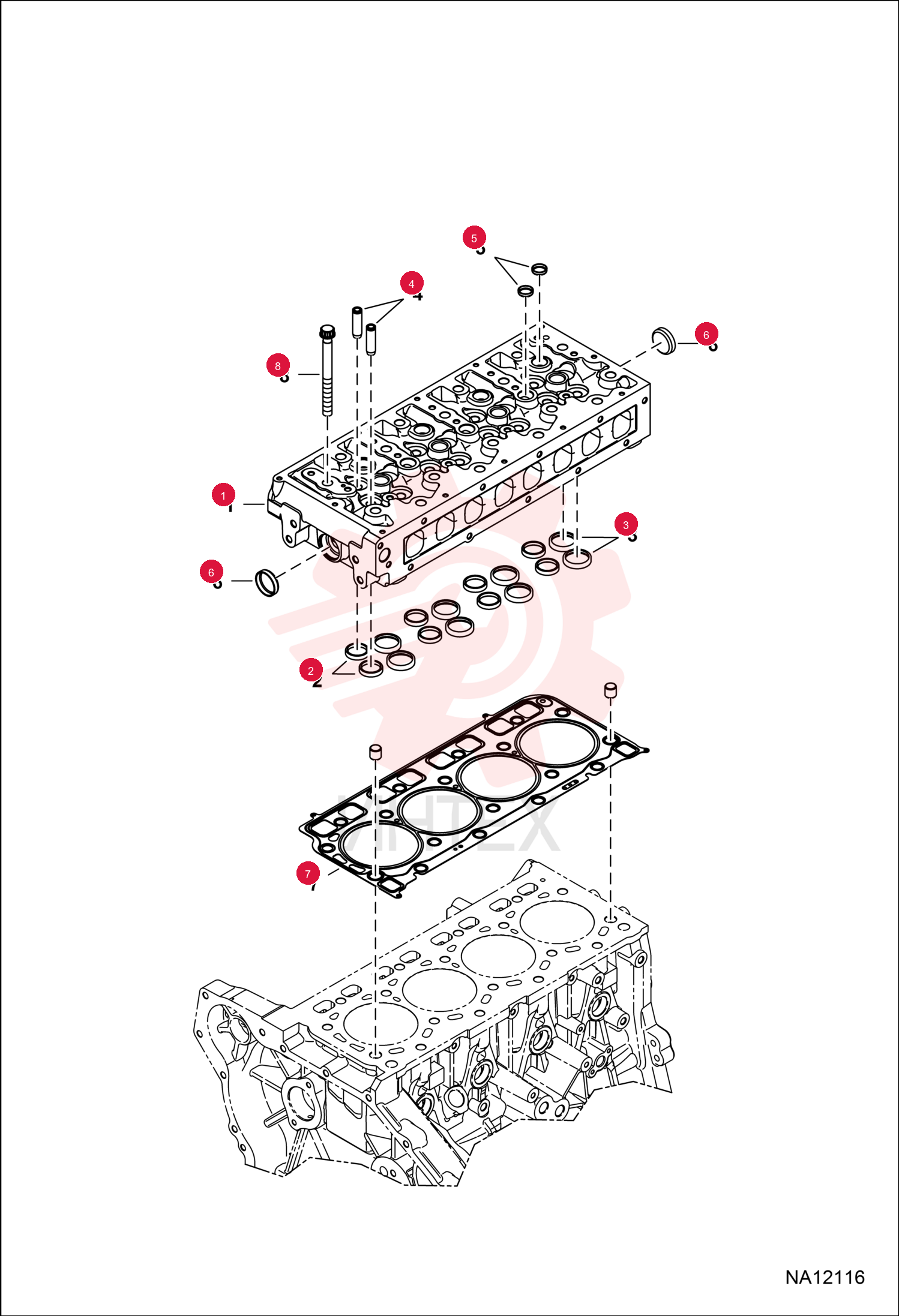

HEAD CYLINDER ENGINE 7298788

HEAD CYLINDER ENGINE 7298788

HEAD CYLINDER ENGINE 7298788

1 7298788

  • 7298788 - HEAD CYLINDER ENGINE

2 7256802

  • 7256802 - SEAT
  • VALVE

3 7256803

  • 7256803 - SEAT
  • VALVE

4 7030348

  • 7030348 - GUIDE
  • VALVE

5 7030402

  • 7030402 - PLUG

6 7030328

  • 7030328 - CUP
  • SEAL

7 7261691

  • 7261691 - GASKET
  • HEAD CLASS C

8 7261690

  • 7261690 - GASKET
  • HEAD CLASS B

9 7261689

  • 7261689 - GASKET
  • HEAD CLASS A

10 7256720

  • 7256720 - BOLT
