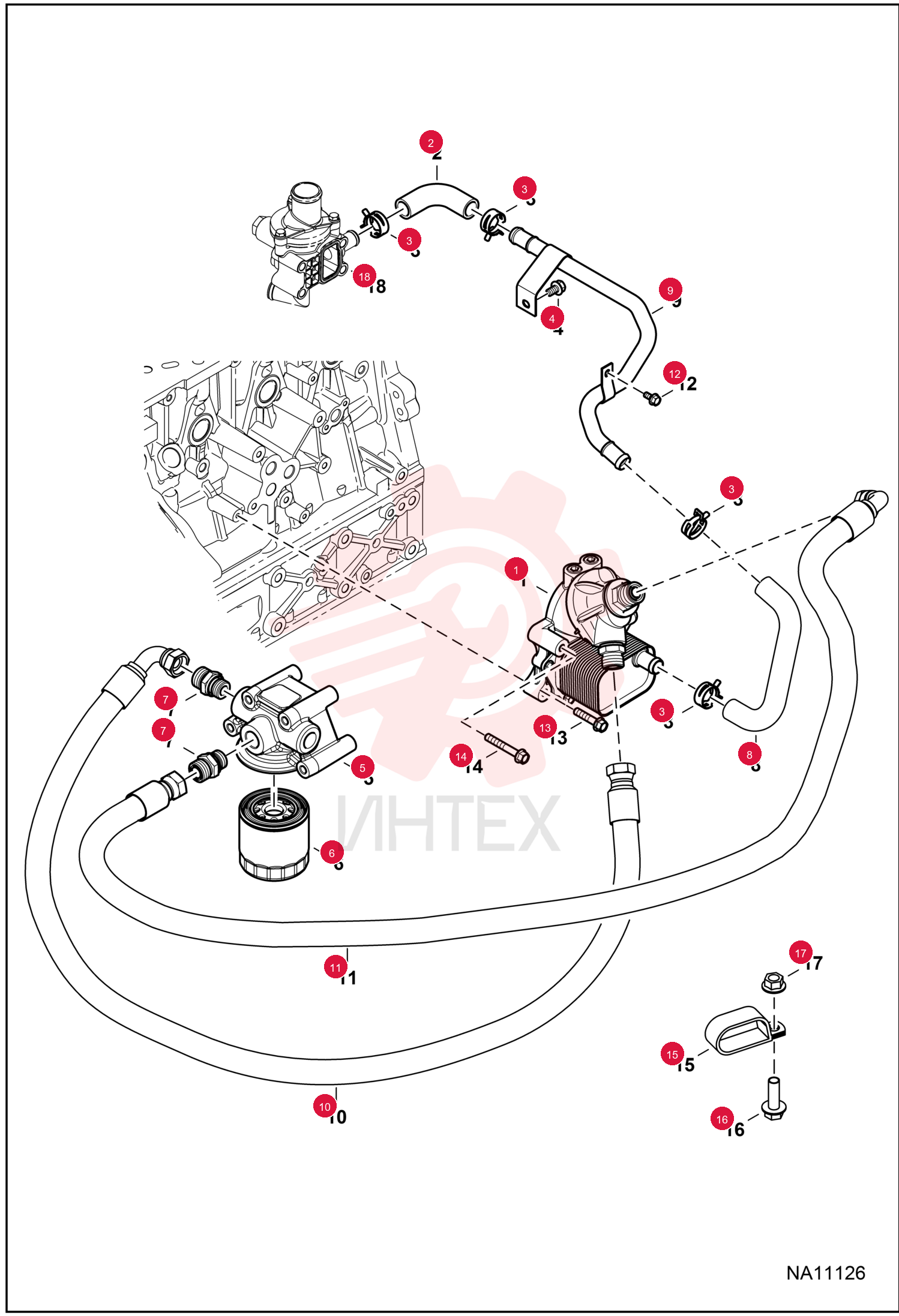

HOSE 7256813

HOSE 7256813

HOSE 7256813

1 7256813

  • 7256813 - HOSE

2 7030305

  • 7030305 - CLAMP
  • HOSE

3 7030278

  • 7030278 - BOLT

4 7308571

  • 7308571 - HEAD ASSY OIL FILTER

5 7012303

  • 7012303 - FILTER
  • OIL ENG

6 7298798

  • 7298798 - ADAPTER

7 7359104

  • 7359104 - HOSE FORMED

8 7298799

  • 7298799 - HOSE
  • WATER

9 7348799

  • 7348799 - PIPE ASSY COOLING WATER

10 7298800

  • 7298800 - PIPE
  • WATER

11 7277419

  • 7277419 - HOSE
  • OIL

12 7277420

  • 7277420 - HOSE
  • OIL

13 7256717

  • 7256717 - BOLT

14 7030279

  • 7030279 - BOLT

15 7030283

  • 7030283 - BOLT

16 31H49

  • 31H49 - CLAMP

17 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP

18 43DM10

  • 43DM10 - NUT FLANGED HEX
