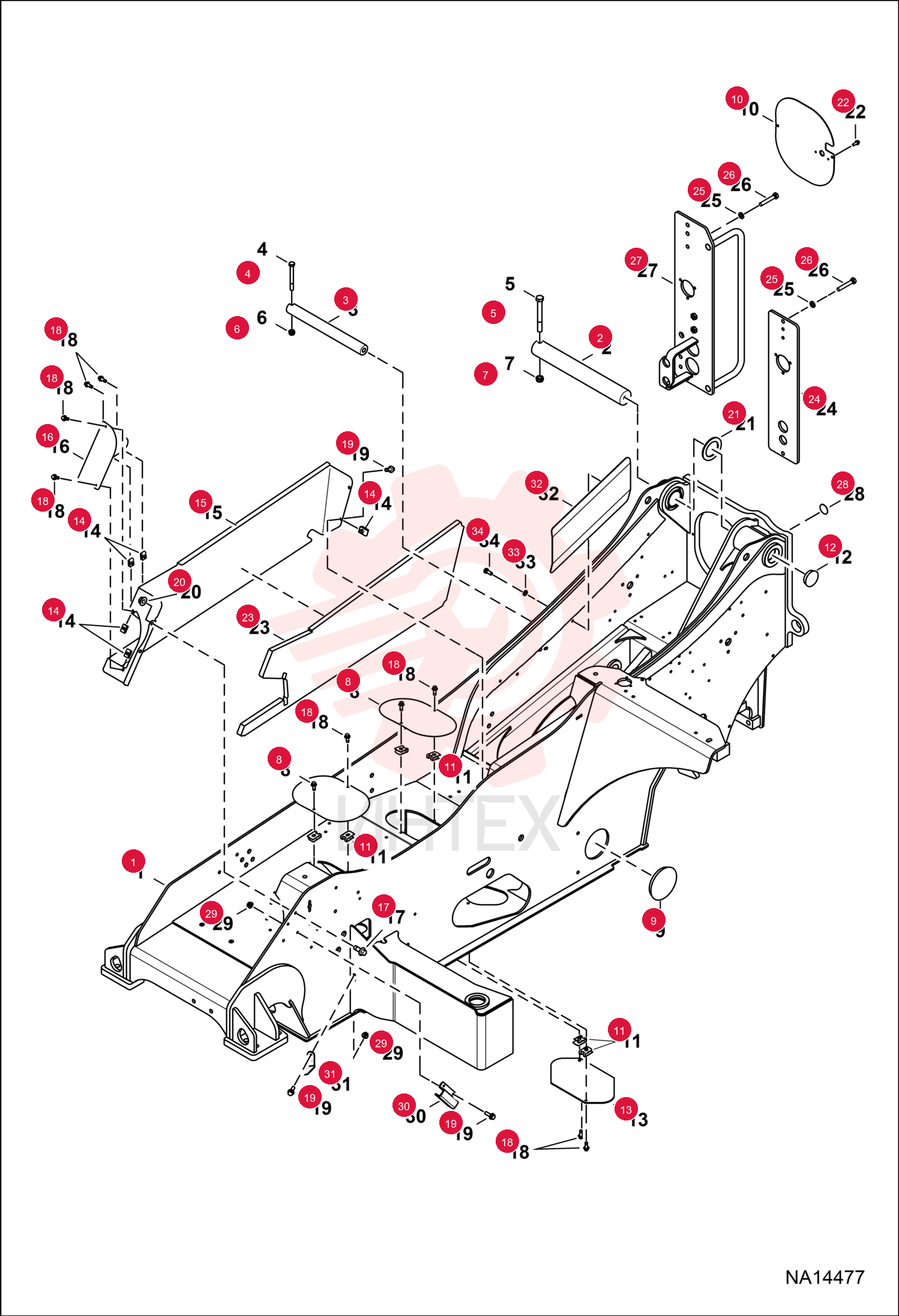

MAIN FRAME 7335129-GB

MAIN FRAME 7335129-GB

MAIN FRAME 7335129-GB

1 7335129-GB

  • 7335129-GB - MAIN FRAME

2 7149051

  • 7149051 - PIN

3 7362787

  • 7362787 - PIN BOOM CYLINDER

4 1CM12110

  • 1CM12110 - BOLT

5 1CM12120

  • 1CM12120 - SCREW

6 1CM16130

  • 1CM16130 - SCREW HEX HEAD

7 1CM16150

  • 1CM16150 - SCREW

8 7345105

  • 7345105 - NUT LOCK

9 4DM12

  • 4DM12 - NUT HEX

10 7245395

  • 7245395 - NUT LOCK

11 4DM16

  • 4DM16 - NUT

12 7170403-GB

  • 7170403-GB - COVER
  • TOP

13 7171277

  • 7171277 - COVER

14 7235986-GB

  • 7235986-GB - COVER REAR

15 7183235

  • 7183235 - NUT

16 7186798

  • 7186798 - COVER PLASTIC

17 7209910

  • 7209910 - COVER
  • BOTTOM

18 6676169

  • 6676169 - NUT

19 7191917-GB

  • 7191917-GB - COVER PLATE

20 7191918-GB

  • 7191918-GB - COVER PLATE

21 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

22 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

23 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

24 43DM10

  • 43DM10 - NUT FLANGED HEX

25 13EM7520

  • 13EM7520 - WASHER SHIM

26 13EM7510

  • 13EM7510 - WASHER SHIM

27 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

28 7204079

  • 7204079 - INSULATION FOAM

29 7234634-GB

  • 7234634-GB - PLATE

30 1EM80

  • 1EM80 - WASHER PLAIN

31 4CM850

  • 4CM850 - BOLT

32 7330845-GB

  • 7330845-GB - PLATE AUXILIARY

33 7306906

  • 7306906 - DECAL COVER

34 43DM8

  • 43DM8 - NUT FLANGED HEX

35 7192171

  • 7192171 - HOLDER

36 7308885

  • 7308885 - BRACKET BAR LOCK

37 7340048

  • 7340048 - PLATE SLIDE

38 1EM100

  • 1EM100 - WASHER PLAIN

39 4CM1025

  • 4CM1025 - SCREW
