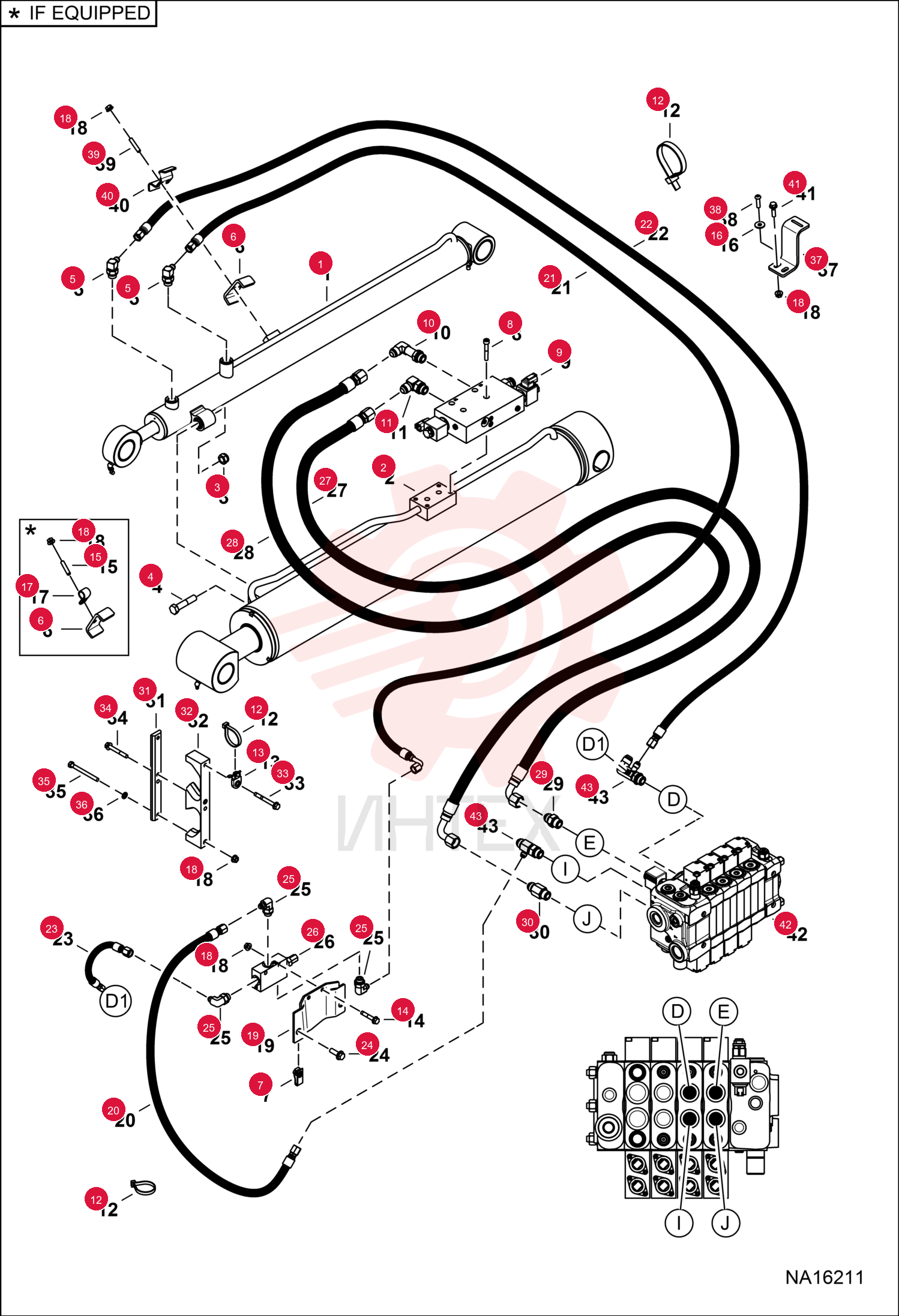

CYLINDER SELF LEVEL 7299215

CYLINDER SELF LEVEL 7299215

CYLINDER SELF LEVEL 7299215

1 7299215

  • 7299215 - CYLINDER SELF LEVEL

2 7354683

  • 7354683 - CYLINDER BOOM

3 7163242

  • 7163242 - CYLINDER LIFT

4 7260852

  • 7260852 - NUT

5 1CM1480

  • 1CM1480 - BOLT

6 17KB0608

  • 17KB0608 - FITTING
  • HYD ELBOW

7 79K8

  • 79K8 - O RING 10

8 7296921

  • 7296921 - BRACKET HOSE

9 6675722

  • 6675722 - NUT

10 6GM850

  • 6GM850 - SCREW

11 7332003

  • 7332003 - VALVE LOCK

12 7286779

  • 7286779 - O-RING

13 6519195

  • 6519195 - ELBOW

14 79K10

  • 79K10 - O RING 10

15 17KB1010

  • 17KB1010 - FTG HYD ELBOW 90

16 79K10

  • 79K10 - O RING 10

17 6624289

  • 6624289 - STRAP
  • TIE

18 6684641

  • 6684641 - MOUNT

19 29CM845

  • 29CM845 - SCREW HEX FLANGE

20 30H38

  • 30H38 - CLIP

21 43DM8

  • 43DM8 - NUT FLANGED HEX

22 7324704

  • 7324704 - PLATE BASE

23 7354236

  • 7354236 - HOSE HYDRAULIC ASSY

24 7355366

  • 7355366 - HOSE HYDRAULIC ASSY

25 7355367

  • 7355367 - HOSE HYDRAULIC ASSY

26 7348592

  • 7348592 - HOSE HYDRAULIC

27 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP

28 7247423

  • 7247423 - FITTING ELBOW

29 7168745

  • 7168745 - VALVE
  • BALANCING

30 7345333

  • 7345333 - HOSE HYDRAULIC

31 7355181

  • 7355181 - HOSE HYDRAULIC ASSY

32 15KB1010

  • 15KB1010 - FITTING
  • HYD CONNECTOR

33 79K10

  • 79K10 - O RING 10

34 7169182

  • 7169182 - FITTING HYDRAULIC

35 79K10

  • 79K10 - O RING 10

36 7327590

  • 7327590 - PLATE CLAMP

37 7315898

  • 7315898 - CLAMP HOSE

38 29CM870

  • 29CM870 - BOLT

39 29CM860

  • 29CM860 - BOLT

40 4CM890

  • 4CM890 - SCREW

41 1EM80

  • 1EM80 - WASHER PLAIN

42 7355323

  • 7355323 - PLATE HOSES HOLDER

43 15GM840

  • 15GM840 - SCREW
  • SET

44 7357427

  • 7357427 - PLATE CLAMP

45 29CM830

  • 29CM830 - SCREW HEX
