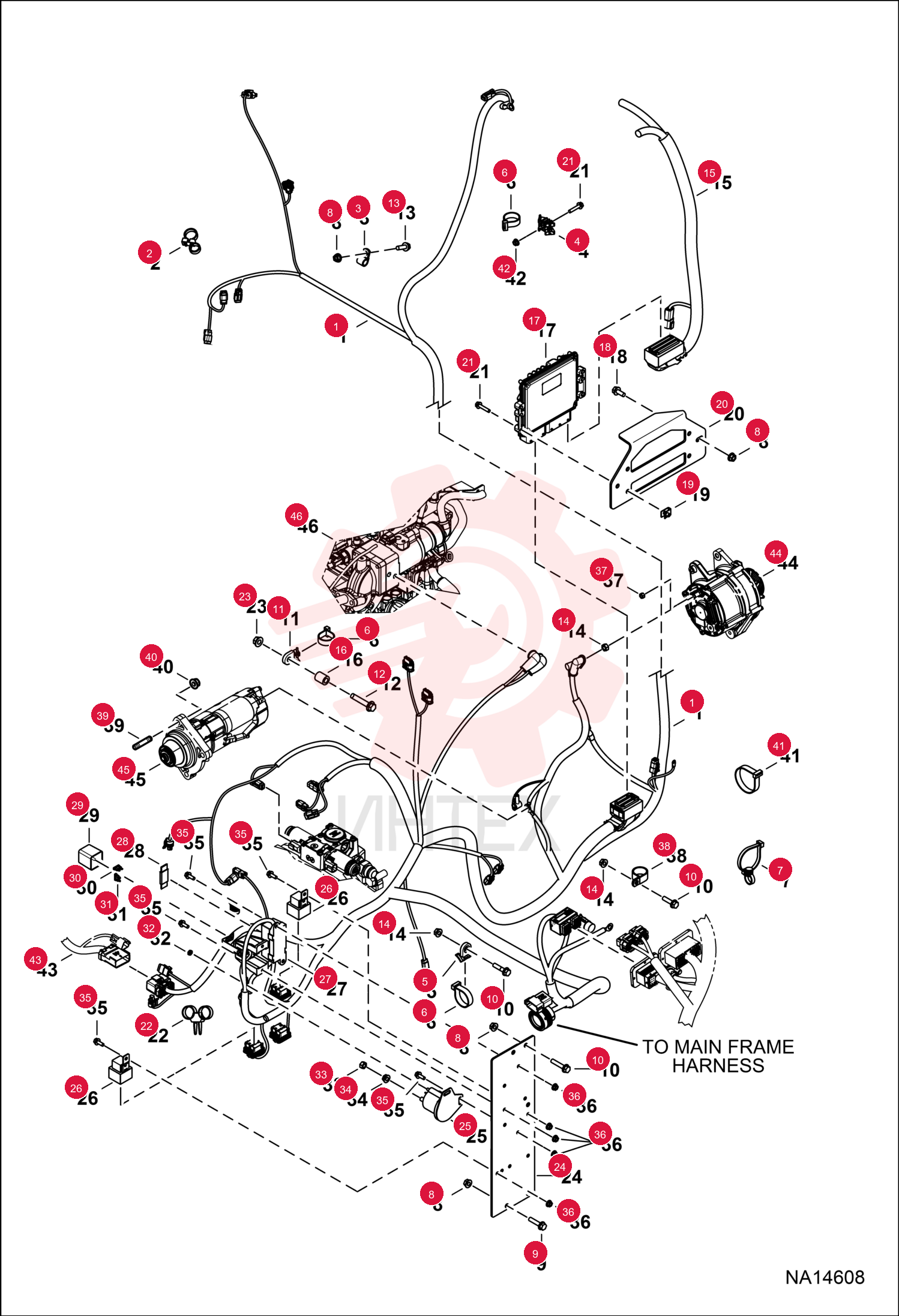

HARNESS ENGINE 7335651

HARNESS ENGINE 7335651

HARNESS ENGINE 7335651

1 7335651

  • 7335651 - HARNESS ENGINE

2 7257478

  • 7257478 - HARNESS ENGINE

3 7221316

  • 7221316 - STRAP
  • TIE DUAL

4 30H30

  • 30H30 - CLIP

5 6678974

  • 6678974 - MOUNT

6 6684641

  • 6684641 - MOUNT

7 6678669

  • 6678669 - STRAP T250 H/D

8 7231699

  • 7231699 - STRAP
  • DOUBLE

9 43DM8

  • 43DM8 - NUT FLANGED HEX

10 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

11 29CM830

  • 29CM830 - SCREW HEX

12 6679034

  • 6679034 - MOUNT

13 29CM1055

  • 29CM1055 - BOLT

14 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

15 43DM8

  • 43DM8 - NUT FLANGED HEX

16 7298818

  • 7298818 - HARNESS ENGINE

17 7344433

  • 7344433 - HARNESS ENGINE

18 7283495

  • 7283495 - SPACER

19 7030329

  • 7030329 - ECU

20 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

21 7192660

  • 7192660 - NUT

22 7307768

  • 7307768 - SUPPORT ECU

23 29CM630

  • 29CM630 - SCREW FLGD HEX CAP

24 6678668

  • 6678668 - STRAP

25 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

26 7226750

  • 7226750 - BRACKET
  • FUSE

27 6691625

  • 6691625 - RELAY

28 6670312

  • 6670312 - SWITCH
  • MAGNETIC

29 6675154

  • 6675154 - HOLDER

30 7257488

  • 7257488 - FUSE

31 6665356

  • 6665356 - FUSEBLOCK

32 6707623

  • 6707623 - FUSE
  • 25A MINI 5

33 6707620

  • 6707620 - FUSE
  • 10A MINI 5

34 14D10

  • 14D10 - NUT HEX MACH SCREW

35 61D5

  • 61D5 - NUT HEX FINISHED GR5

36 55D5

  • 55D5 - NUT

37 29CM616

  • 29CM616 - SCREW FLGD HEX CAP

38 51DM6

  • 51DM6 - NUT HX THDLK PREAPPL

39 4DM5

  • 4DM5 - NUT HEXAGON M5

40 30H57

  • 30H57 - CLAMP

41 7287378

  • 7287378 - BOLT STUD

42 7288025

  • 7288025 - NUT FLANGE

43 6624289

  • 6624289 - STRAP
  • TIE

44 43DM6

  • 43DM6 - NUT FLANGED HEX
