Bobcat
/
V723
/

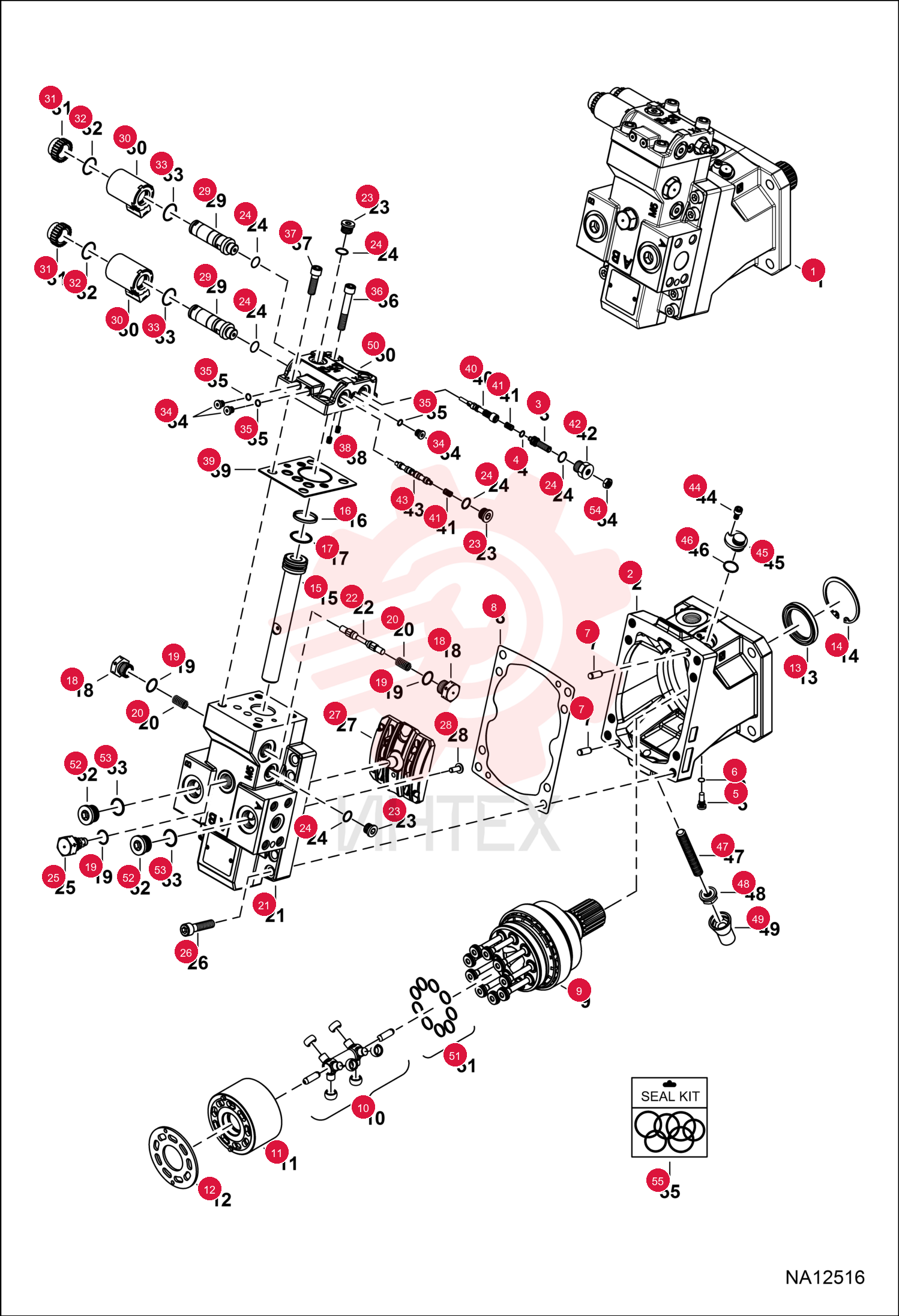

MOTOR HYDROSTATIC 7268123

MOTOR HYDROSTATIC 7268123

MOTOR HYDROSTATIC 7268123

1 7268123

  • 7268123 - MOTOR HYDROSTATIC

2 7013164

  • 7013164 - ADJUSTER

3 6661497

  • 6661497 - O-RING

4 7269699

  • 7269699 - PLUG

5 7031194

  • 7031194 - O-RING

6 7269698

  • 7269698 - PIN

7 7296056

  • 7296056 - GASKET

8 7296057

  • 7296057 - SHAFT

9 7296060

  • 7296060 - SHAFT

10 7296061

  • 7296061 - BLOCK
  • CYLINDER

11 6921598

  • 6921598 - BEARING PLATE

12 7013215

  • 7013215 - LIP SEAL

13 7296055

  • 7296055 - RING
  • RETAINING

14 7311487

  • 7311487 - PISTON CONTROL

15 7013219

  • 7013219 - SEAL
  • SERVO PISTON

16 7013220

  • 7013220 - O-RING

17 7303411

  • 7303411 - PLUG ASSEMBLY

18 7031200

  • 7031200 - O-RING

19 7031206

  • 7031206 - SPOOL

20 6921561

  • 6921561 - PLUG

21 6661481

  • 6661481 - O-RING

22 7031202

  • 7031202 - VALVE

23 7302638

  • 7302638 - SCREW

24 7295776

  • 7295776 - VALVE

25 7031208

  • 7031208 - SOCKET

26 7031209

  • 7031209 - SOLENOID

27 7031218

  • 7031218 - KIT COIL

28 7022520

  • 7022520 - PLUG

29 6664963

  • 6664963 - O-RING

30 7031212

  • 7031212 - SCREW

31 7031211

  • 7031211 - SCREW

32 7031216

  • 7031216 - PLUG

33 7031247

  • 7031247 - SEAL

34 7031213

  • 7031213 - SPOOL
  • VALVE

35 7031214

  • 7031214 - SPRING

36 7031215

  • 7031215 - SPOOL
  • VALVE

37 7269701

  • 7269701 - SCREW

38 7269703

  • 7269703 - PLUG

39 25K20020

  • 25K20020 - O RING 10

40 7031196

  • 7031196 - CAP

41 7311488

  • 7311488 - KIT RING PISTON

42 7031336

  • 7031336 - PLUG

43 7295351

  • 7295351 - KIT
  • SEAL
