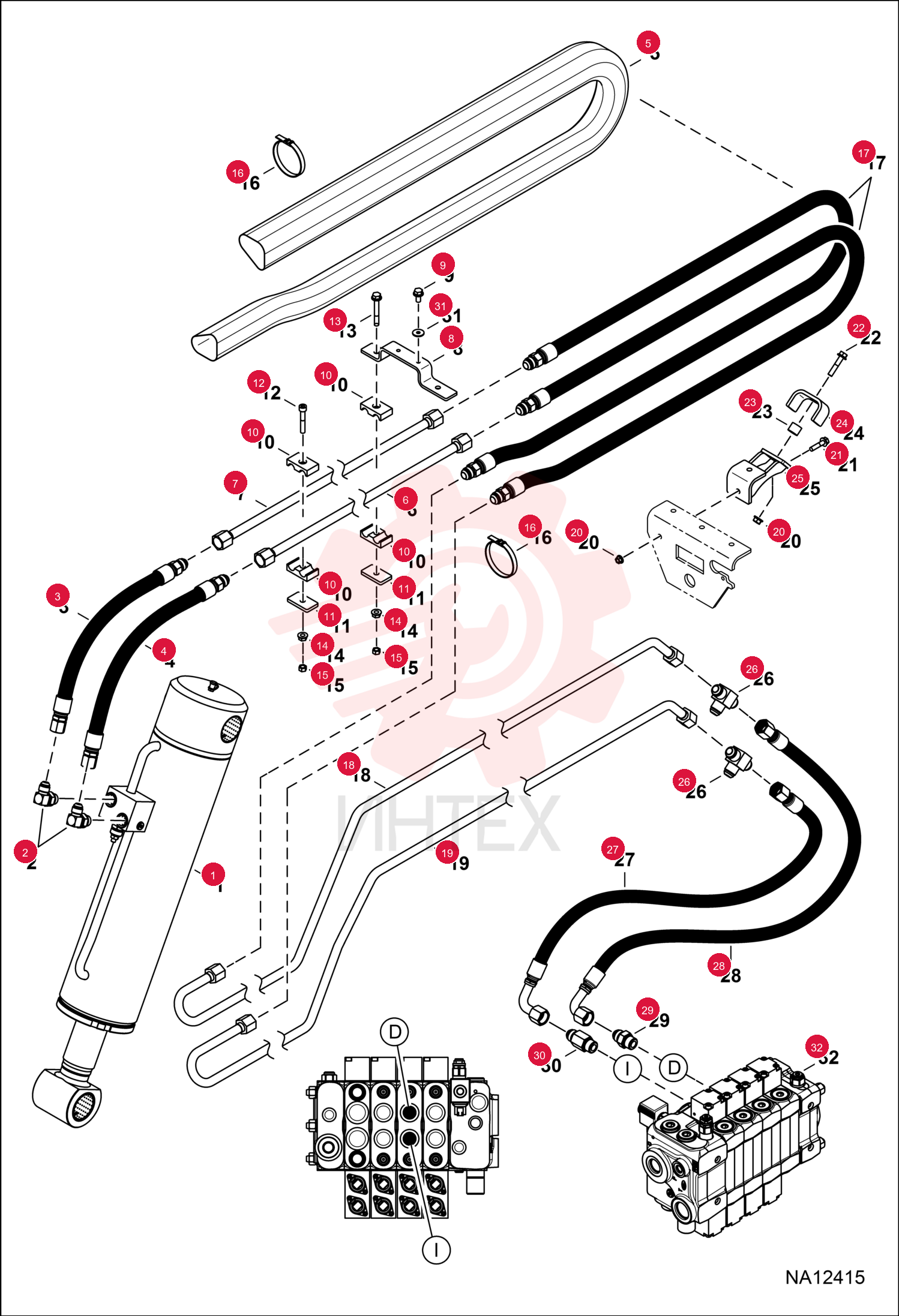

CYLINDER TILT 7271200 (1)

CYLINDER TILT 7271200 (1)

CYLINDER TILT 7271200 (1)

1 7271200

  • 7271200 - CYLINDER TILT

2 17KB0808

  • 17KB0808 - FTG HYD 90 ELBOW

3 79K8

  • 79K8 - O RING 10

4 7183205

  • 7183205 - HOSE HYDRAULIC ASSY

5 7183206

  • 7183206 - HOSE HYDRAULIC ASSY

6 7186884

  • 7186884 - SLEEVE BOOM HOSE

7 7316089

  • 7316089 - TUBELINE HYDRAULIC

8 7316088

  • 7316088 - TUBELINE HYDRAULIC

9 7182985

  • 7182985 - PLATE

10 59CM816

  • 59CM816 - BOLT

11 7303604

  • 7303604 - CLAMP TWIN

12 7303605

  • 7303605 - PLATE CLAMP

13 6GM850

  • 6GM850 - SCREW

14 29CM860

  • 29CM860 - BOLT

15 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

16 53DM8

  • 53DM8 - NUT HX THDLK PREAPPL

17 7194074

  • 7194074 - CABLE TIE

18 7253200

  • 7253200 - HOSE HYDRAULIC ASSY

19 7182987

  • 7182987 - TUBELINE HYDRAULIC

20 7182988

  • 7182988 - TUBELINE HYDRAULIC

21 43DM8

  • 43DM8 - NUT FLANGED HEX

22 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

23 29CM840

  • 29CM840 - SCREW FLGD HEX CAP

24 7250112

  • 7250112 - BRACKET

25 7250115

  • 7250115 - CLAMP

26 7250116

  • 7250116 - SPACER

27 10K7

  • 10K7 - TEE

28 7249696

  • 7249696 - HOSE HYDRAULIC ASSY

29 7249697

  • 7249697 - HOSE HYDRAULIC ASSY

30 15KB1010

  • 15KB1010 - FITTING
  • HYD CONNECTOR

31 79K10

  • 79K10 - O RING 10

32 79K10

  • 79K10 - O RING 10

33 7169182

  • 7169182 - FITTING HYDRAULIC

34 17EM80

  • 17EM80 - WASHER
