(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

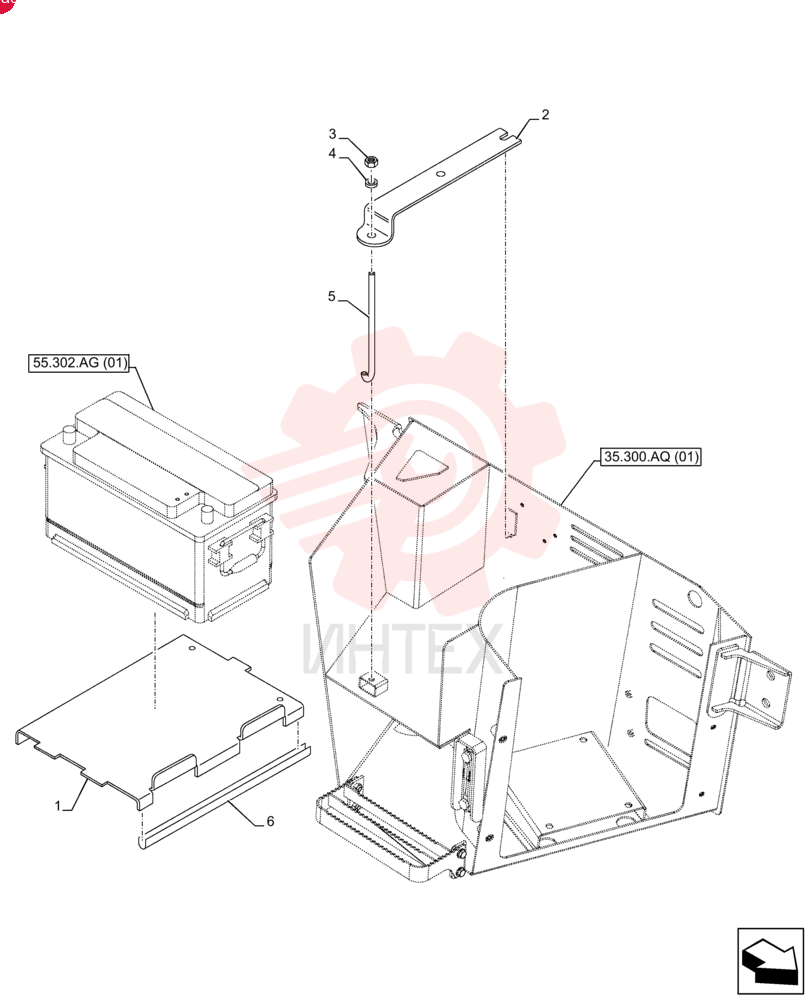

SUPPORT 47763560 (1)

SUPPORT 47763560 (1)

SUPPORT 47763560 (1)

1 47763560

  • 47763560 - SUPPORT

2 47573698

  • 47573698 - BRACKET

3 9706690

  • 9706690 - NUT
  • M8 x 1.25
  • Cl 8

4 86624184

  • 86624184 - WASHER
  • 9mm ID x 16mm OD x 1.6mm Thk

5 47573898

  • 47573898 - BOLT
  • M8 x 1.25 x 179mm
  • "J" Style

6 F42827

  • F42827 - TRIM
  • 2946.4mm L
