(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

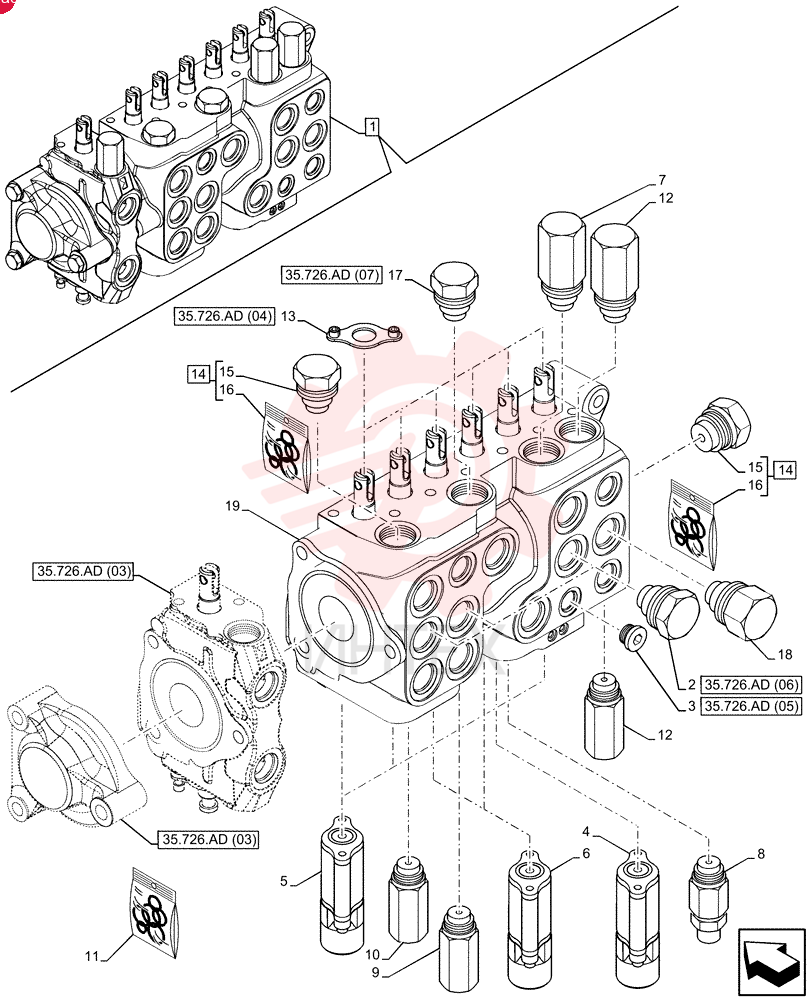

VALVE 47579592 (3)

VALVE 47579592 (3)

VALVE 47579592 (3)

1 47579592

  • 47579592 - VALVE

2 87426238

  • 87426238 - VALVE
  • CHECK

3 87428486

  • 87428486 - VALVE
  • CHECK

4 84296862

  • 84296862 - KIT

5 84296859

  • 84296859 - KIT

6 84308749

  • 84308749 - KIT

7 47520613

  • 47520613 - VALVE PRESSURE RELIE
  • 195 Bar

8 47520614

  • 47520614 - VALVE PRESSURE RELIE
  • 317 Bar

9 47556597

  • 47556597 - VALVE PRESSURE RELIE
  • 241 Bar

10 47537935

  • 47537935 - VALVE PRESSURE RELIE
  • 221 Bar

11 47556611

  • 47556611 - SEAL KIT

12 47520547

  • 47520547 - VALVE PRESSURE RELIE
  • 205 Bar

13 87541939

  • 87541939 - GASKET KIT

14 81868381

  • 81868381 - CHECK VALVE
  • 1-1/16" - 12

15 NSS

  • NSS - NOT SOLD SEPARAT

16 87455580

  • 87455580 - O-RING KIT

17 83981068

  • 83981068 - STOP PLUG
  • Hex
  • 1/16 - 12 UN

18 47538478

  • 47538478 - CHECK VALVE

19 NSS

  • NSS - NOT SOLD SEPARAT
