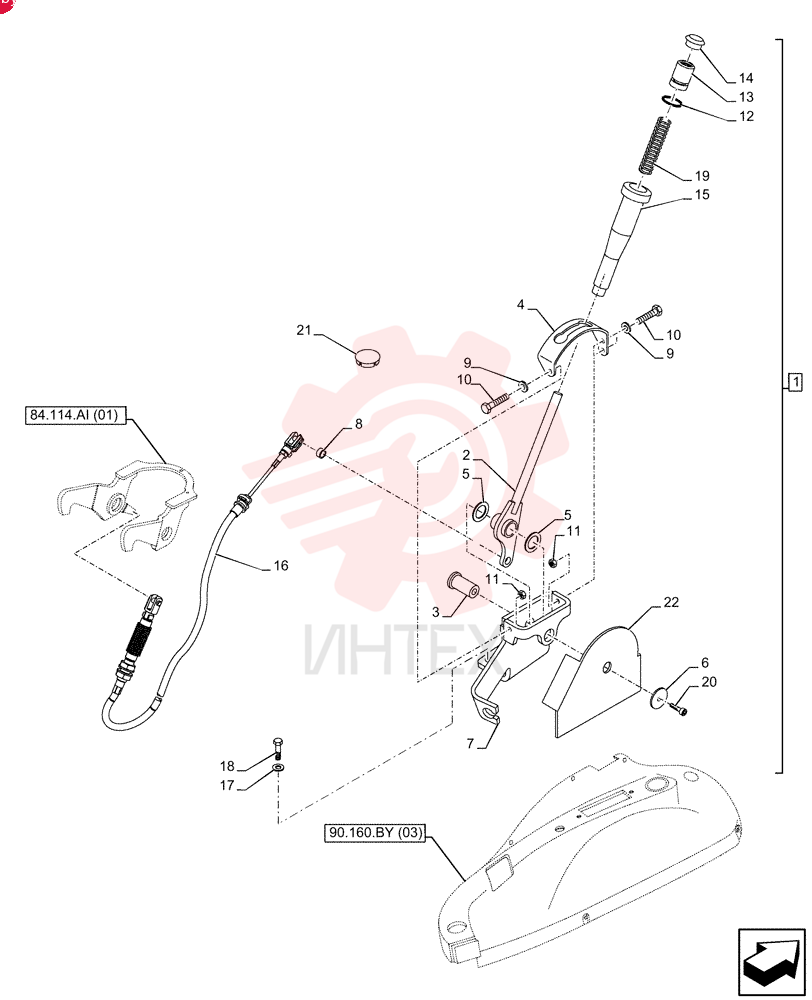

LEVER 47744171 (2)
1 47744171
- 47744171 - LEVER
2 47683283
- 47683283 - LEVER
3 47683263
- 47683263 - PIN
- 16mm OD x 40mm L
4 47744170
- 47744170 - BRACKET
5 47693222
- 47693222 - BUSHING
- 16mm ID x 24mm OD x 12mm L
6 86624183
- 86624183 - WASHER
- 6.6mm ID x 25mm OD x 1.6mm Thk
7 NSS
- NSS - NOT SOLD SEPARAT
8 47693234
- 47693234 - BUSHING
- 8mm ID x 10mm OD x 6mm L
9 11181574
- 11181574 - BELLEVILLE WASHER
- M5 Bolt Size x 11mm OD x 0.9mm Thk
10 86050276
- 86050276 - BOLT
- Hex
- M5 x 16mm
- Cl 8.8
- Full Thd
11 15896414
- 15896414 - NUT
- M5
- Cl 8
12 87324529
- 87324529 - O-RING
- 15.54mm ID
13 85821200
- 85821200 - PUSH BUTTON
14 87324525
- 87324525 - PLUG
- Red
15 87324512
- 87324512 - HANDLE
16 47705440
- 47705440 - CABLE
- 2055mm L
17 11193874
- 11193874 - BELLEVILLE WASHER
- M8 Bolt Size x 16mm OD x 1.4mm Thk
18 16043624
- 16043624 - SCREW
- Hex
- M8 x 1.25 x 25mm
- Cl 8.8
- Full Thd
19 85821201
- 85821201 - SPRING
20 63582
- 63582 - HEX SOC SCREW
- M6 x 12mm
- Cl 8.8
21 79111978
- 79111978 - PLUG
- 23mm OD
22 47730207
- 47730207 - BRACKET
