New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

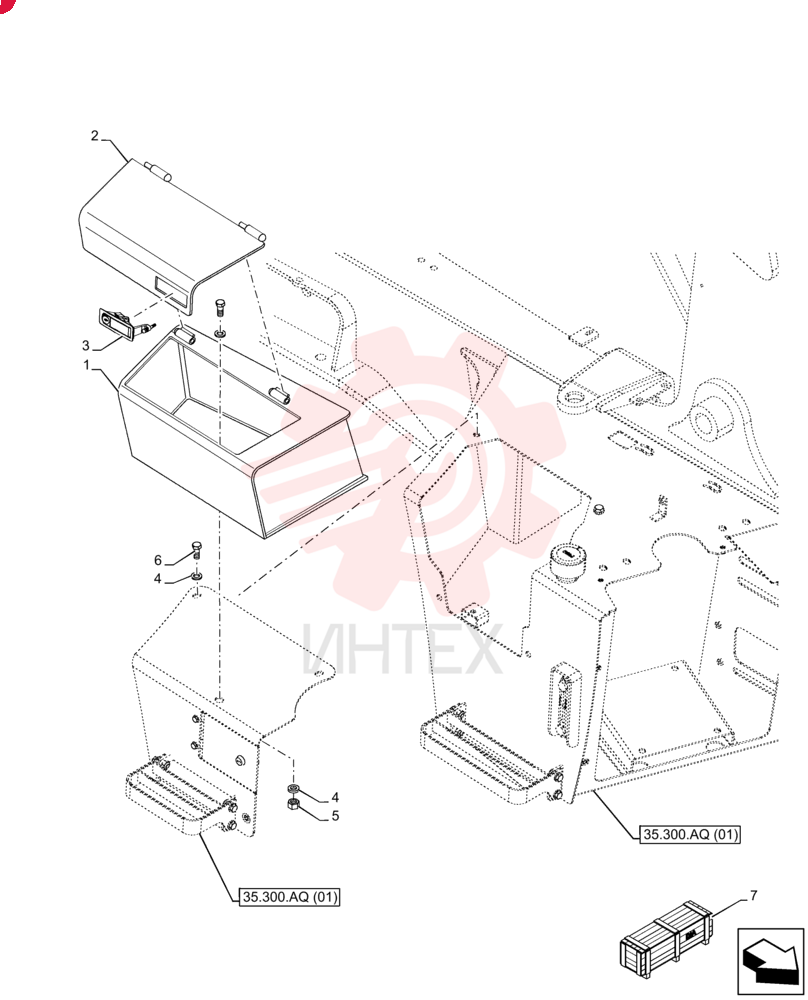

TOOL BOX 47690064

TOOL BOX 47690064

TOOL BOX 47690064

1 47690064

  • 47690064 - TOOL BOX

2 47690044

  • 47690044 - ANTI-SKID STRIP

3 47632454

  • 47632454 - LATCH

4 86625255

  • 86625255 - WASHER
  • 13.3mm ID x 24.5mm OD x 3mm Thk

5 412126

  • 412126 - NUT
  • M12 x 1.75

6 300389

  • 300389 - BOLT
  • M12 x 1.75 x 35mm
  • Cl 8.8

7 741875009

  • 741875009 - CONSTRUCTION DIA
