New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

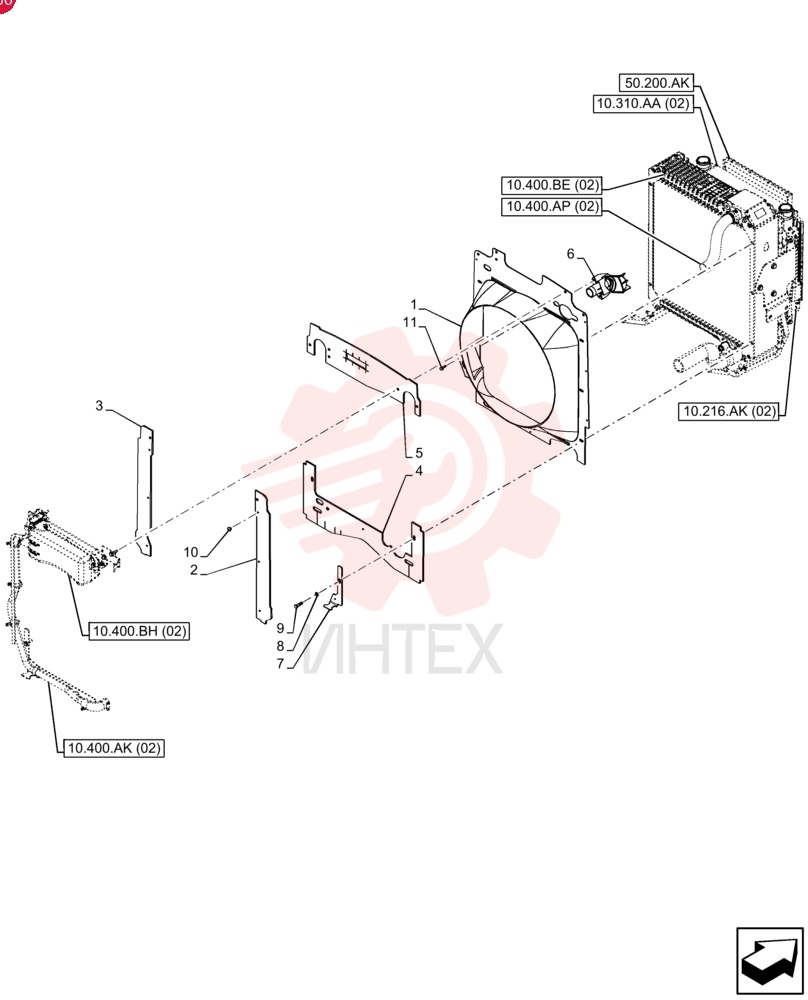

SHROUD 47615718 (1)

SHROUD 47615718 (1)

SHROUD 47615718 (1)

1 47615718

  • 47615718 - SHROUD

2 47609977

  • 47609977 - SEAL

3 47726486

  • 47726486 - SEAL

4 84539940

  • 84539940 - SEAL
  • 5mm Thk

5 47611709

  • 47611709 - SEAL
  • 5mm Thk

6 84185540

  • 84185540 - DUST CAP

7 87446081

  • 87446081 - RETAINING PLATE
  • 195mm x 62mm x 43mm L

8 140016

  • 140016 - WASHER
  • M8 x 16mm OD x 1.6mm Thk

9 43128

  • 43128 - BOLT
  • M8 x 1.25 x 30mm
  • Cl 8.8

10 87301355

  • 87301355 - RIVET
  • Pop
  • 3/16" x .575"

11 9804256

  • 9804256 - BOLT
  • Hex
  • M6 x 1 x 20mm
  • Full Thd
  • Cl 8.8
