(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

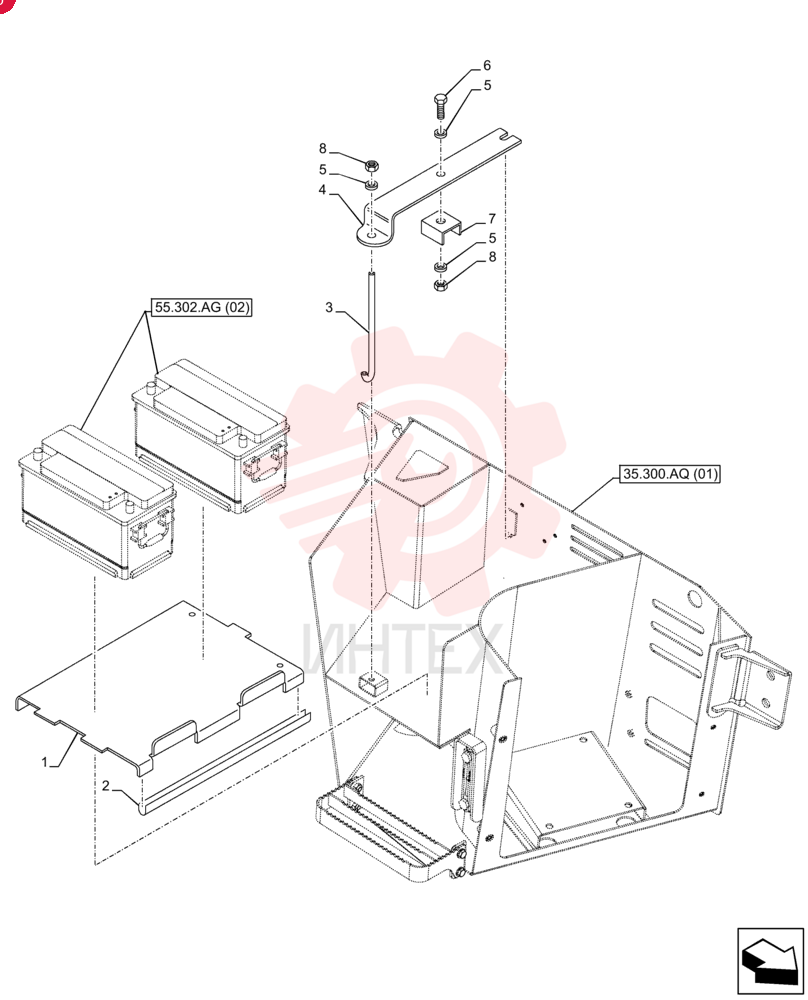

SUPPORT 47763560 (2)

SUPPORT 47763560 (2)

SUPPORT 47763560 (2)

1 47763560

  • 47763560 - SUPPORT

2 D60180

  • D60180 - STRIP

3 47573898

  • 47573898 - BOLT
  • M8 x 1.25 x 179mm
  • "J" Style

4 47573698

  • 47573698 - BRACKET

5 86624184

  • 86624184 - WASHER
  • 9mm ID x 16mm OD x 1.6mm Thk

6 43127

  • 43127 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8

7 47739111

  • 47739111 - PLATE

8 9706690

  • 9706690 - NUT
  • M8 x 1.25
  • Cl 8
