(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

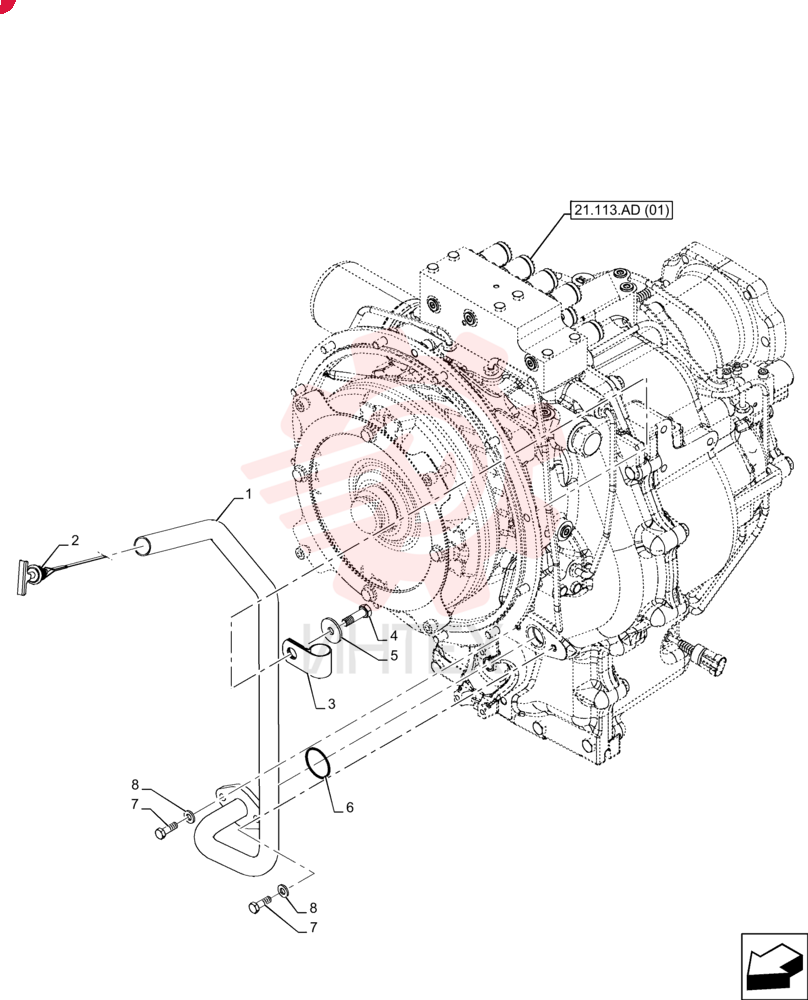

TUBE 47592695

TUBE 47592695

TUBE 47592695

1 47592695

  • 47592695 - TUBE

2 87601345

  • 87601345 - DIPSTICK
  • 824mm L

3 D35908

  • D35908 - CLAMP
  • 1" Clamping pipe

4 86624978

  • 86624978 - BOLT
  • Hex
  • M10 x 35mm
  • Cl 10.9
  • Full Thd

5 12644301

  • 12644301 - WASHER
  • M10 x 35 x 3

6 272218

  • 272218 - O-RING
  • 0.103" Thk x 1.424" ID
  • -127
  • Cl 5
  • 75 Duro

7 43127

  • 43127 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8

8 87655042

  • 87655042 - SPECIAL WASHER
  • 8.8mm ID x 17.5mm OD x 2.2mm Thk
