(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

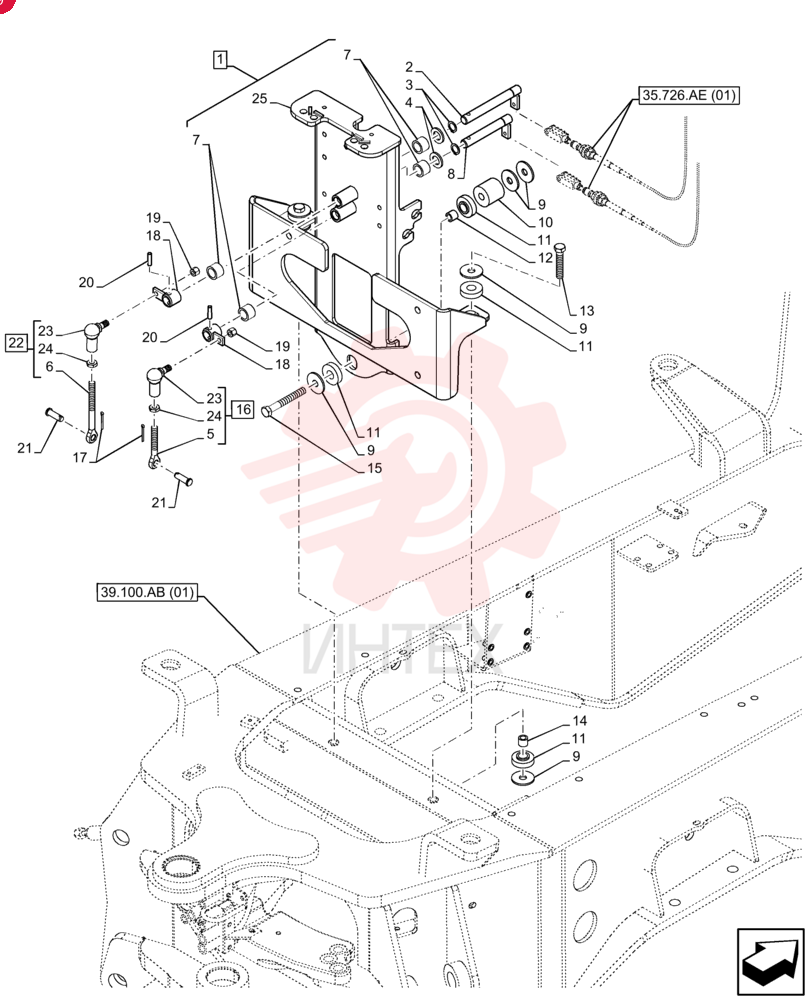

SUPPORT 47703707

SUPPORT 47703707

SUPPORT 47703707

1 47703707

  • 47703707 - SUPPORT

2 84410865

  • 84410865 - PIN
  • 16mm OD x 140.8mm L

3 83911366

  • 83911366 - E-RING
  • M16 x 1.16mm Thk

4 14496901

  • 14496901 - WASHER
  • 17mm ID x 30mm OD x 3mm Thk

5 84160720

  • 84160720 - THREADED ROD
  • M8 x 59.3mm L

6 84160722

  • 84160722 - THREADED ROD
  • M8 x 91.2mm L

7 85802494

  • 85802494 - BUSHING
  • 16.09mm ID x 19.13mm OD x 8mm L

8 84410866

  • 84410866 - PIN
  • 16mm OD x 117.8mm L

9 85802618

  • 85802618 - SEALING WASHER
  • 13mm ID x 41mm OD x 3mm Thk

10 85820170

  • 85820170 - SPACER
  • 13mm ID x 40mm OD x 38mm L

11 87348165

  • 87348165 - ISOLATOR

12 85820172

  • 85820172 - BUSHING
  • 12.5mm ID x 16.5mm OD x 22mm L

13 9706693

  • 9706693 - BOLT
  • M12 x 60mm
  • Cl 8.8

14 85817252

  • 85817252 - BUSHING
  • 12.5mm ID x 16.5mm OD x 24mm L

15 86508581

  • 86508581 - BOLT
  • Hex
  • M12 x 90mm
  • Cl 8.8

16 84161601

  • 84161601 - THREADED ROD
  • M8 x 49.3mm L

17 432-612

  • 432-612 - COTTER PIN
  • 3/32" x 3/4"

18 84161411

  • 84161411 - CRANK

19 87597953

  • 87597953 - NUT
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 8
  • ZND

20 85805616

  • 85805616 - PIN
  • 6.35mm OD x 25.4mm L

21 D149287

  • D149287 - PIN
  • 7.9mm OD x 26.72mm L

22 84161602

  • 84161602 - THREADED ROD
  • M8 x 81.2mm L

23 85804375

  • 85804375 - BALL JOINT
  • M8

24 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

25 NSS

  • NSS - NOT SOLD SEPARAT
