New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

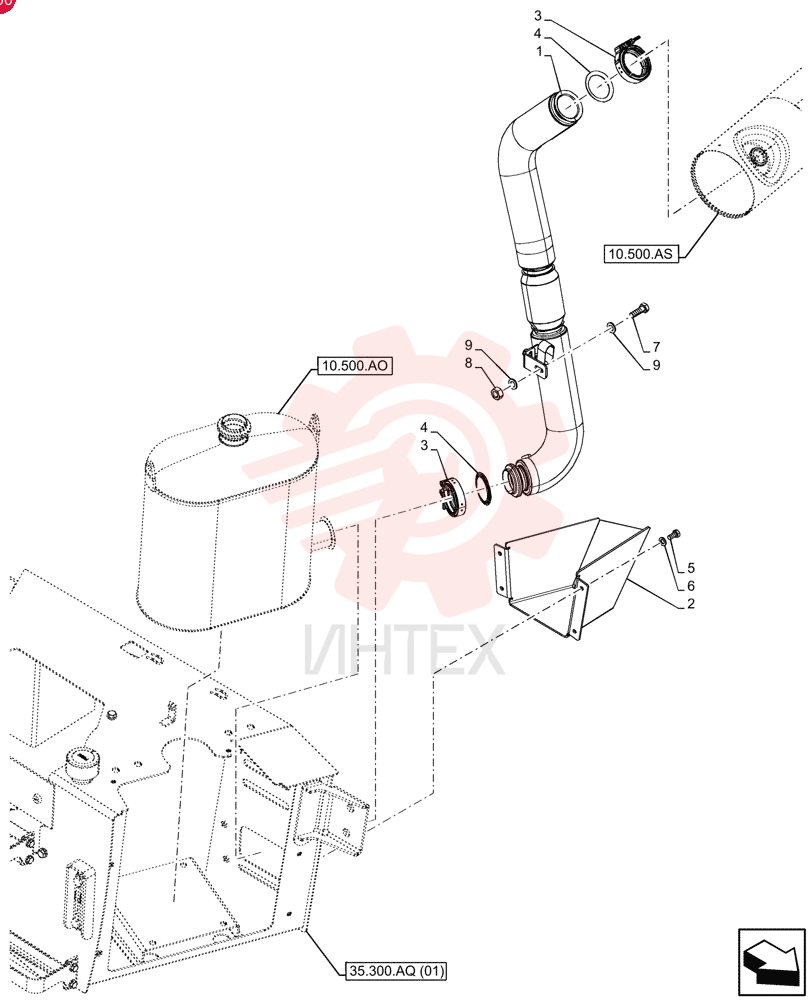

TUBE 47609881

TUBE 47609881

TUBE 47609881

1 47609881

  • 47609881 - TUBE

2 47802563

  • 47802563 - GUARD

3 47468193

  • 47468193 - COLLAR CLAMP
  • 84.5mm ID

4 47489270

  • 47489270 - GASKET
  • 58.9mm ID

5 120103

  • 120103 - BOLT
  • M8 x 1.25 x 16mm
  • Cl 8.8

6 86624184

  • 86624184 - WASHER
  • 9mm ID x 16mm OD x 1.6mm Thk

7 43139

  • 43139 - BOLT
  • M10 x 1.5 x 25mm
  • Cl 8.8

8 86500689

  • 86500689 - NUT
  • M10 x 1.5
  • Cl 10

9 86639325

  • 86639325 - WASHER
  • 10.8mm ID x 24.5mm OD x 3mm Thk
