New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

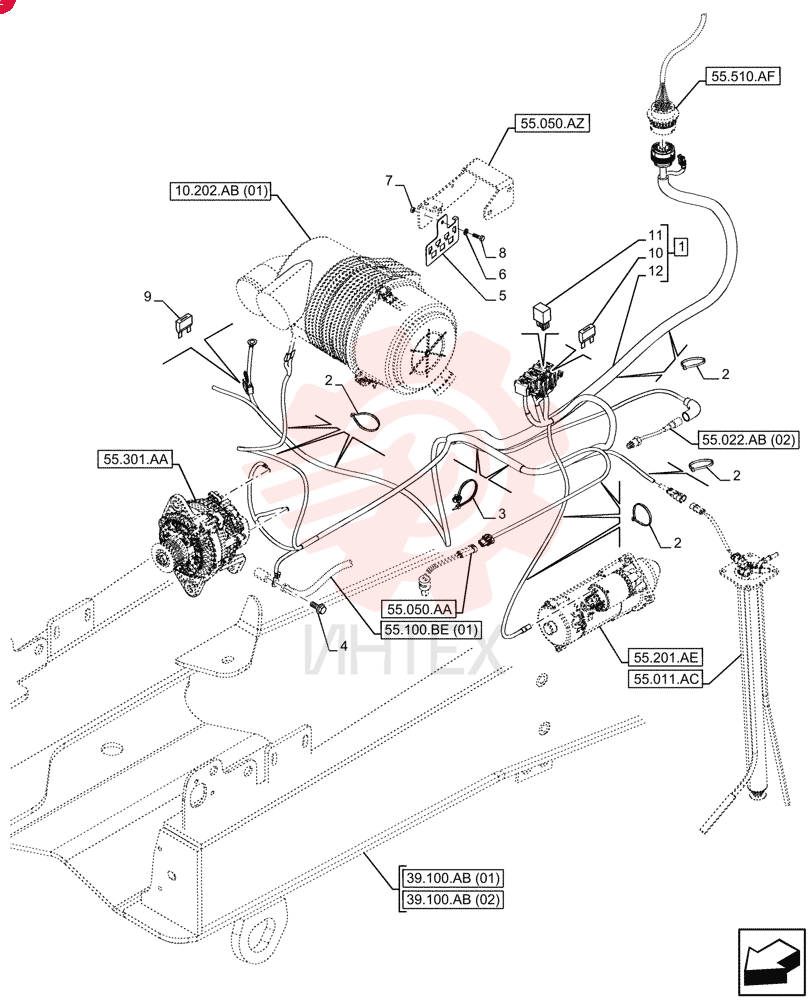

WIRE HARNESS 47650248

WIRE HARNESS 47650248

WIRE HARNESS 47650248

1 47650248

  • 47650248 - WIRE HARNESS

2 14560187

  • 14560187 - COLLAR
  • 199mm L

3 87567356

  • 87567356 - CLAMP
  • 200mm L x 4.6mm W x 1.2mm Thk

4 86705429

  • 86705429 - BOLT
  • M10 x 34.2mm OAL
  • Full Thd
  • Cl 10.9

5 47648565

  • 47648565 - SUPPORT

6 14496421

  • 14496421 - WASHER
  • 6.4mm ID x 12.5mm OD x 1.6mm Thk

7 86500688

  • 86500688 - NUT
  • Hex
  • M6 x 1.0
  • Cl 10.9

8 120100

  • 120100 - BOLT
  • M6 x 20mm
  • Cl 8.8

9 87693742

  • 87693742 - FUSE
  • 5A

10 87689644

  • 87689644 - FUSE
  • 30A
  • Blade/Uni

11 72274965

  • 72274965 - RELAY
  • 12V
  • 70 Amp

12 NSS

  • NSS - NOT SOLD SEPARAT
