New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

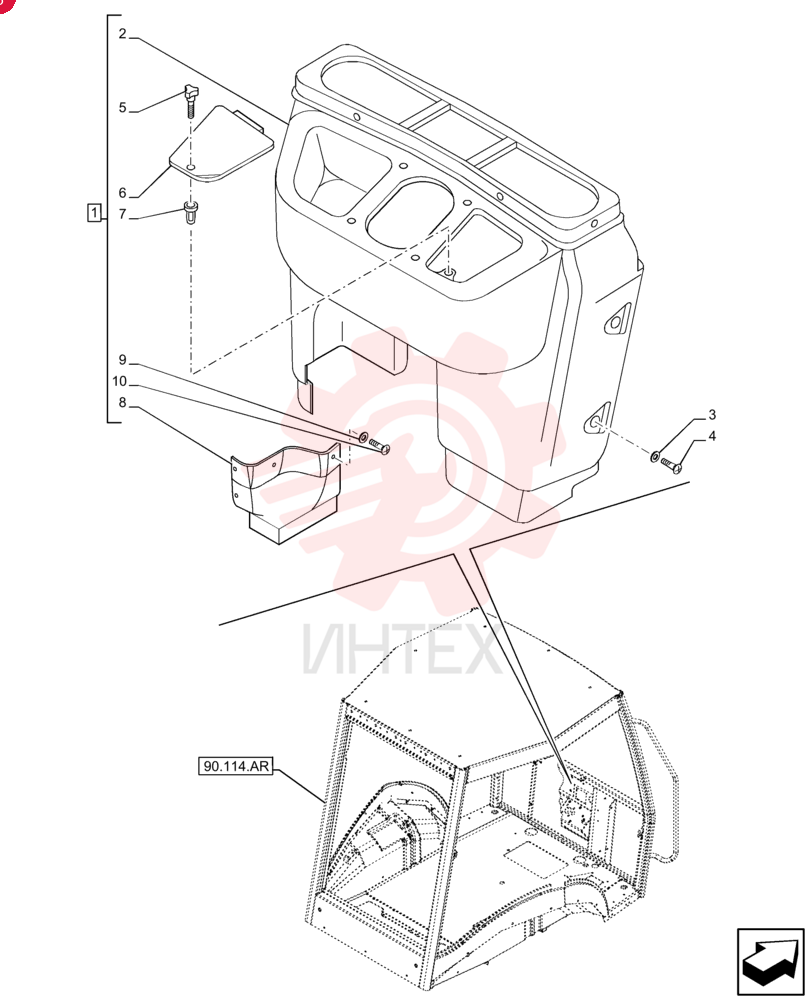

PANEL 47708240

PANEL 47708240

PANEL 47708240

1 47708240

  • 47708240 - PANEL

2 47708241

  • 47708241 - PANEL

3 79089592

  • 79089592 - WASHER
  • 6mm ID x 24mm OD x 5mm Thk

4 13311214

  • 13311214 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 20mm
  • Cl 5.8
  • Full Thd

5 85805323

  • 85805323 - KNOB

6 85806089

  • 85806089 - COVER

7 85804750

  • 85804750 - THREADED BUSHING
  • M5 x 9.7mm OD x 20mm L

8 84165560

  • 84165560 - TOP COVER

9 11181474

  • 11181474 - BELLEVILLE WASHER
  • M4 Bolt Size x 9mm OD x 0.7mm Thk

10 15963201

  • 15963201 - SELF-TAP SCREW
  • Posidriv Pan Hd
  • M4 x 2.5 x 14mm
  • Hi-Low
