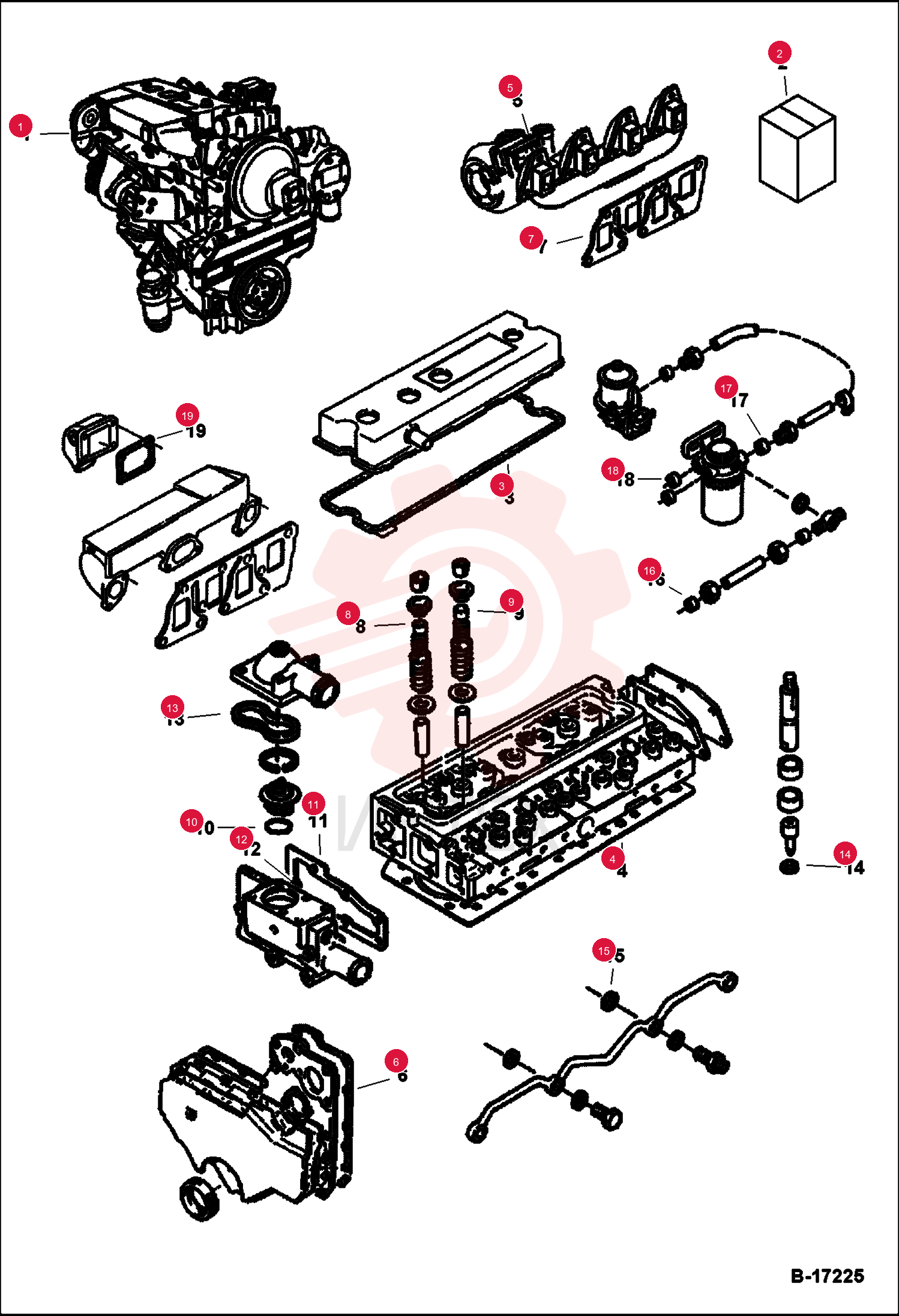

KIT, BLOCK LONG 6686580

KIT, BLOCK LONG 6686580

KIT, BLOCK LONG 6686580

1 6686580

  • 6686580 - KIT
  • BLOCK LONG
  • W/O camshaft

2 6672270

  • 6672270 - BLOCK
  • SHORT ENG
  • engine - includes plugs
  • cylinder block
  • liner
  • crankshaft
  • connecting rod
  • main bearing
  • big end bearing
  • thrust washer
  • seal & housing

3 6669595REM

  • 6669595REM - ENGINE
  • PERKINS 1004-40T
  • W/O starter
  • alternator
  • flywheel
  • pump mount or turbo

4 6672167

  • 6672167 - KIT
  • GASKET
  • top - W/Ref. 3-20

5 6672781

  • 6672781 - GASKET
  • - rocker arm cover

6 6672182

  • 6672182 - HEADGASKT
  • - head

7 6668510

  • 6668510 - GASKET
  • - turbo mount - Was 6911978

8 6670915

  • 6670915 - GASKET
  • - damper

9 6670967

  • 6670967 - GASKET
  • - manifold

10 6670893

  • 6670893 - SEAL
  • - intake valve seal

11 6671645

  • 6671645 - SEAL
  • - exhaust valve seal - Was 6670898

12 6670950

  • 6670950 - O-RING
  • - thermostat

13 6670945

  • 6670945 - GASKET
  • - thermostat housing

14 6677709

  • 6677709 - O-RING
  • - thermostat housing

15 6674292

  • 6674292 - O-RING
  • - water outlet

16 6670929

  • 6670929 - WASHER
  • - fuel injector

17 6670932

  • 6670932 - WASHER
  • - fuel pipe

18 3490132

  • 3490132 - SEAL
  • - union

19 3727375

  • 3727375 - FERRULE
  • - fuel filter

20 6672312

  • 6672312 - OLIVE
  • - fuel filter

21 6671011

  • 6671011 - GASKET
  • - outlet
