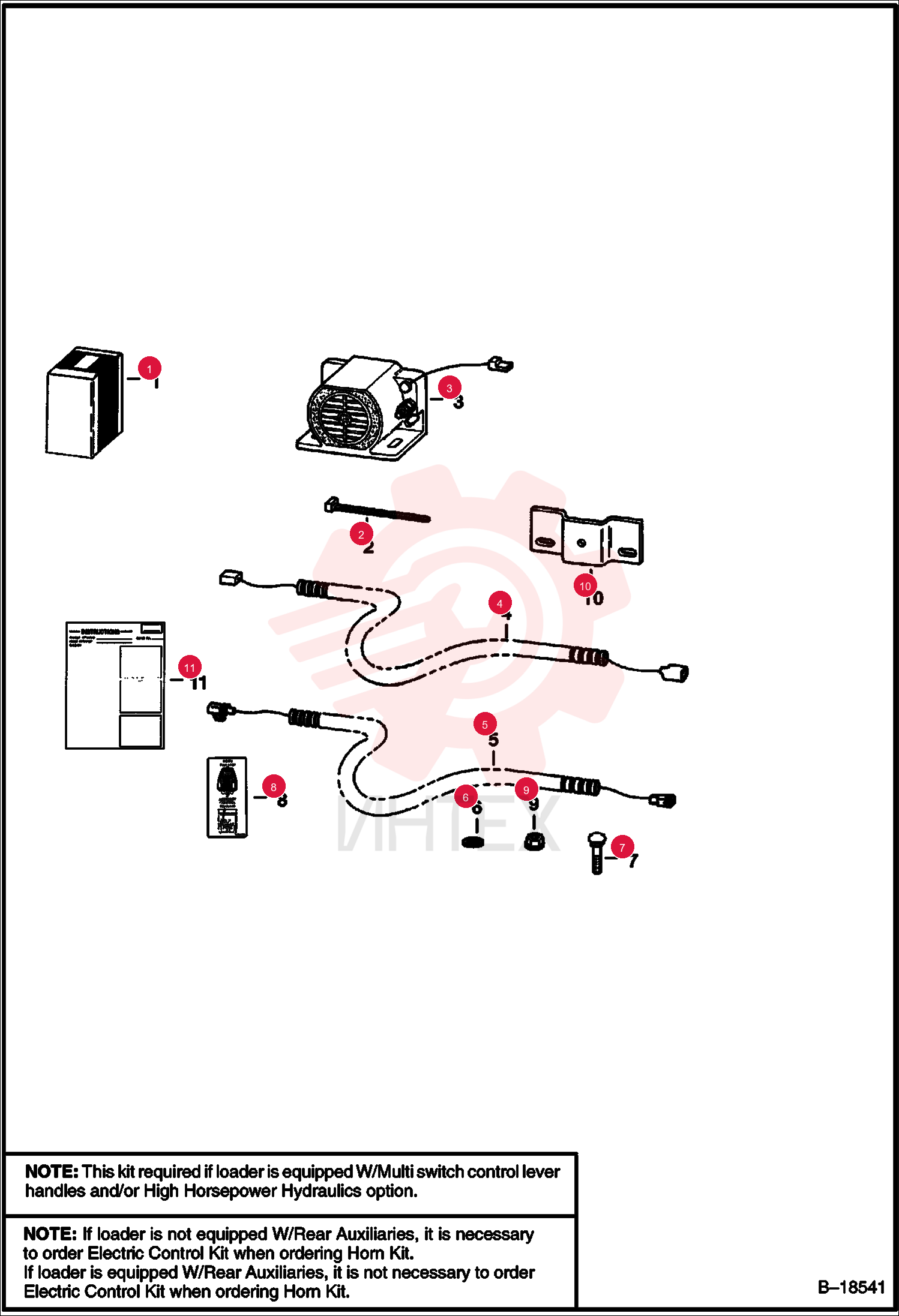

HORN KIT 6703162

HORN KIT 6703162

HORN KIT 6703162

1 6703162

  • 6703162 - HORN KIT
  • Ref. 2-11 - SEE NOTE

2 6610510

  • 6610510 - STRAP
  • TIE 10

3 6660294

  • 6660294 - ALARM HORN

4 6701961

  • 6701961 - HARNESS
  • 113" (2870 mm) long

5 6704408

  • 6704408 - HARNESS
  • 54" (1372 mm) long

6 25E13

  • 25E13 - WASHER FLAT PLAIN

7 84G2516

  • 84G2516 - SCREW THD ROLLING TT

8 6703727

  • 6703727 - DECAL
  • horn/aux

9 59D4

  • 59D4 - NUT LOCK HEX PT

10 6704641

  • 6704641 - MOUNT HORN

11 6720761

  • 6720761 - INSTRUCTIONS
  • for horn kit & electrical controls kit
