Bobcat
/
963
/

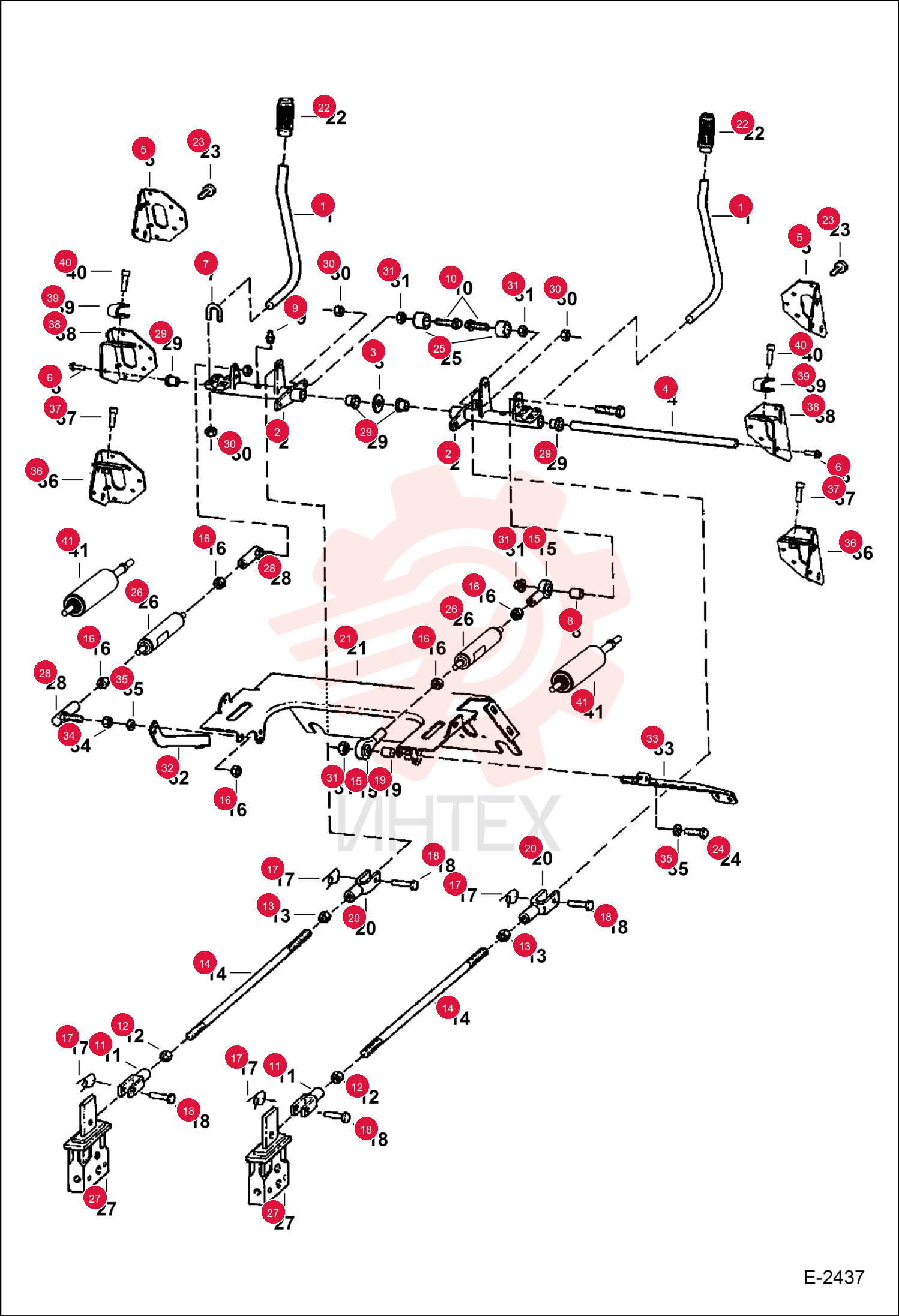

LEVER, STEERING 6702543

LEVER, STEERING 6702543

LEVER, STEERING 6702543

1 6702543

  • 6702543 - LEVER
  • STEERING

2 6713544

  • 6713544 - BELLCRANK

3 6599741

  • 6599741 - WASHER WAVE SPRING
  • wave

4 6716545

  • 6716545 - SHAFT
  • STRG
  • Use W/Ref. 6 - 45C000620B BOLT

5 6577230

  • 6577230 - BRACKET

6 17C616

  • 17C616 - BOLT 5

7 45C620

  • 45C620 - BOLT
  • Was 45C000624B

8 6732997

  • 6732997 - U-BOLT
  • Was 6700768

9 6708314

  • 6708314 - BUSHING
  • SPACER

10 6518200

  • 6518200 - FITTNG
  • GREASE 10

11 6705966

  • 6705966 - BOLT

12 2J6208

  • 2J6208 - YOKE

13 8D6

  • 8D6 - NUT HEX JAM

14 13D6

  • 13D6 - NUT LH HEX JAM
  • Was 8D000004B

15 6802725

  • 6802725 - STR LINK
  • steering - Was 6667802

16 6512954

  • 6512954 - ROD END
  • R.H. threads

17 86D6

  • 86D6 - NUT

18 6631418

  • 6631418 - RING RUE

19 4F6106

  • 4F6106 - PIN HARDENED CLEVIS

20 6705484

  • 6705484 - BUSHING

21 6671666

  • 6671666 - LH CLEVIS
  • L.H. thread - I.D. only

22 6707475

  • 6707475 - PANEL
  • non- AHC models - Was 6713877

23 6716681

  • 6716681 - SHIELD

24 6702621

  • 6702621 - HANDLE GRIP
  • not Use W/multi-switch handles

25 84G3712

  • 84G3712 - SCREW THD ROLLING TT

26 17C636

  • 17C636 - BOLT

27 6704435

  • 6704435 - CAM
  • WEAR

28 6599744

  • 6599744 - BALL JOINT

29 6703879

  • 6703879 - BUSHING
  • PLASTIC
  • W/tab

30 83D6

  • 83D6 - LKNUT HEX FLG GR8

31 95D6

  • 95D6 - NUT HEXAGON
  • Was 91D000006B

32 6703551

  • 6703551 - BRACE
  • L.H.

33 6708064

  • 6708064 - BRACE
  • R.H.

34 59D6

  • 59D6 - NUT LOCK HEX PT

35 25E18

  • 25E18 - WASHER FLAT PLAIN

36 93G824

  • 93G824 - BOLT
  • Was 73G824

37 7128601

  • 7128601 - BRACKET
  • LH

38 7128600

  • 7128600 - BRACKET
  • RH

39 7121779

  • 7121779 - PAD

40 73G828

  • 73G828 - BOLT

41 7188108

  • 7188108 - GAS SPRING
