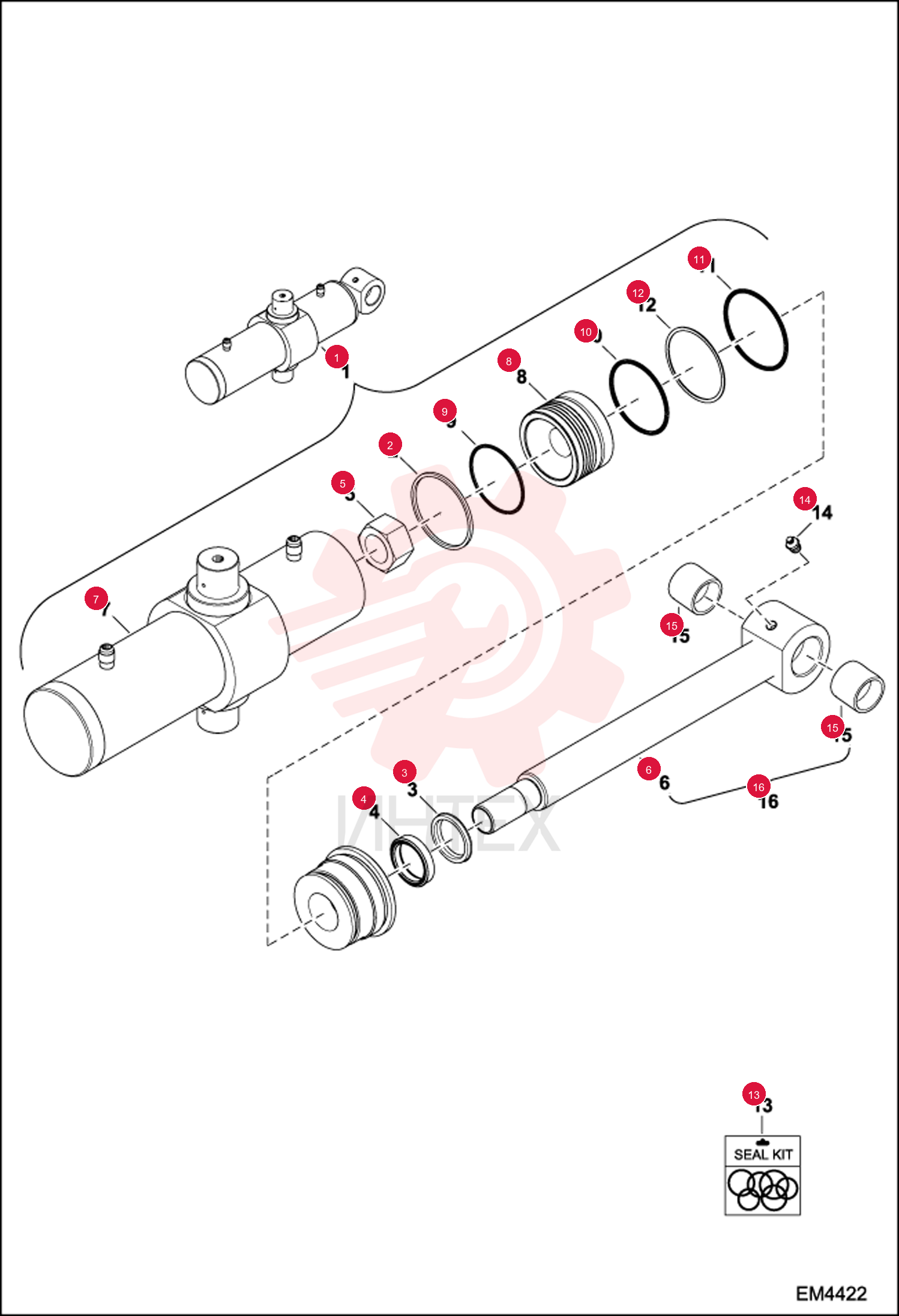

SWING CYLINDER 6817561

SWING CYLINDER 6817561

SWING CYLINDER 6817561

1 6817561

  • 6817561 - SWING CYLINDER
  • W/Ref. 2-12
  • 15
  • 16

2 54K30218

  • 54K30218 - 0-RING

3 6690707

  • 6690707 - WIPER
  • ROD CYL

4 6667326

  • 6667326 - SEAL

5 6810539

  • 6810539 - NUT

6 7125461

  • 7125461 - TUBE ASSEMBLY
  • W/Ref. 11

7 7102223

  • 7102223 - PISTON

8 947088

  • 947088 - RING
  • BACK-UP

9 54K40224

  • 54K40224 - O-RING
  • Was 25K40224

10 54K40300

  • 54K40300 - O-RING

11 73K232

  • 73K232 - RING
  • BACK-UP

12 7135547

  • 7135547 - KIT
  • SEAL
  • W/Ref. 2
  • 4
  • 5
  • 9
  • 10
  • 12

13 10H25

  • 10H25 - FTG GREASE STRAIGHT

14 6651449

  • 6651449 - BEARING

15 6816916

  • 6816916 - SHAFT
  • W/Ref. 6
  • 15
