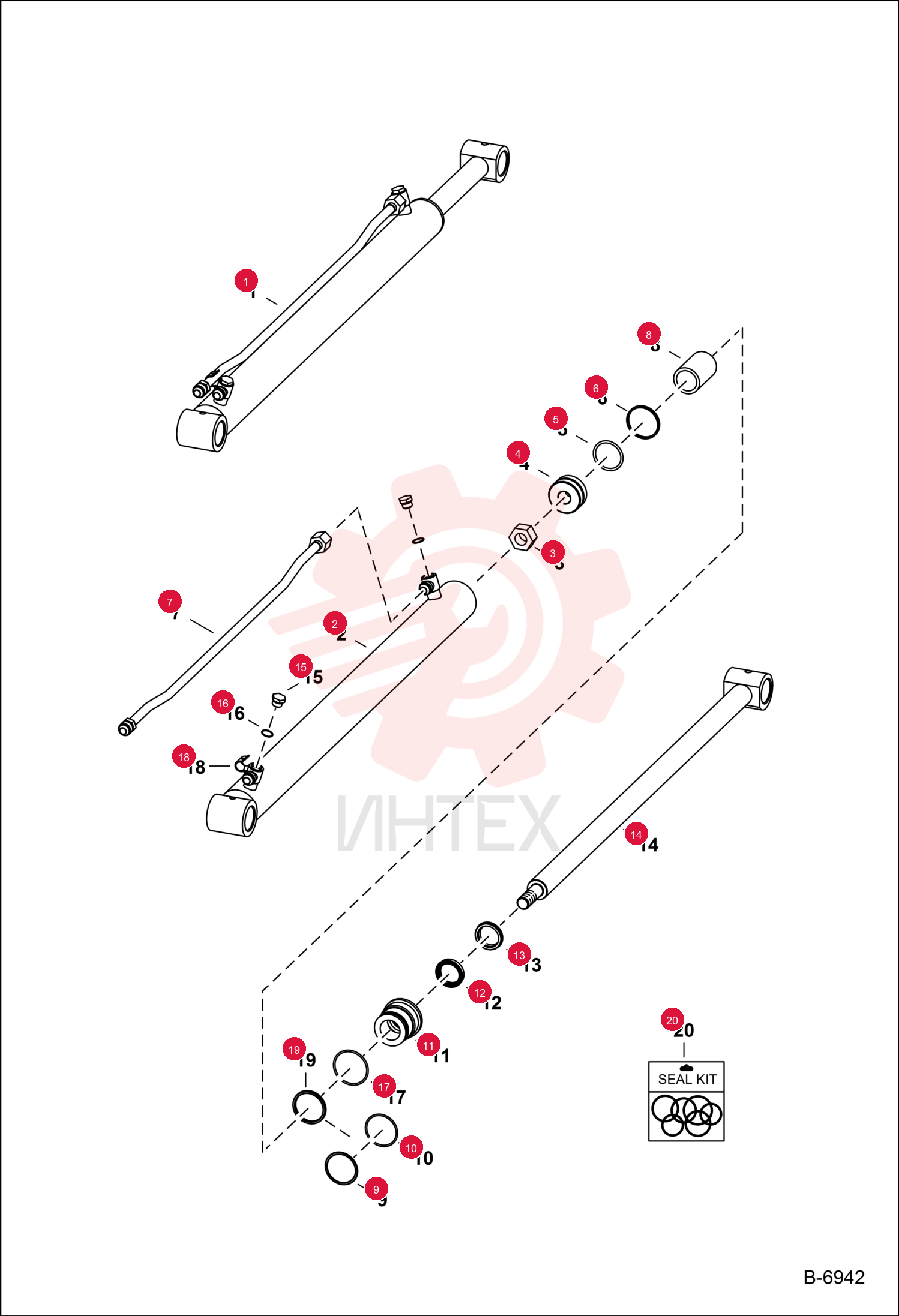

LIFT CYLINDER 6812771 (2)

LIFT CYLINDER 6812771 (2)

LIFT CYLINDER 6812771 (2)

1 6812771

  • 6812771 - LIFT CYLINDER

2 6587792

  • 6587792 - CASE
  • for 6808340 cylinder

3 6812773

  • 6812773 - CASE
  • for 6812771 cylinder

4 92D14

  • 92D14 - NUT

5 6808338

  • 6808338 - PISTON

6 6516231

  • 6516231 - SEAL

7 54K30118

  • 54K30118 - O-RING

8 6808626

  • 6808626 - TUBELINE

9 6808336

  • 6808336 - SPACER

10 54K40124

  • 54K40124 - O-RING

11 73K224

  • 73K224 - O-RING

12 6539323

  • 6539323 - HEAD
  • CYL LIFT

13 6667324

  • 6667324 - SEAL

14 6665208

  • 6665208 - WIPER
  • ROD CYL

15 6807141

  • 6807141 - ROD
  • chrome

16 6812170

  • 6812170 - PLUG
  • W/Ref. 16 - hex head - flat boss face

17 95K3

  • 95K3 - O'RING
  • tapered boss face

18 75K3

  • 75K3 - O-RING
  • flat boss face

19 82K136

  • 82K136 - O-RING
  • Was 58K136

20 6690910

  • 6690910 - CLAMP

21 7137770

  • 7137770 - KIT
  • SEAL CYLINDER
  • Ref. 3
  • 5
  • 6
  • 12
  • 13
  • 17
  • & 19 - Was 6804927
